Choose the 3-Pin LED Wiring Part Your Install Needs
Use these parts to extend connections or distribute the LED signal in compatible Lit FX chase / addressable LED lighting systems. Choose the accessory based on where the controller is mounted, how far the connection needs to reach, and how many lighting branches the install requires.
3-Pin LED Connections & Extension

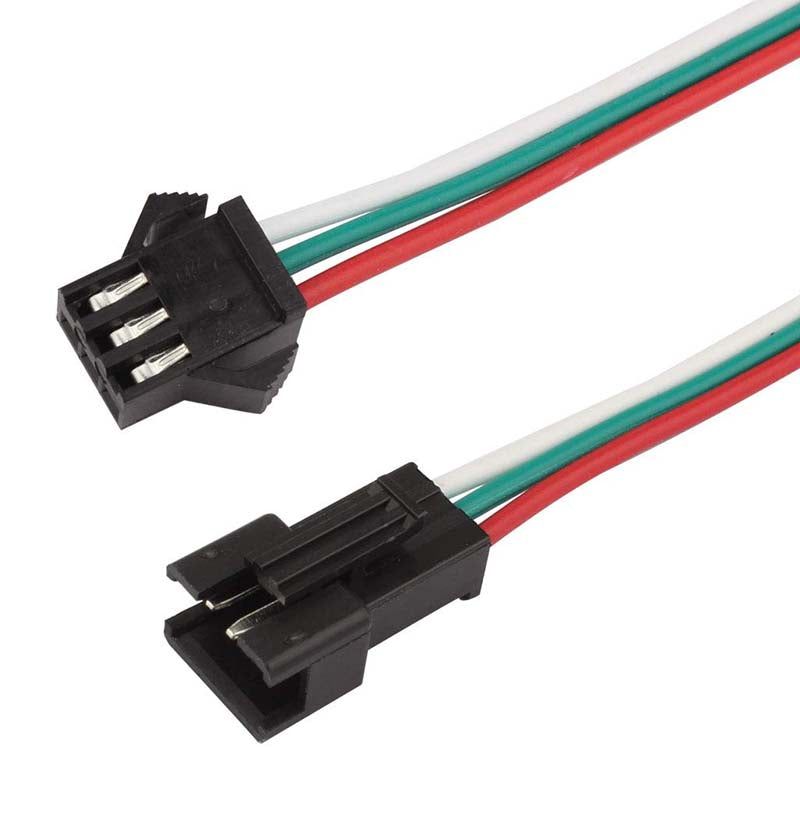

- 3-Pin LED Pigtail Pair — male and female pigtails for building or servicing a compatible 3-pin LED connection.

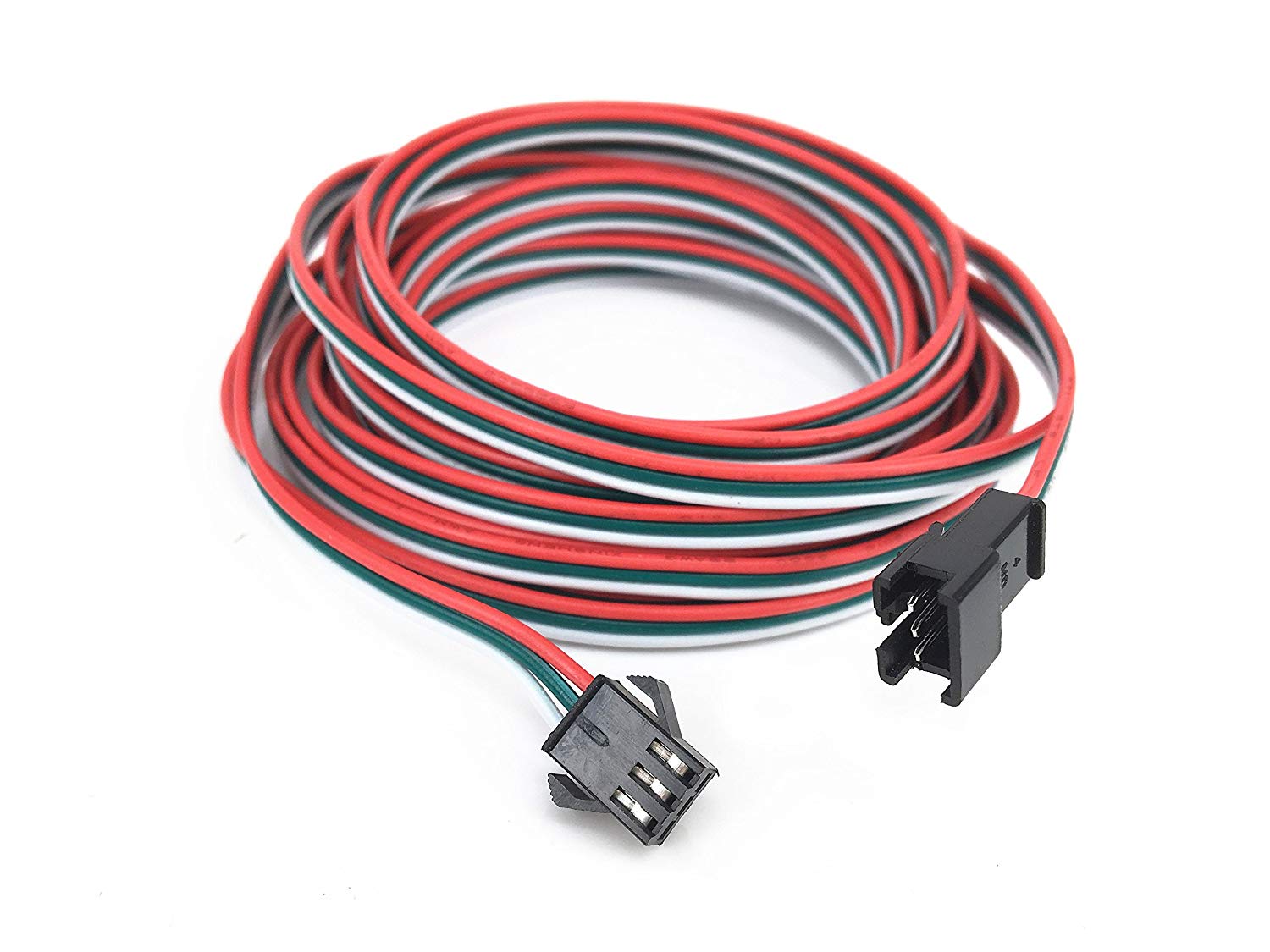

- 1.5-Foot 3-Pin LED Extension — adds distance between compatible 3-pin Lit FX components without having to extend each wire individually.
LED Signal Splitters & Repeaters

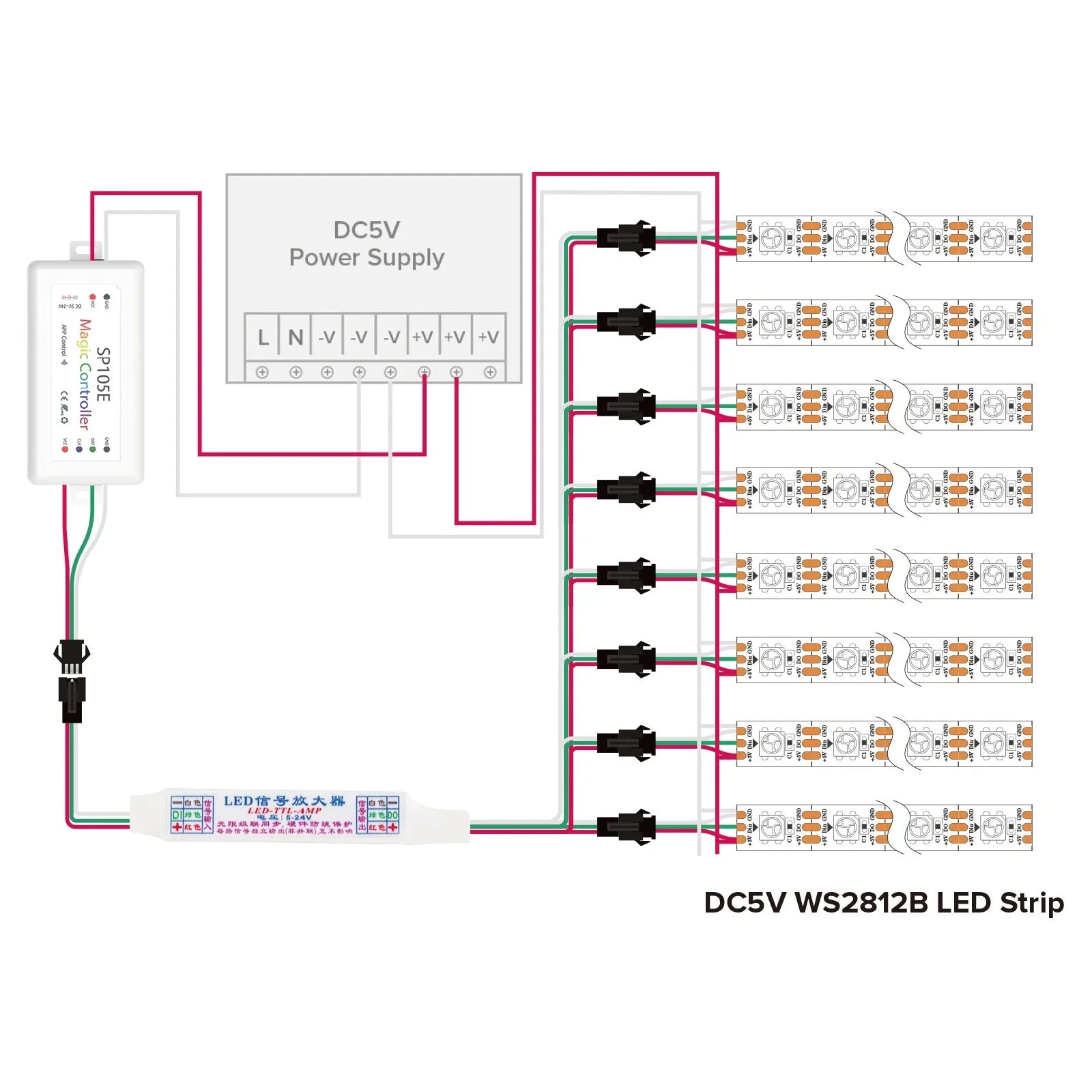

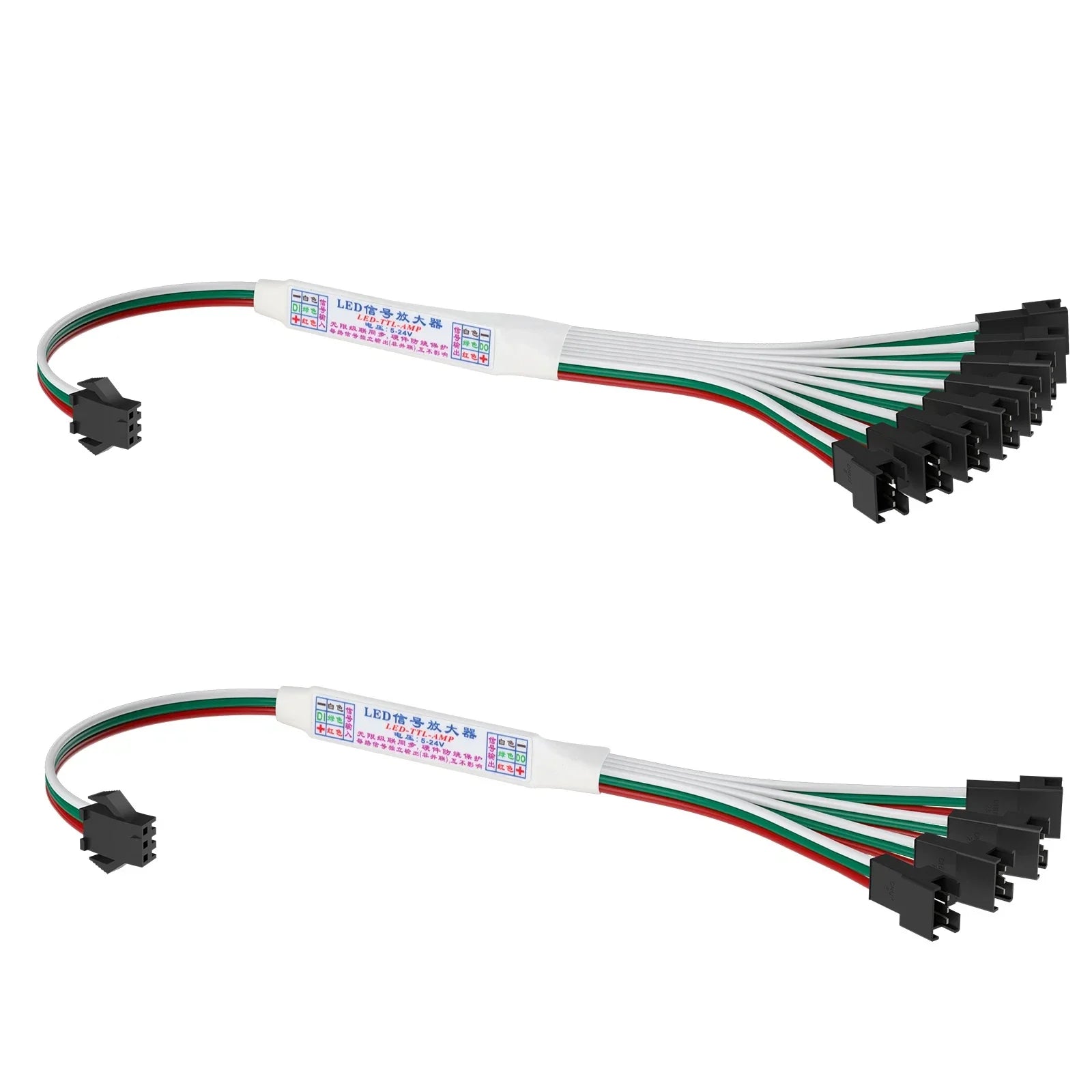

- 1-to-4 LED Signal Splitter / Amplifier — receives one compatible addressable LED signal and distributes it to four outputs.
- 1-to-8 LED Signal Splitter / Amplifier — receives one compatible addressable LED signal and distributes it to eight outputs.

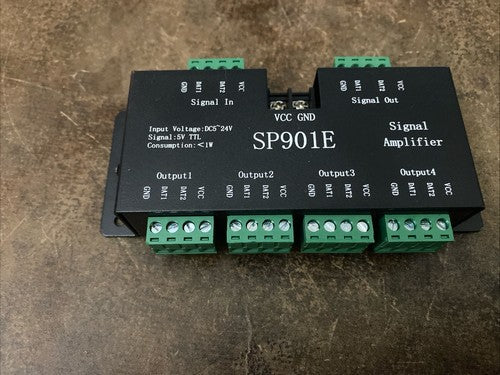

- SP901E LED Signal Repeater — signal amplifier/repeater for larger or more complex compatible addressable-lighting layouts.
Signal splitters and repeaters are not standalone LED controllers. They work with a compatible controller and do not replace properly sized LED power wiring.
Installation Notes
The 3-pin plugs and extension connections are not waterproof. Keep these connections protected from direct water and moisture. Mount signal accessories and electronics in a dry, protected location.
Verify LED voltage, data protocol, connector direction, and pinout before making connections. Signal accessories do not regulate the LED supply voltage, so the power supply must match the lighting system being connected. Do not rely on wire color alone.
