Description

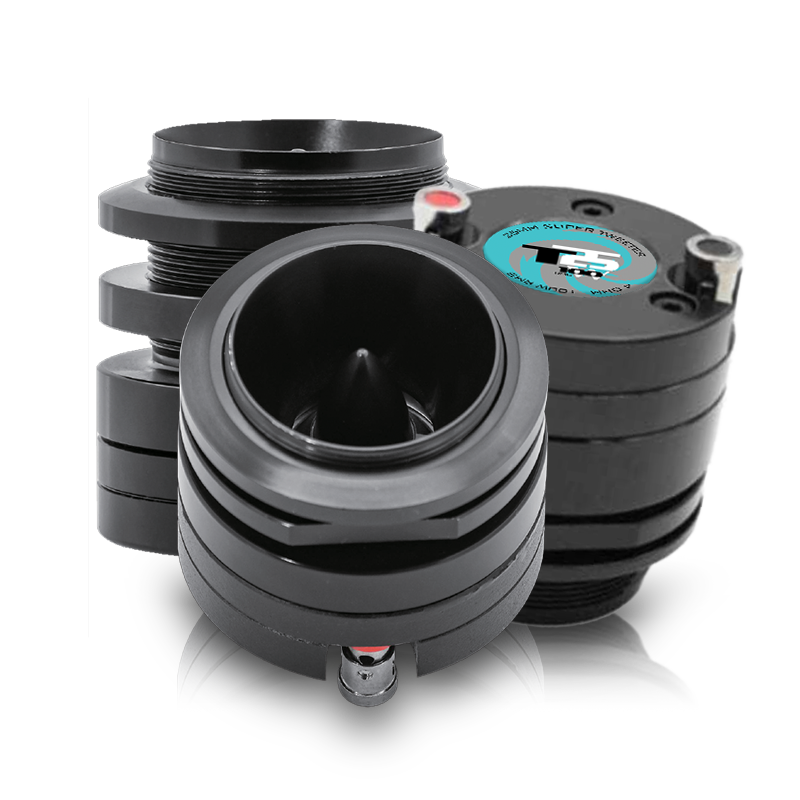

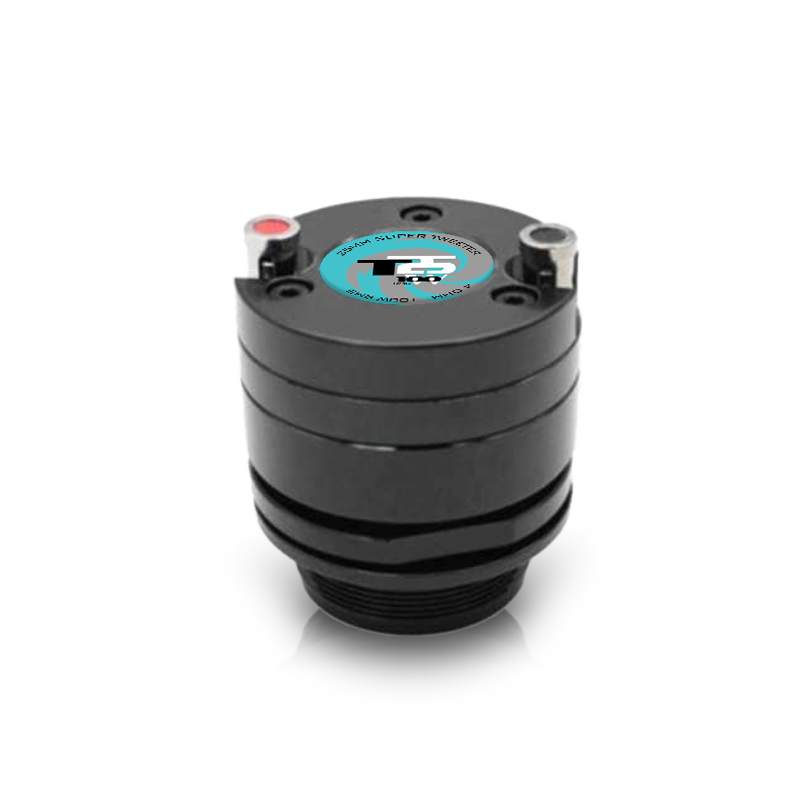

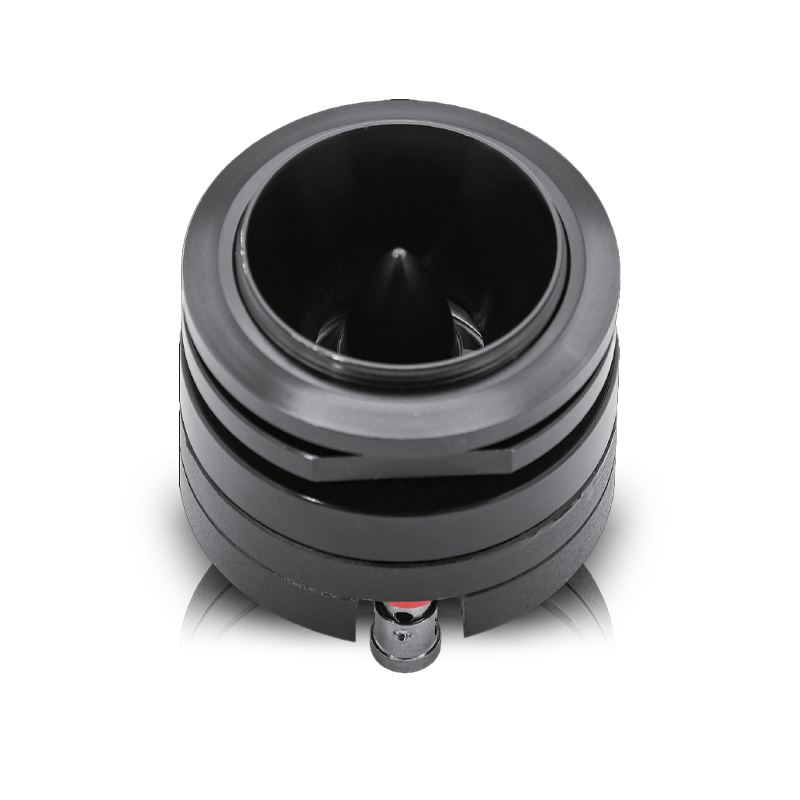

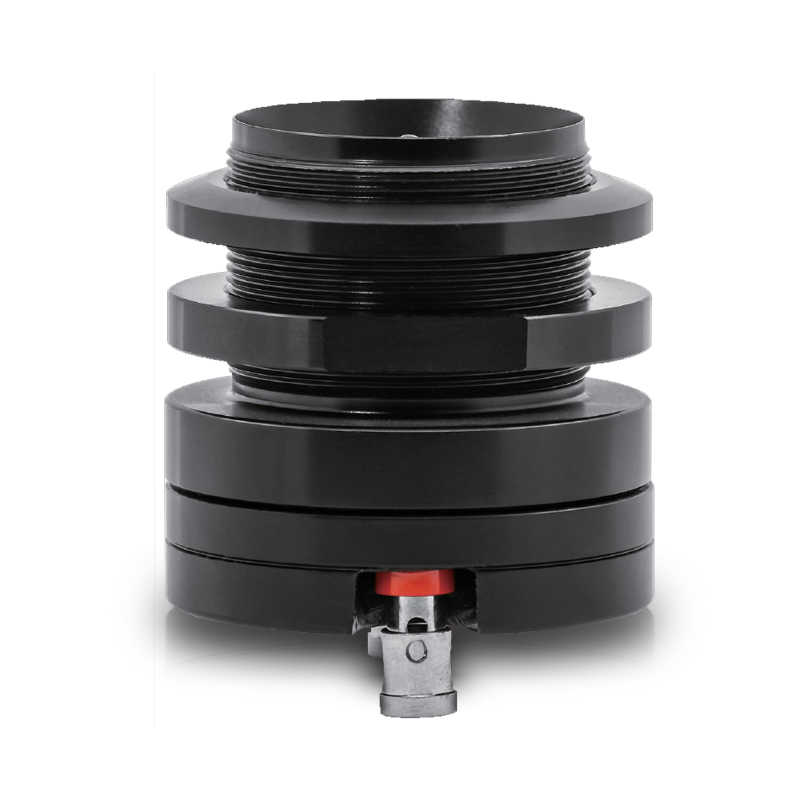

GALEFORCE AUDIO T25 SUPER TWEETER — 4 OHM
WHY THIS ONE MAKES SENSE
The T25 is for a high-output system where the midrange section has enough output that a basic high-frequency driver can no longer keep up. GaleForce rates the T25 at 104 dB sensitivity with a published 3 kHz–20 kHz frequency range. Its titanium diaphragm and 1-inch CCAW voice coil make it a dedicated upper-frequency driver, not a full-range speaker.
WHY 4 OHM
Choose the 4-ohm T25 when that impedance works with your tweeter count and amplifier channel plan. Two equal 4-ohm T25s wired in parallel present a 2-ohm final load. That can be useful on an amplifier rated for 2-ohm operation, but adding more tweeters changes the load quickly, so calculate the complete array before choosing the impedance.
HOW IT FITS A REAL SYSTEM
The T25 pairs naturally with a dedicated midrange such as the GaleForce G3. Use crossover or DSP control to decide where the midrange hands off to the tweeter. Do not use the published 3 kHz response limit as an automatic crossover point: GaleForce's crossover guide starts at 3.5–4 kHz for moderate power, 4–4.5 kHz for high-output use, and 4.5–5 kHz or higher for advanced competition use, all at 24 dB/octave.

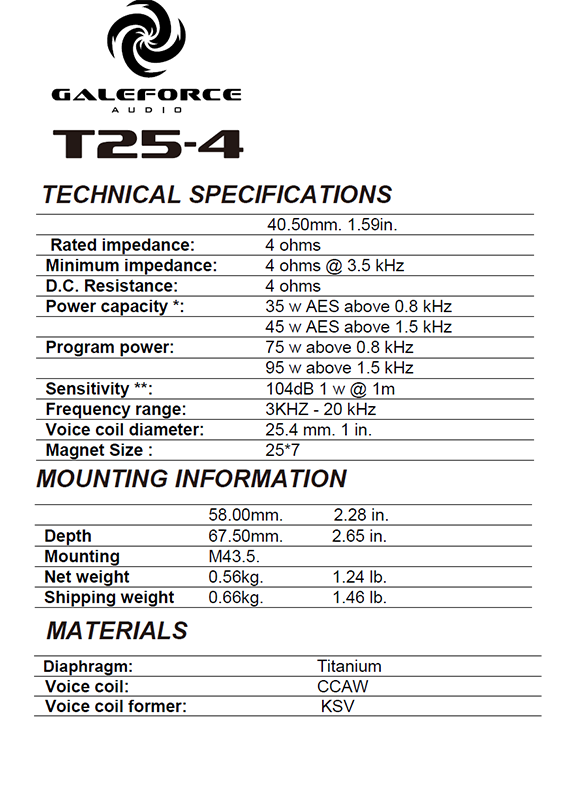

MANUFACTURER SPECIFICATIONS
• Model / MPN: T25-4
• Impedance: 4Ω
• Frequency Range: 3 kHz–20 kHz
• Sensitivity: 104 dB (1W/1m)
• Voice Coil Diameter: 25.4 mm / 1 in
• Power Capacity: 35W AES above 0.8 kHz; 45W AES above 1.5 kHz
• Program Power: 75W above 0.8 kHz; 95W above 1.5 kHz
• Depth: 67.5 mm / 2.65 in
• Diaphragm: Titanium
• Voice-Coil Construction: CCAW on KSV former
• Net Weight: 0.56 kg / 1.24 lb
• Quantity: Single tweeter
WHY THIS ONE MAKES SENSE
The T25 is for a high-output system where the midrange section has enough output that a basic high-frequency driver can no longer keep up. GaleForce rates the T25 at 104 dB sensitivity with a published 3 kHz–20 kHz frequency range. Its titanium diaphragm and 1-inch CCAW voice coil make it a dedicated upper-frequency driver, not a full-range speaker.
WHY 4 OHM
Choose the 4-ohm T25 when that impedance works with your tweeter count and amplifier channel plan. Two equal 4-ohm T25s wired in parallel present a 2-ohm final load. That can be useful on an amplifier rated for 2-ohm operation, but adding more tweeters changes the load quickly, so calculate the complete array before choosing the impedance.
HOW IT FITS A REAL SYSTEM
The T25 pairs naturally with a dedicated midrange such as the GaleForce G3. Use crossover or DSP control to decide where the midrange hands off to the tweeter. Do not use the published 3 kHz response limit as an automatic crossover point: GaleForce's crossover guide starts at 3.5–4 kHz for moderate power, 4–4.5 kHz for high-output use, and 4.5–5 kHz or higher for advanced competition use, all at 24 dB/octave.
MANUFACTURER SPECIFICATIONS
• Model / MPN: T25-4
• Impedance: 4Ω
• Frequency Range: 3 kHz–20 kHz
• Sensitivity: 104 dB (1W/1m)
• Voice Coil Diameter: 25.4 mm / 1 in
• Power Capacity: 35W AES above 0.8 kHz; 45W AES above 1.5 kHz
• Program Power: 75W above 0.8 kHz; 95W above 1.5 kHz
• Depth: 67.5 mm / 2.65 in
• Diaphragm: Titanium
• Voice-Coil Construction: CCAW on KSV former
• Net Weight: 0.56 kg / 1.24 lb
• Quantity: Single tweeter
OPEN-AIR / MOTORCYCLE / POWERSPORTS FIT
Where this fits in the build
These speakers have to work where wind, road noise, mounting space and exposure change the job. Match the driver to the actual location, output target, amplifier power and environment instead of treating it like a normal door-speaker replacement.
Plan aroundConfirm mounting location, depth, cutout and how exposed the speaker will be.
Match itMatch efficiency, usable bandwidth and clean amplifier power to the output needed at speed or outdoors.
Finish itPlan crossover, mounting, wiring and electrical support with the complete open-air system.
