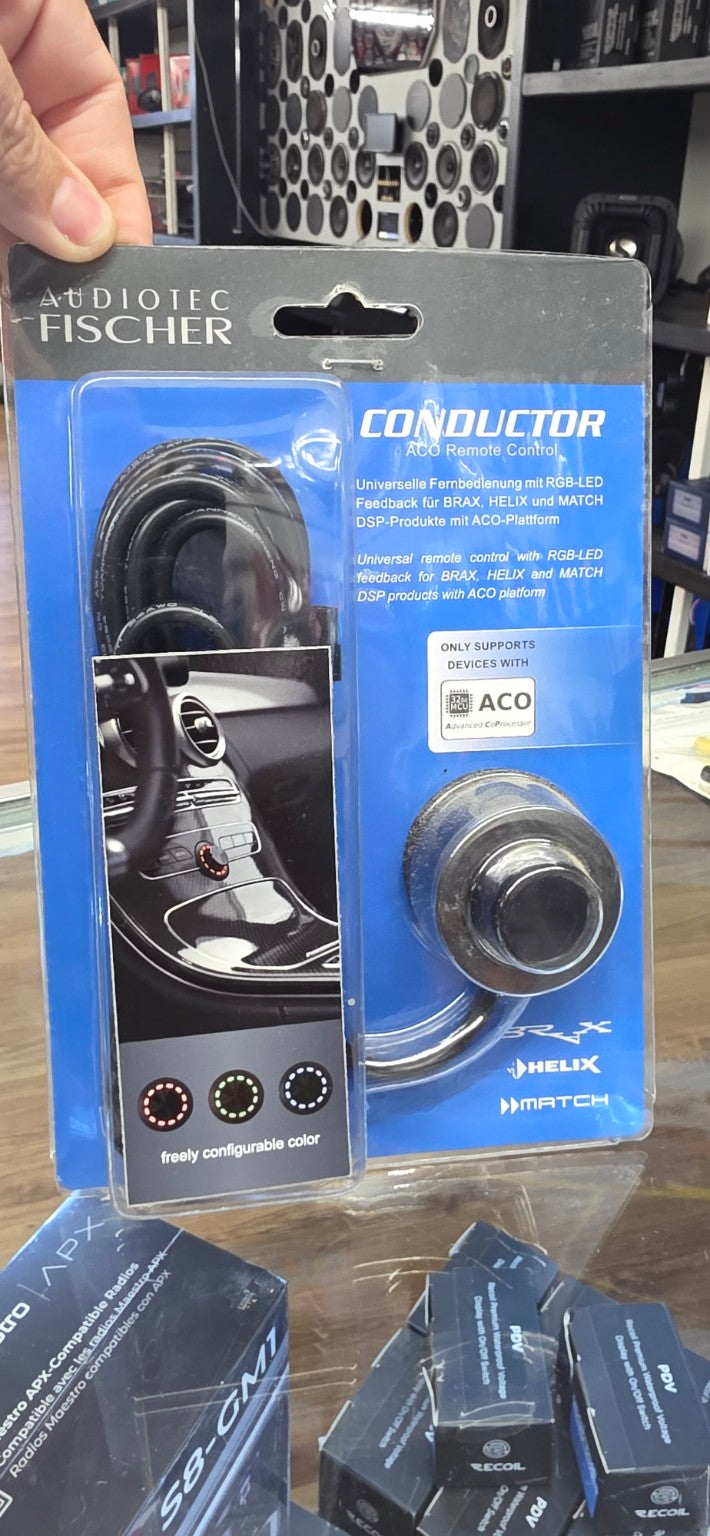

Audiotec Fischer CONDUCTOR One-Touch Remote Control for ACO DSPs
The CONDUCTOR is Audiotec Fischer’s one-touch remote control for compatible BRAX, HELIX and MATCH DSP products with the ACO platform. A single rotary control can handle key DSP system functions including volume adjustment, source selection, sound setup switching and supported Bluetooth® HD Extension Card functions.
Manufacturer Features
- Independent control of up to 4 individual volumes including Master, Digital, HEC/AUX, Rear Attenuation or Subwoofer
- Full system mute
- Selectable volume ranges of 60 dB, 24 dB or 12 dB
- Selectable 1 dB or 0.5 dB volume steps
- 12 RGB LEDs with configurable colors, brightness and automatic dimming
- Optional Bluetooth module control for play, pause, track navigation and pairing
- Sound Setup switching with up to 10 presets
- Signal source selection
- Flush-mount installation with 40 mm / 1.58 in cutout
- 5 m / 16.4 ft SCP cable
- No separate power supply required
- Fully configurable and updateable through DSP PC-Tool
Technical Data
- Housing: ABS with machined aluminum knob
- Hardware: Rotary encoder, 12 RGB LEDs, 48 MHz ARM processor
- Dimensions: 46 mm x 28.7 mm / 1.81 in x 1.13 in
- Installation depth: 17 mm / 0.67 in
Scope of delivery: CONDUCTOR remote control and 4.8 m Smart Control Port connection cable.
Brand Closeout: Limited remaining inventory. Final sale.
