Description
Description

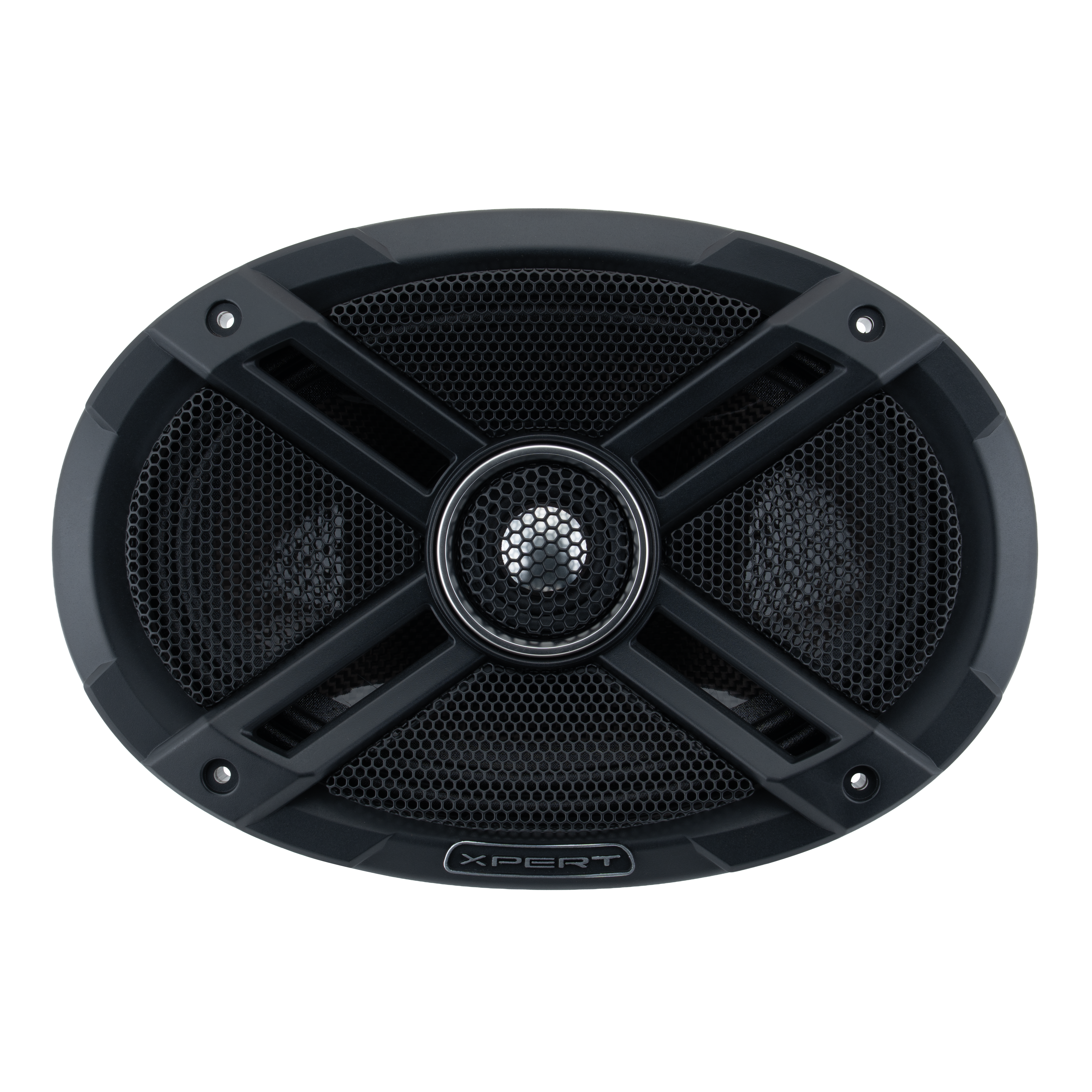

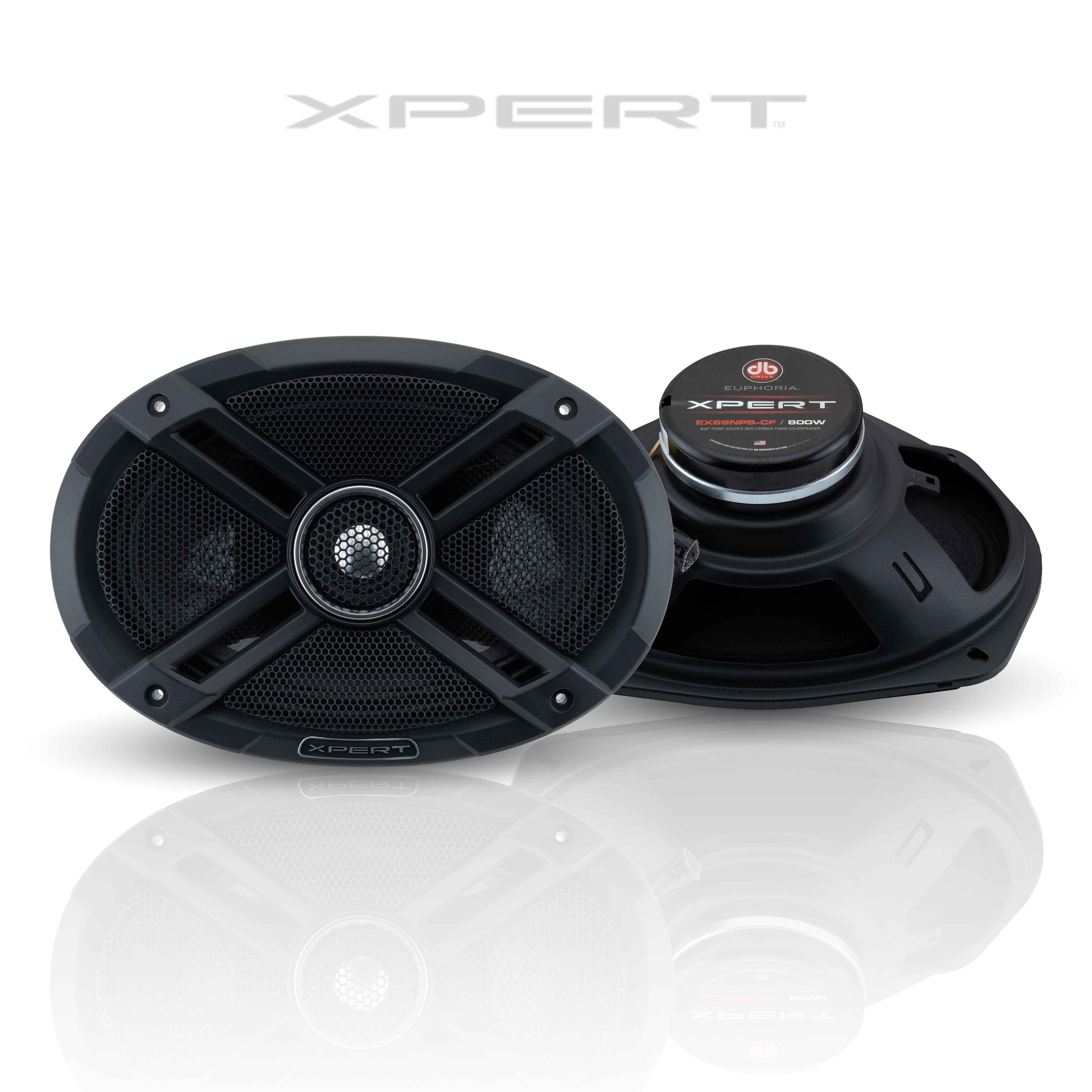

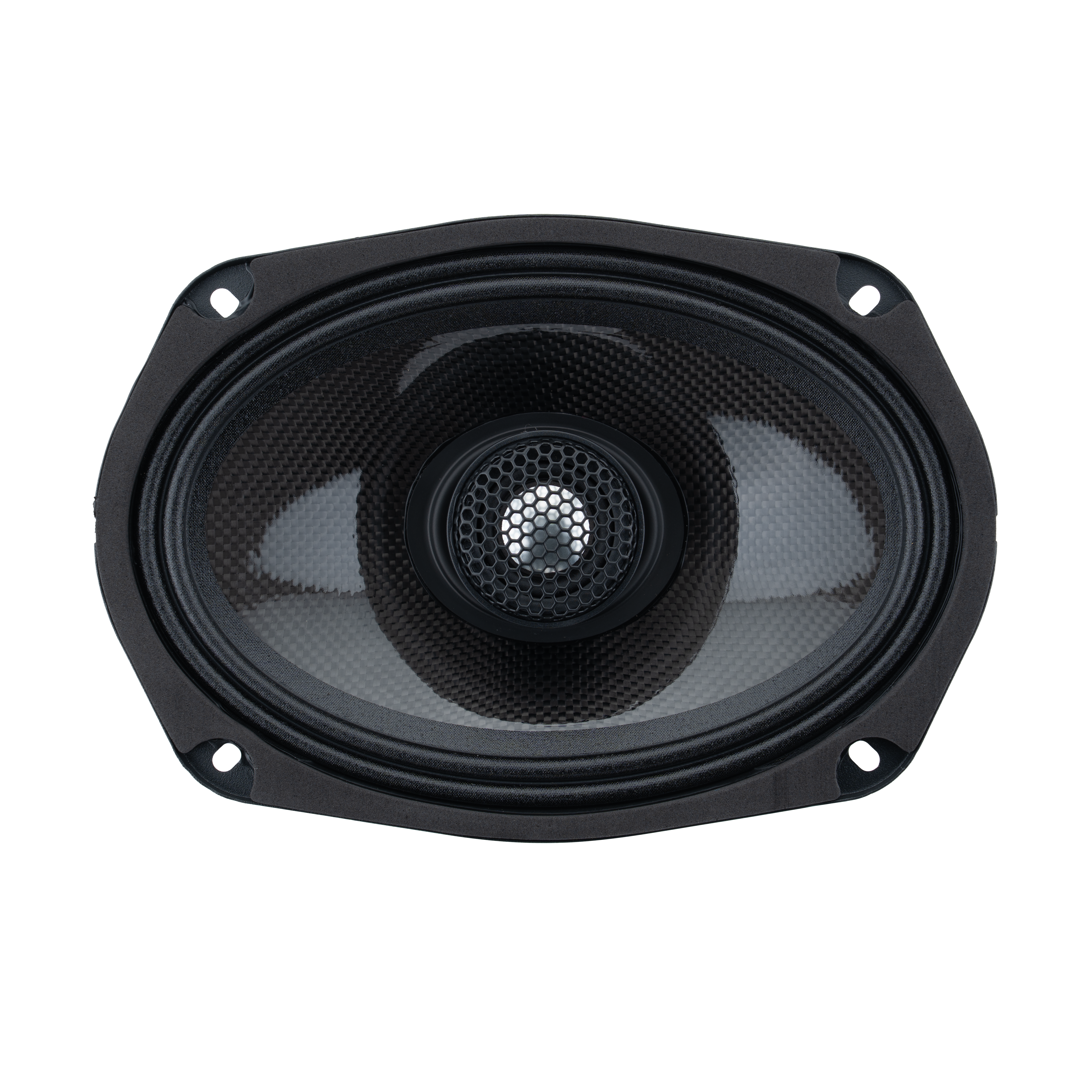

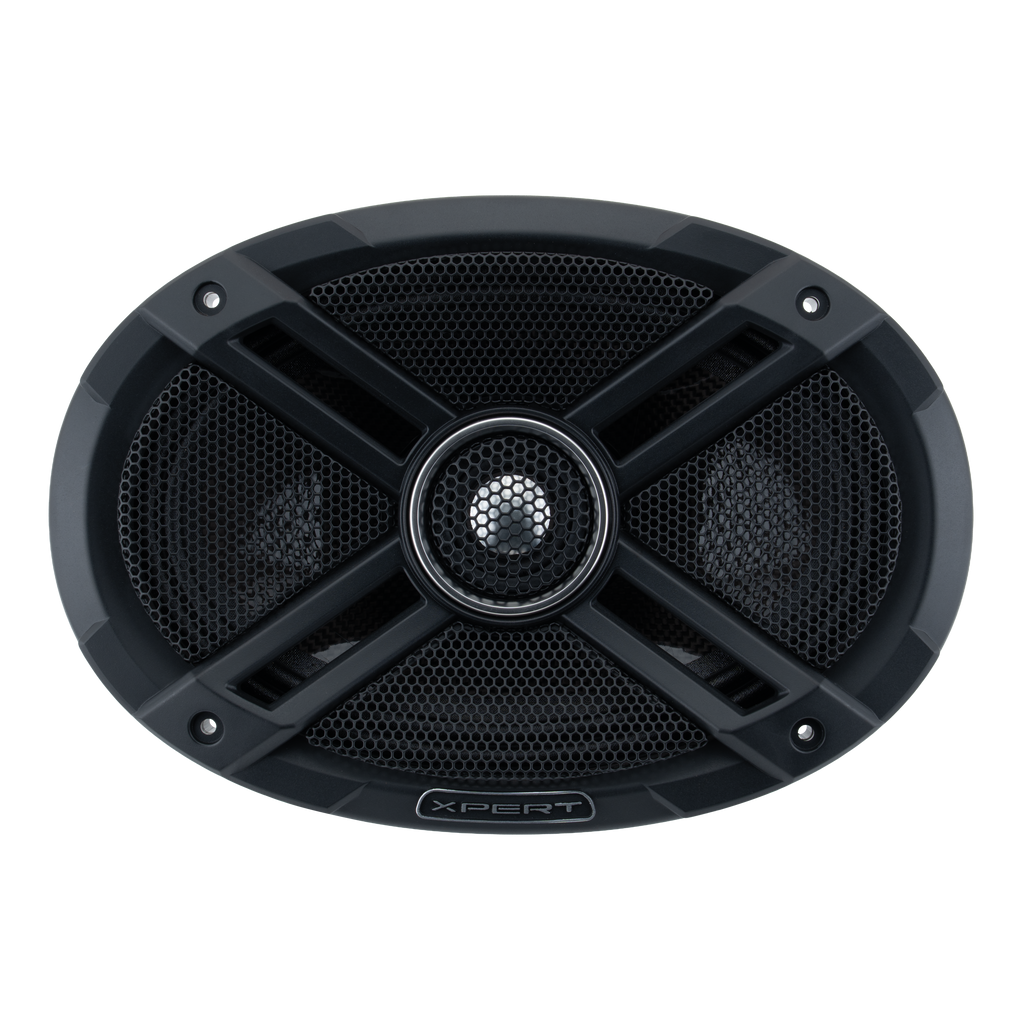

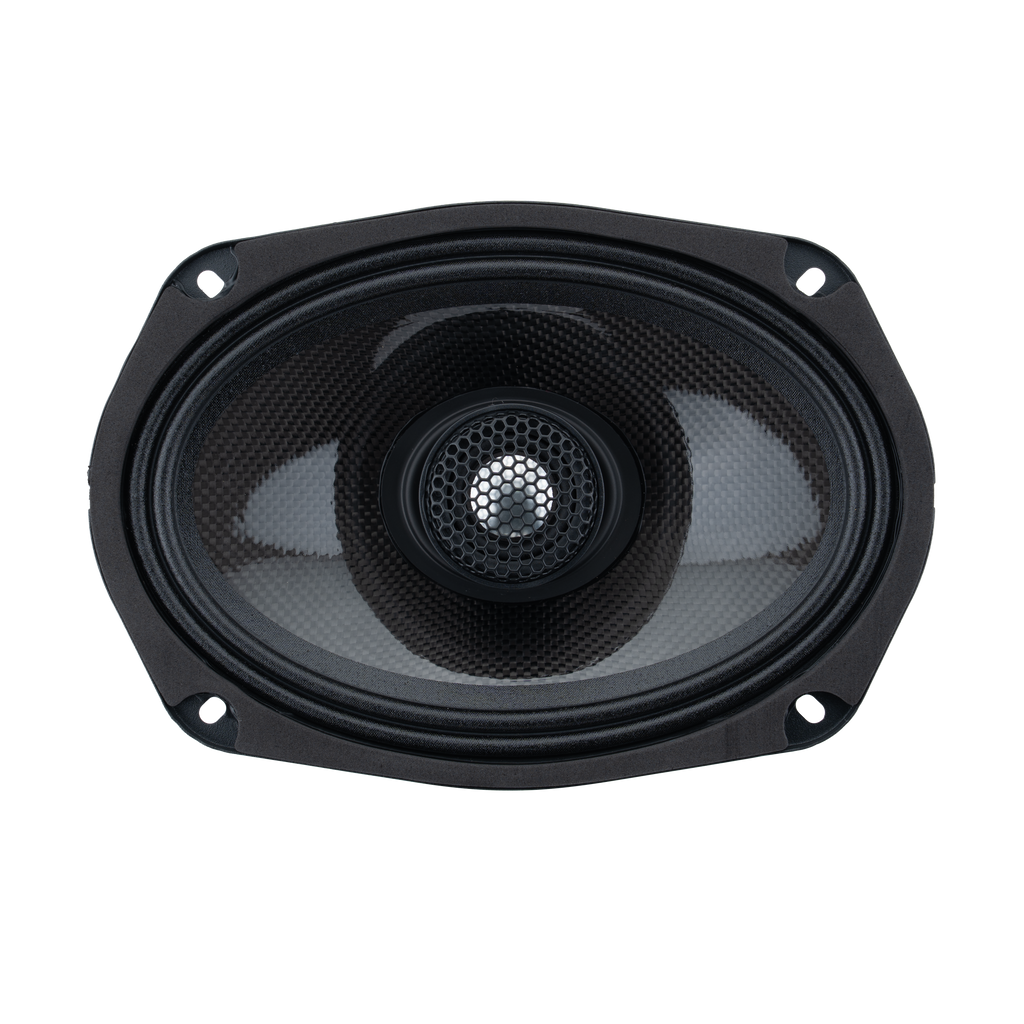

This open-box clearance listing contains a DB Drive XPERT EX69NPS-CF 6-by-9-inch neodymium carbon-fiber point-source loudspeaker. The two-way design combines an IP65 weather-resistant carbon-fiber cone with a wide-dispersion 1-inch aluminum-dome tweeter to provide midbass, vocals and high-frequency detail from one mounting location.
The speaker is rated for 400 watts power handling and 800 watts dynamic power, with 92 dB sensitivity and a published response from 77 Hz to 19 kHz. The open-box condition applies to this specific store listing; the manufacturer specifications remain unchanged.
Specifications
| Model | EX69NPS-CF |
|---|---|
| Condition | Open-box clearance |
| Nominal size | 6 x 9 inches |
| Speaker design | Two-way neodymium carbon-fiber point-source loudspeaker |
| Power handling | 400 watts |
| Dynamic power | 800 watts |
| Nominal impedance | 4 ohms |
| D.C. resistance, Re | 3.2 ohms |
| Sensitivity | 92 dB, 1 W / 1 m |
| Frequency response | 77 Hz–19 kHz |
| Resonant frequency, Fs | 68.8 Hz |
| Qms | 9.95 |
| Qes | 0.44 |
| Qts | 0.42 |
| Vas | 14.1 liters |
| Cms | 0.20 mm/N |
| Midrange voice coil | 1.5 inches / 38.1 mm |
| High-frequency driver | 1-inch wide-dispersion aluminum-dome tweeter |
| Weather resistance | IP65 |
| Magnet | High-intensity neodymium ring |
| Protective grille | Included |
Features
- IP65-rated carbon-fiber cone withstands moisture and environmental exposure.
- Neodymium ring magnet reduces weight while providing motor strength.
- Wide-dispersion aluminum-dome tweeter reproduces clear upper frequencies.
- Treated cloth surround supports controlled cone movement.
- Stamped-steel basket provides a rigid mounting structure.
- Protective grille is included.
- Open-box condition should be reviewed before purchase.
Closeout & Special-Condition Items
What Each Product Condition Means
The exact condition for this item is identified in its product title and description. Contact SMS Car Audio before ordering when additional condition details are needed.
