Description

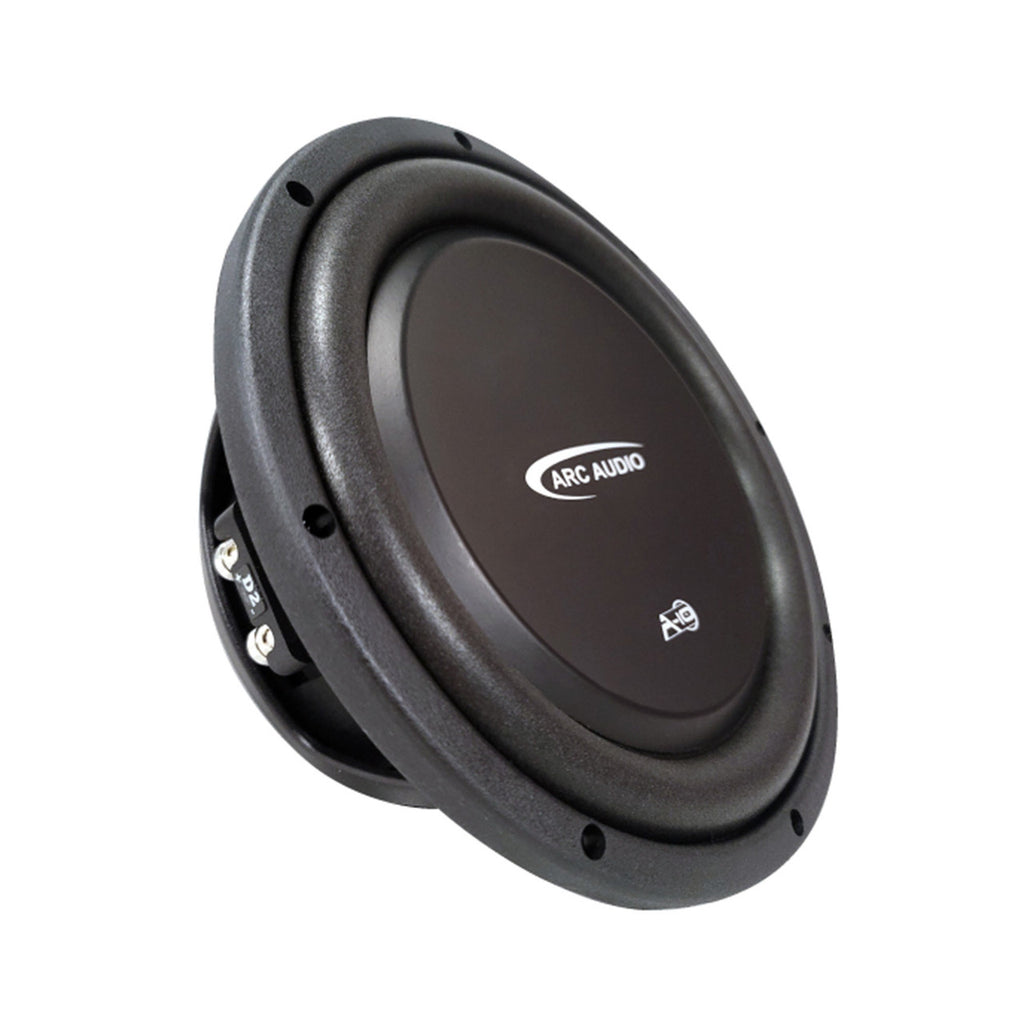

The ARC Audio A10 is a low-profile 10-inch subwoofer designed for sealed enclosures where conventional mounting depth is not available. Offered in dual 2-ohm and dual 4-ohm configurations, it is suited to under-seat truck enclosures, compact vehicle installations, and other space-limited systems that still require controlled low-frequency output.
The A10 uses ARC Audio’s shallow C.R.S. stamped basket, a reinforced pulp cone, and a high-excursion suspension system. Its inner-core open-vent motor and additional motor venting move cooling air through the assembly during extended playback. A progressive twisted-pile Polycotton Nomex spider and UV-grade polyether surround provide mechanical control through the driver’s rated 15.5 mm linear excursion.
The subwoofer is rated for 250 watts RMS and is intended for compact sealed-box operation. Available dual-voice-coil impedance options allow the system designer to select the appropriate final load for a single-subwoofer or multiple-subwoofer amplifier configuration.
Specifications
| Series | A-Series |
|---|---|
| Size | 10 inches |
| Voice-Coil Options | Dual 2 ohms or dual 4 ohms |
| RMS Power Handling | 250 watts |
| Maximum Music Power | 500 watts |
| Sensitivity | 85.4 dB |
| Linear Excursion | 15.5 mm Xmax |
| Mounting Depth | 3.77 inches |
| Cutout Diameter | 9.06 inches |
| Sealed Enclosure Volume | 0.65 cu. ft. minimum; 0.85 cu. ft. recommended; 1.10 cu. ft. maximum |
| Basket and Cone | Shallow C.R.S. basket with reinforced pulp cone |
| Voice Coil | 3-inch Toktu HD-copper coil on a Kapton and Spunlace fiber former |
| Cooling | Inner-core open-vent motor with open motor venting |
| Suspension | Progressive twisted-pile Polycotton Nomex spider and UV-grade polyether surround |
Features
- Low-profile 10-inch sealed-enclosure subwoofer
- Dual 2-ohm and dual 4-ohm versions available
- Designed for under-seat and space-limited installations
- Shallow stamped C.R.S. basket
- Reinforced pulp cone
- 15.5 mm rated linear excursion
- Inner-core open-vent motor cooling
- Additional open motor venting
- Progressive Polycotton Nomex spider
- UV-grade polyether surround
- Compact sealed-enclosure requirements
