Description
Description

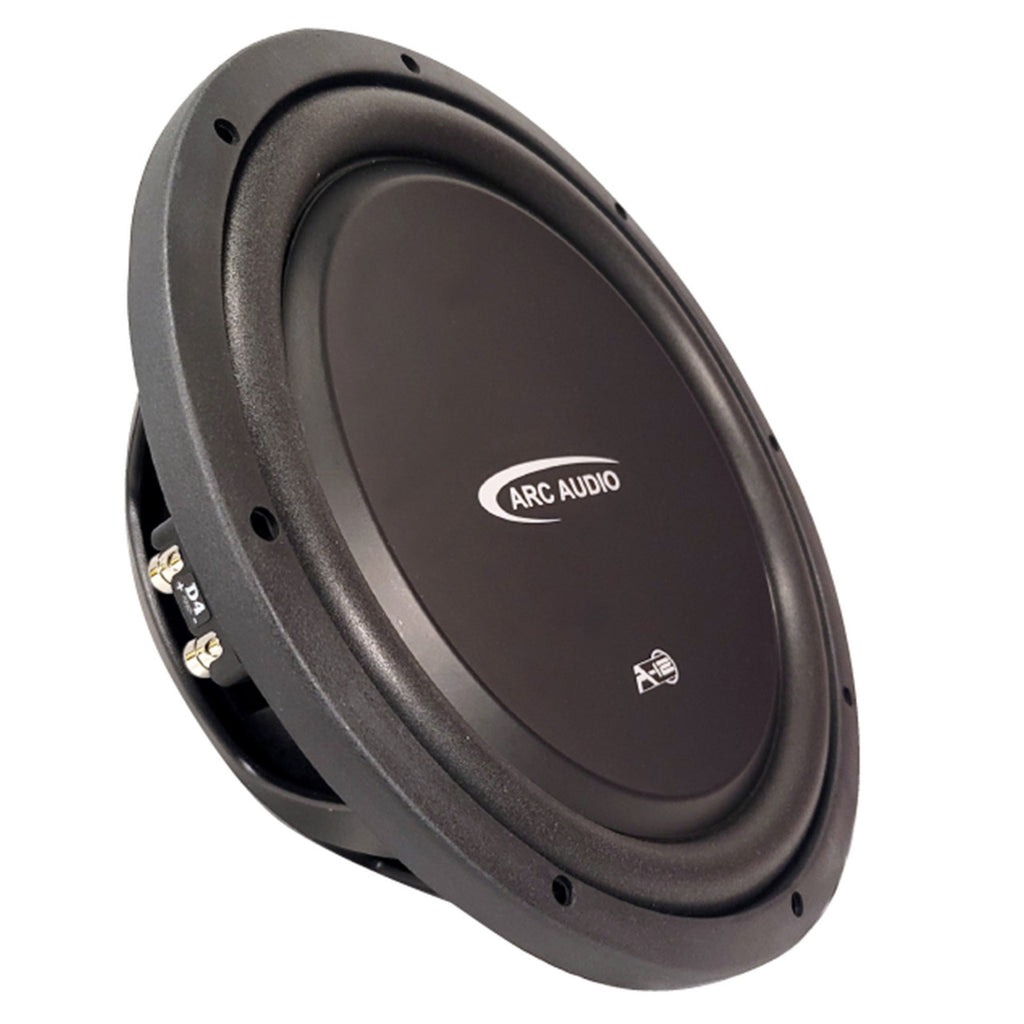

The ARC Audio A12 is a low-profile 12-inch subwoofer designed to provide increased cone area in sealed enclosures where mounting depth is restricted. It is available with dual 2-ohm or dual 4-ohm voice coils for flexible amplifier-load configurations in under-seat truck enclosures, compact cargo-area systems, and custom installations.
The A12 uses ARC Audio’s shallow C.R.S. stamped basket, a reinforced pulp cone, and a high-excursion suspension assembly. An inner-core open-vent motor and open motor venting support voice-coil cooling during sustained playback. The progressive twisted-pile Polycotton Nomex spider and UV-grade polyether surround maintain mechanical control through the driver’s rated 15.5 mm linear excursion.
With 300 watts RMS power handling and a recommended sealed volume of 1.00 cubic foot, the A12 is intended for systems that prioritize controlled bass from a shallow enclosure rather than requiring a conventional full-depth subwoofer chassis.
Specifications
| Series | A-Series |
|---|---|
| Size | 12 inches |
| Voice-Coil Options | Dual 2 ohms or dual 4 ohms |
| RMS Power Handling | 300 watts |
| Maximum Music Power | 600 watts |
| Sensitivity | 87 dB |
| Linear Excursion | 15.5 mm Xmax |
| Mounting Depth | 3.77 inches |
| Cutout Diameter | 10.91 inches |
| Sealed Enclosure Volume | 0.85 cu. ft. minimum; 1.00 cu. ft. recommended; 1.25 cu. ft. maximum |
| Basket and Cone | Shallow C.R.S. basket with reinforced pulp cone |
| Voice Coil | 3-inch Toktu HD-copper coil on a Kapton and Spunlace fiber former |
| Cooling | Inner-core open-vent motor with open motor venting |
| Suspension | Progressive twisted-pile Polycotton Nomex spider and UV-grade polyether surround |
Features
- Low-profile 12-inch sealed-enclosure subwoofer
- Dual 2-ohm and dual 4-ohm versions available
- Designed for under-seat and other space-limited installations
- Shallow stamped C.R.S. basket
- Reinforced pulp cone
- 15.5 mm rated linear excursion
- Inner-core open-vent motor cooling
- Additional open motor venting
- Progressive Polycotton Nomex spider
- UV-grade polyether surround
- Compact sealed-enclosure requirements for a 12-inch driver
