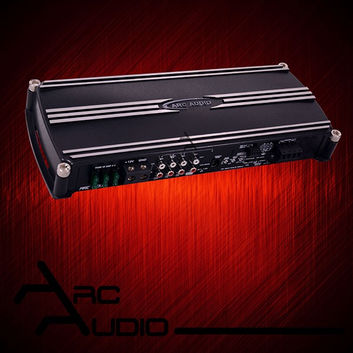

The ARC Audio ARC 1000.2 is a high-power two-channel Class-D amplifier built around ARC Audio's interchangeable front-end architecture. In its standard analog configuration, it can power a high-output stereo speaker or midbass system with 500 watts RMS per channel, or operate bridged as a 1,000-watt mono amplifier into a 4-ohm load.
The standard front end includes high-pass, low-pass, and all-pass filtering along with bass-boost control. For systems requiring full digital tuning and signal management, the analog front end can be replaced with the optional IPS8.8 DSP module, allowing the amplifier to become part of a DSP-controlled active system without adding a separate external processor chassis.
A cast chassis, internal forced-air cooling, balanced differential inputs, plug-in signal and speaker connections, and digitally adjustable switching frequency support compact installation and help manage potential Class-D interference in sensitive vehicles. PC-based firmware updates, remote settings, and an RGB status logo provide additional system-control and diagnostic functions.
Specifications
| Amplifier Class | Class D |
|---|---|
| Channels | 2 |
| Rated Power at 4 Ohms | 500 watts RMS × 2 |
| Rated Power at 2 Ohms | 500 watts RMS × 2 |
| Bridged Power at 4 Ohms | 1,000 watts RMS × 1 |
| Frequency Response | 5 Hz–30 kHz |
| Analog Crossovers | High-pass, low-pass, and all-pass |
| Bass Boost | Included |
| Optional DSP | IPS8.8 compatible; DSP module not included |
| Inputs | Balanced differential |
| Cooling | Internal forced-air cooling |
| Connections | Plug-in signal and speaker terminals |
| Dimensions | 15-3/8 × 6-3/8 × 2-1/4 inches |
Features
- Two-channel high-power Class-D amplifier
- Equal rated stereo output at 2 and 4 ohms
- Bridgeable for 1,000 watts RMS into 4 ohms
- Interchangeable front-end architecture
- Optional IPS8.8 DSP module compatibility
- Built-in analog high-pass, low-pass, and all-pass filtering
- Balanced differential inputs
- Cast chassis with internal forced-air cooling
- Digitally adjustable switching frequency
- Plug-in signal and speaker connections
- PC-based firmware and configuration support
- RGB operating-status logo
