Description
Description

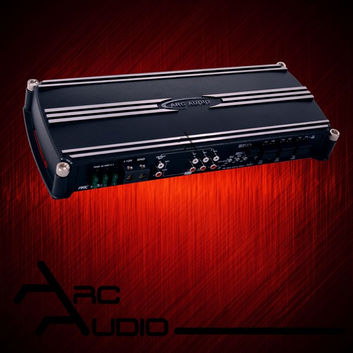

The ARC Audio ARC 1000.6 is a six-channel Class-D amplifier designed for active multi-way systems, high-output front stages, and installations that need several channels of equal power from one compact chassis. Each channel produces 175 watts RMS into either 4-ohm or 2-ohm loads, allowing consistent output across different driver impedances.
The three channel pairs can be bridged to produce 250 watts RMS per pair into 4 ohms. The standard amplifier does not include analog crossover controls, making it best suited to systems that use an external DSP or the optional IPS8.8 interchangeable DSP front end for crossover, equalization, delay, and signal routing.
The ARC Series cast chassis incorporates internal forced-air cooling, balanced differential inputs, plug-in signal and speaker connections, digitally adjustable switching frequency, PC-based firmware support, and an RGB status logo. This architecture provides the channel count and integration flexibility required for advanced active systems while keeping the amplifier and optional processor in a single platform.
Specifications
| Amplifier Class | Class D |
|---|---|
| Channels | 6 |
| Rated Power at 4 Ohms | 175 watts RMS × 6 |
| Rated Power at 2 Ohms | 175 watts RMS × 6 |
| Bridged Power at 4 Ohms | 250 watts RMS × 3 |
| Frequency Response | 5 Hz–30 kHz |
| Analog Crossovers | None |
| Optional DSP | IPS8.8 compatible; DSP module not included |
| Inputs | Balanced differential |
| Cooling | Internal forced-air cooling |
| Connections | Plug-in signal and speaker terminals |
| Dimensions | 15-3/8 × 6-3/8 × 2-1/4 inches |
Features
- Six-channel full-range Class-D amplifier
- Equal rated output at 2 and 4 ohms
- Three bridgeable channel pairs
- Designed for DSP-controlled active and multi-way systems
- Interchangeable front-end architecture
- Optional IPS8.8 DSP module compatibility
- No onboard analog crossover controls in the standard configuration
- Balanced differential inputs
- Cast chassis with internal forced-air cooling
- Digitally adjustable switching frequency
- Plug-in signal and speaker connections
- PC-based firmware and configuration support
- RGB operating-status logo
