Description

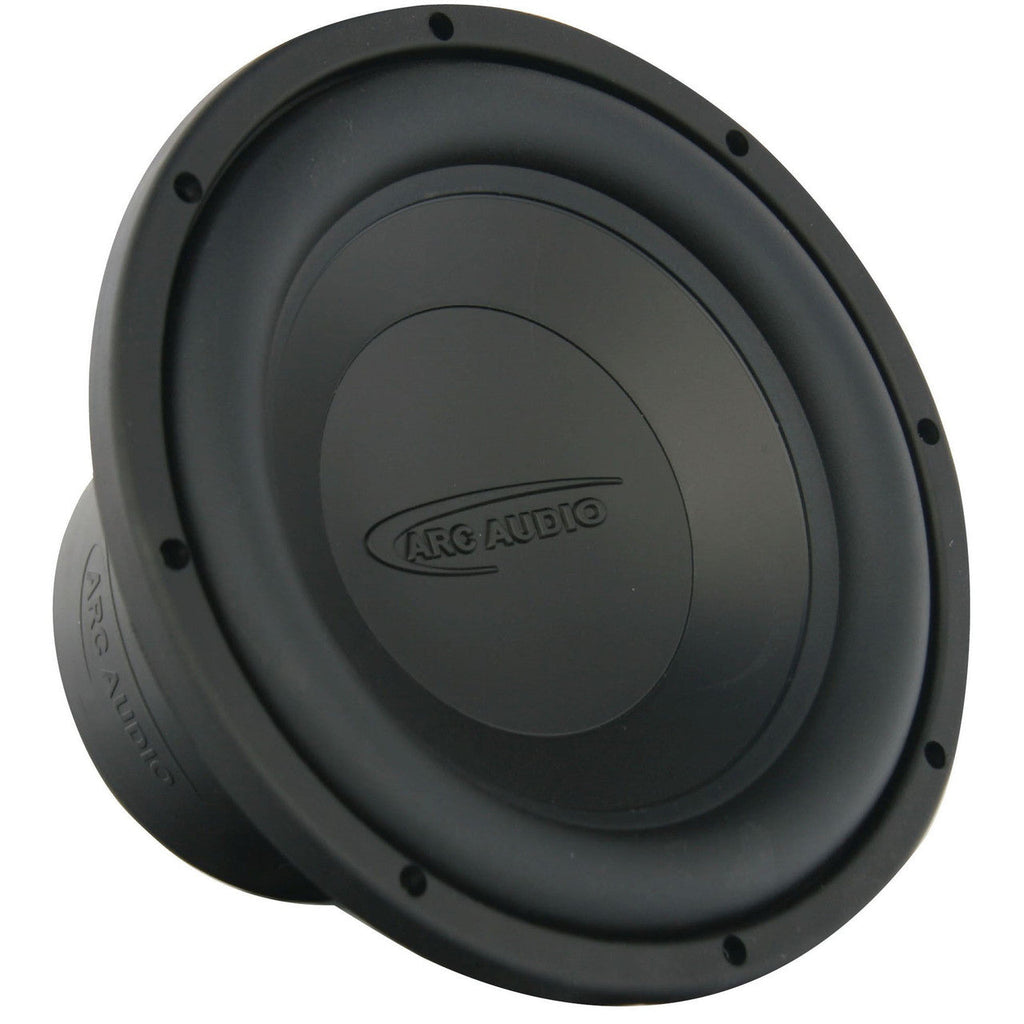

The ARC Audio ARC10 is a 10-inch ARC Series subwoofer for compact sound-quality bass systems. It is available with dual 2-ohm or dual 4-ohm voice coils, allowing the final amplifier load to be selected for a single-subwoofer or multiple-subwoofer installation.
The ARC10 handles 250 watts RMS and 500 watts maximum music power. Its 15 mm rated linear excursion, stamped-steel basket and ferrite motor support controlled daily-driver bass from a compact sealed enclosure.
Specifications
| Model | ARC10 |
|---|---|
| Nominal size | 10 inches |
| Voice-coil options | Dual 2 ohms or dual 4 ohms |
| RMS power handling | 250 watts |
| Maximum music power | 500 watts |
| Sensitivity | 87 dB |
| Linear excursion | 15 mm Xmax |
| Mounting depth | 5.50 inches |
| Cutout diameter | 9.25 inches |
| Sealed enclosure volume | 0.65 cu. ft. minimum; 0.75 cu. ft. recommended; 0.85 cu. ft. maximum |
Published enclosure volumes apply to one driver and should be treated as net internal volume. Confirm the current technical drawing before enclosure fabrication.
