Description

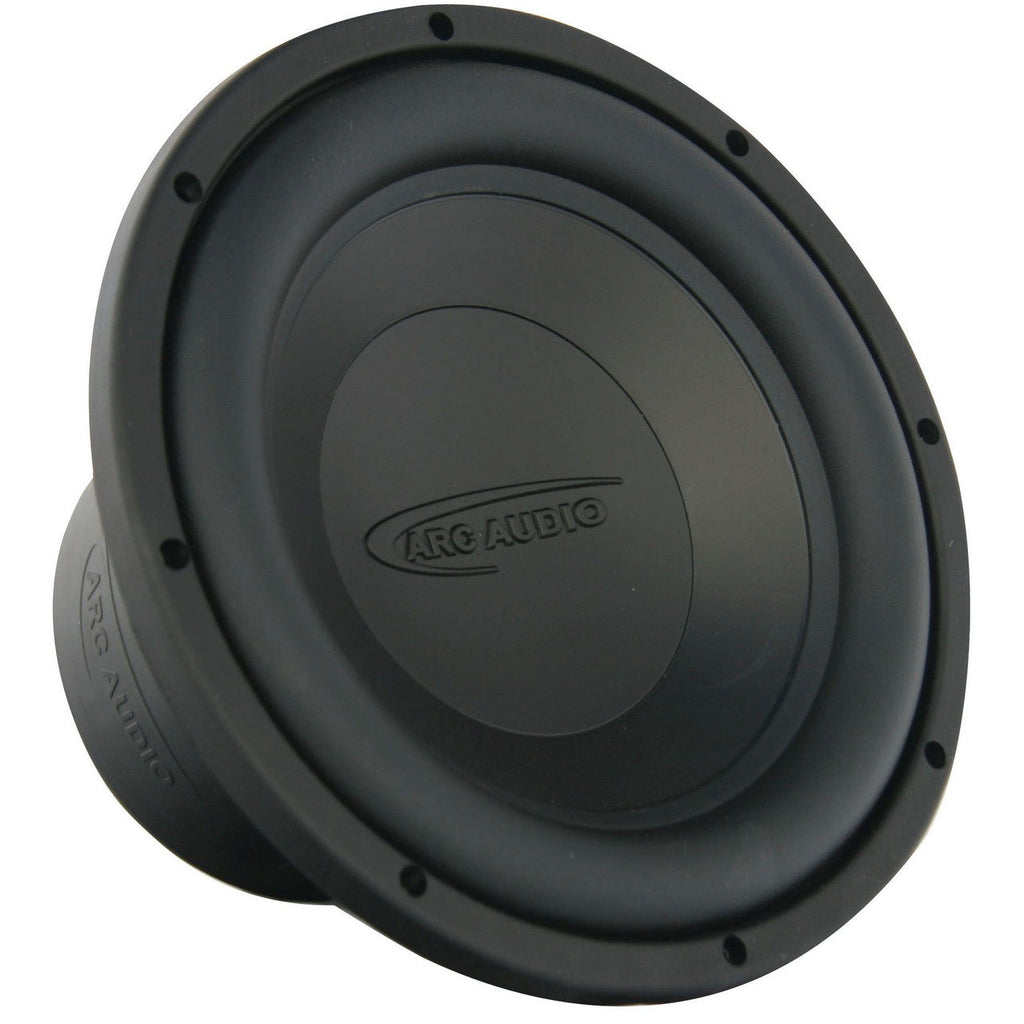

The ARC Audio ARC12 is a 12-inch ARC Series subwoofer for sound-quality-oriented sealed-enclosure systems. It is available with dual 2-ohm or dual 4-ohm voice coils for flexible amplifier-load planning.
The ARC12 handles 350 watts RMS and 700 watts maximum music power. Its 18 mm rated linear excursion, stamped-steel basket and ferrite motor provide greater cone area and low-frequency capability than the smaller ARC Series models.
Specifications
| Model | ARC12 |
|---|---|
| Nominal size | 12 inches |
| Voice-coil options | Dual 2 ohms or dual 4 ohms |
| RMS power handling | 350 watts |
| Maximum music power | 700 watts |
| Sensitivity | 89 dB |
| Linear excursion | 18 mm Xmax |
| Mounting depth | 6.00 inches |
| Cutout diameter | 11.00 inches |
| Sealed enclosure volume | 0.90 cu. ft. minimum; 1.10 cu. ft. recommended; 1.25 cu. ft. maximum |
Published enclosure volumes apply to one driver and should be treated as net internal volume. Confirm the current technical drawing before enclosure fabrication.
