Description
Description

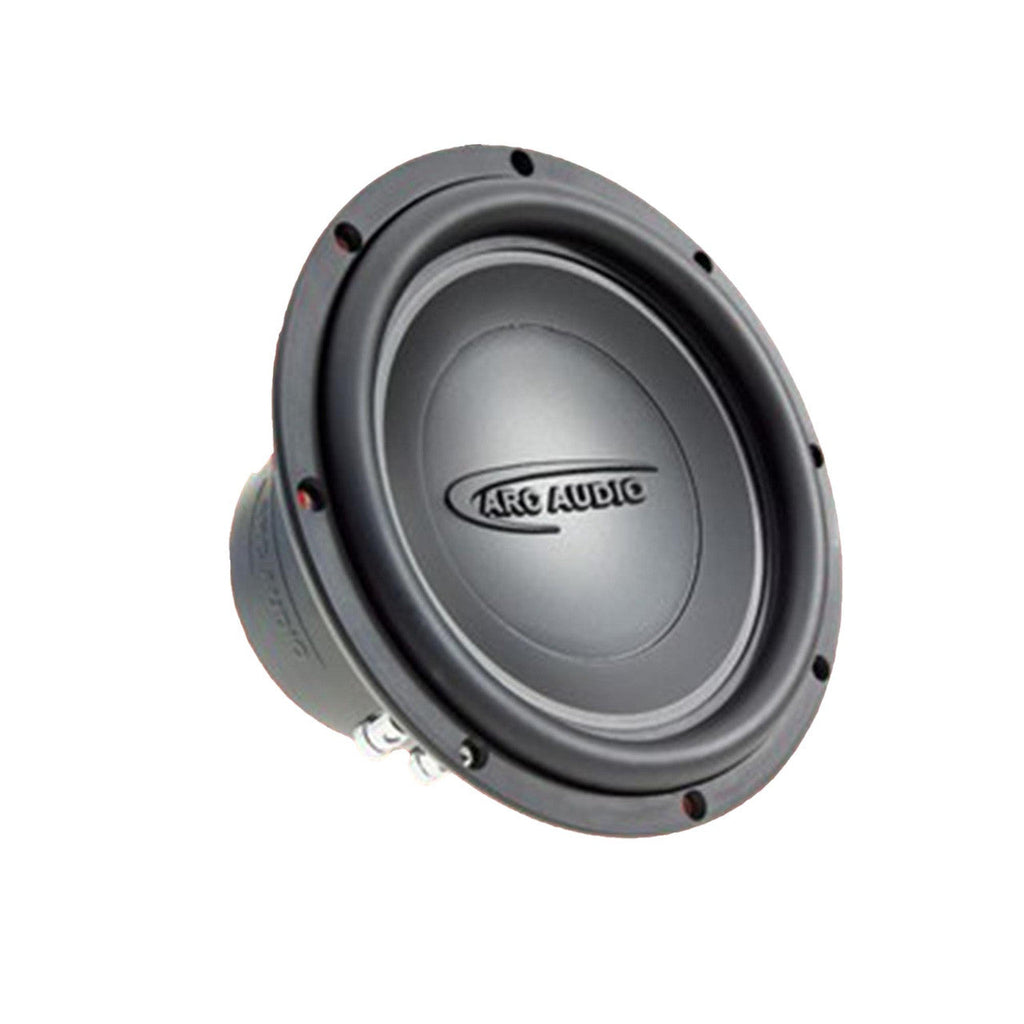

The ARC Audio ARC8 is an 8-inch ARC Series subwoofer designed for compact sealed enclosures. Its traditional-depth stamped-basket design and ferrite motor provide a practical solution for systems that need controlled low-frequency reinforcement from limited enclosure volume.
The ARC8 is available with dual 2-ohm or dual 4-ohm voice coils, allowing the installer to select a final amplifier load appropriate for one or multiple subwoofers. Its 150-watt RMS rating, 15 mm linear excursion, and recommended 0.45-cubic-foot sealed enclosure make it suitable for compact cars, trucks, factory-location upgrades, and small custom bass systems.
Enclosure volume, amplifier power, final impedance, and available mounting depth should be planned together. The published enclosure recommendations are sealed-box volumes for one driver.
Specifications
| Series | ARC Series |
|---|---|
| Size | 8 inches |
| Voice-Coil Options | Dual 2 ohms or dual 4 ohms |
| RMS Power Handling | 150 watts |
| Maximum Music Power | 300 watts |
| Sensitivity | 85.6 dB |
| Linear Excursion | 15 mm Xmax |
| Mounting Depth | 4.50 inches |
| Cutout Diameter | 7.125 inches |
| Sealed Enclosure Volume | 0.35 cu. ft. minimum; 0.45 cu. ft. recommended; 0.55 cu. ft. maximum |
| Basket | Stamped steel |
| Motor | Ferrite |
| Design | Traditional-depth subwoofer |
Features
- Compact 8-inch ARC Series subwoofer
- High-end stamped-basket construction
- Ferrite motor structure
- Dual 2-ohm and dual 4-ohm versions available
- Designed for compact sealed enclosures
- 150-watt RMS power handling
- 15 mm rated linear excursion
- Useful for small single-subwoofer or multiple-subwoofer systems
- Traditional chassis design for predictable installation and enclosure planning
