Description
Description

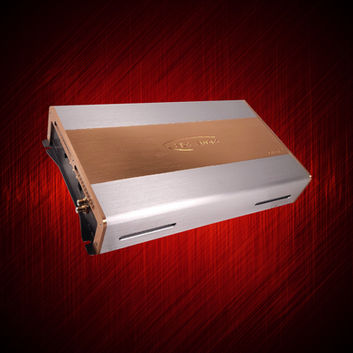

The ARC Audio Copper CU6.2 is a high-power two-channel Class A/B reference amplifier intended for demanding front-stage, midbass, specialty-driver, and bridged mono applications. It delivers 375 watts RMS per channel into 4 ohms, 625 watts RMS per channel into 2 ohms, or 1,250 watts RMS bridged into a 4-ohm load.
Its 7 Hz–50 kHz operating bandwidth allows the CU6.2 to reproduce full-range program material while supplying substantial current and headroom. The selectable input configuration and bypassable front end make it suitable for systems using the amplifier’s signal controls or a separate DSP for crossover, equalization, delay, and level management.
An adjustable crossover range from 55 Hz to 5.5 kHz supports several driver assignments. The CU6.2 is a dedicated analog reference amplifier and does not include an internal DSP.
Specifications
| Series | Copper Series |
|---|---|
| Amplifier Type | 2-channel Class A/B reference amplifier |
| Rated Power at 4 Ohms | 375 watts RMS × 2 |
| Rated Power at 2 Ohms | 625 watts RMS × 2 |
| Bridged Power at 4 Ohms | 1,250 watts RMS × 1 |
| Frequency Response | 7 Hz–50 kHz |
| Crossover Range | 55 Hz–5.5 kHz |
| Selectable Input Configuration | Yes |
| Bypassable Front End | Yes |
| Built-In DSP | No |
| Dimensions | 15 × 8 × 2.65 inches |
Features
- High-power two-channel Class A/B reference-amplifier design
- 375 watts per channel into 4 ohms
- 625 watts per channel into 2 ohms
- Bridgeable for 1,250 watts into a 4-ohm mono load
- Wide 7 Hz–50 kHz operating bandwidth
- Selectable input configuration
- Bypassable front end for external-DSP systems
- Adjustable crossover section covering 55 Hz–5.5 kHz
- Suitable for high-output front-stage, midbass, specialty-driver, or bridged applications
- No internal DSP included
