Description
Description

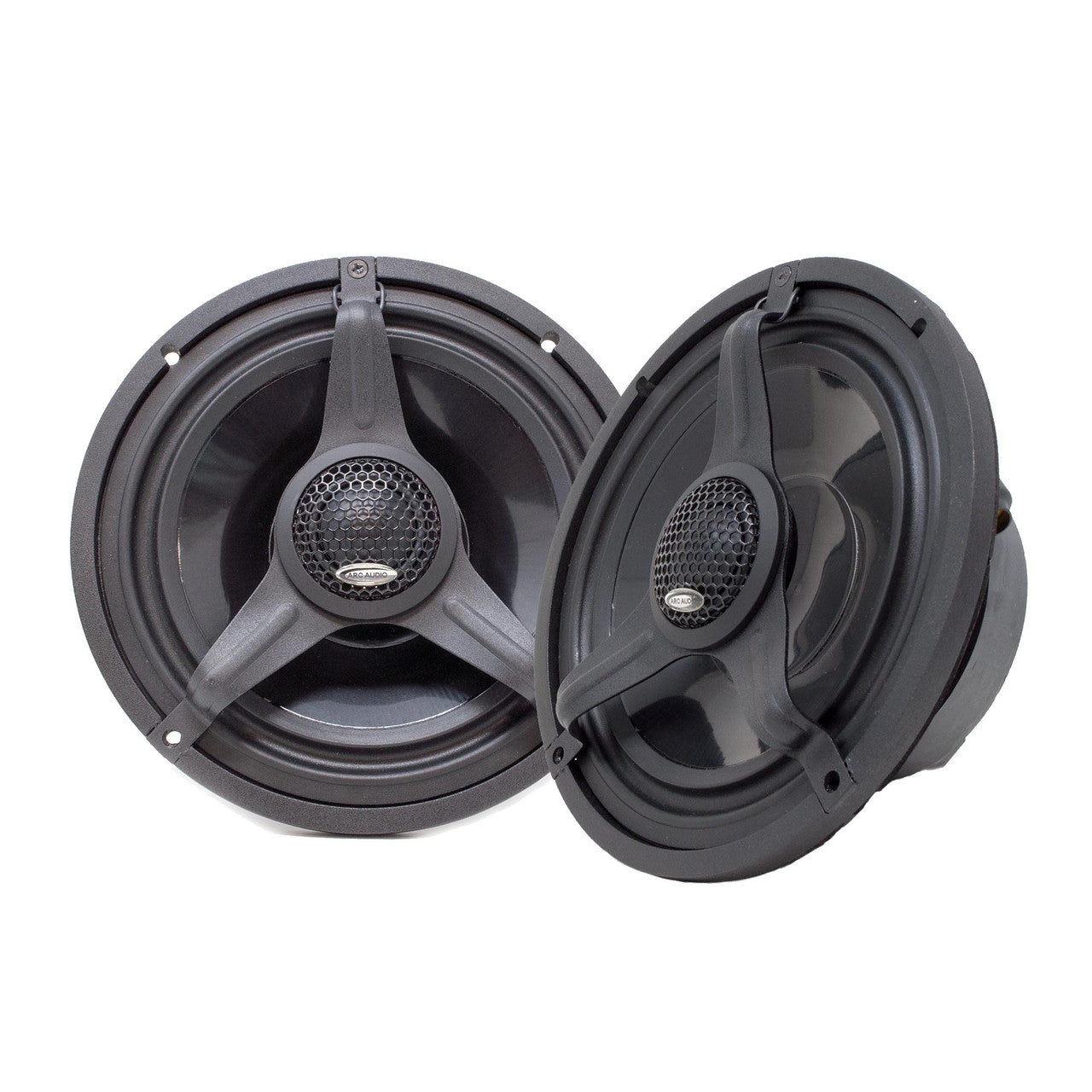

The ARC Audio MOTO CX6 is a pair of shallow 6.5-inch coaxial speakers developed for motorcycles, powersports vehicles, and other exposed installations. The redesigned slim-profile chassis and 2.31-inch mounting depth allow the speaker to fit a wider range of factory and custom locations than a conventional deep-basket coaxial.
A sealed front face and floating tweeter assembly improve resistance to water and road exposure. The carbon-filled polypropylene cone is driven by a Y35 one-piece T-yoke motor and a 1.25-inch high-temperature copper voice coil on a pressed glass-fiber former. Vented voice-coil and motor construction improves cooling during extended high-output operation.
The MOTO CX6 handles 110 watts RMS and 260 watts maximum, with 92.5 dB sensitivity. On 2014-and-newer Harley-Davidson Street Glide upper-fairing installations, the factory metal grilles are required. Grilles are not included.
Specifications
| Series | MOTO Series |
|---|---|
| Sold As | Pair |
| Speaker Type | 2-way coaxial |
| Size | 6.5 inches |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 110 watts |
| Maximum Power | 260 watts |
| Sensitivity | 92.5 dB |
| Frequency Response | 50 Hz–20 kHz |
| Mounting Depth | 2.31 inches |
| Tweeter | 25 mm floating coaxial tweeter |
| Cone | Carbon-filled polypropylene |
| Motor | Y35 one-piece T-yoke design |
| Voice Coil | 1.25-inch pressed glass-fiber former with high-temperature copper winding |
| Cooling | Vented voice-coil and motor design |
| Environmental Construction | Sealed front face and weather-focused floating-tweeter design |
| Street Glide Fitment Note | 2014-and-newer upper fairings require OEM metal grilles |
| Grilles Included | No |
Features
- Shallow 6.5-inch coaxial motorcycle speaker pair
- Redesigned slim-profile chassis
- Sealed front face for improved environmental resistance
- Floating tweeter architecture
- Carbon-filled polypropylene cone
- Y35 one-piece T-yoke motor
- High-temperature copper voice coil
- Pressed glass-fiber voice-coil former
- Vented motor and voice-coil cooling
- Designed for prolonged open-air playback
- Factory grille requirements vary by motorcycle application
