Description
Description

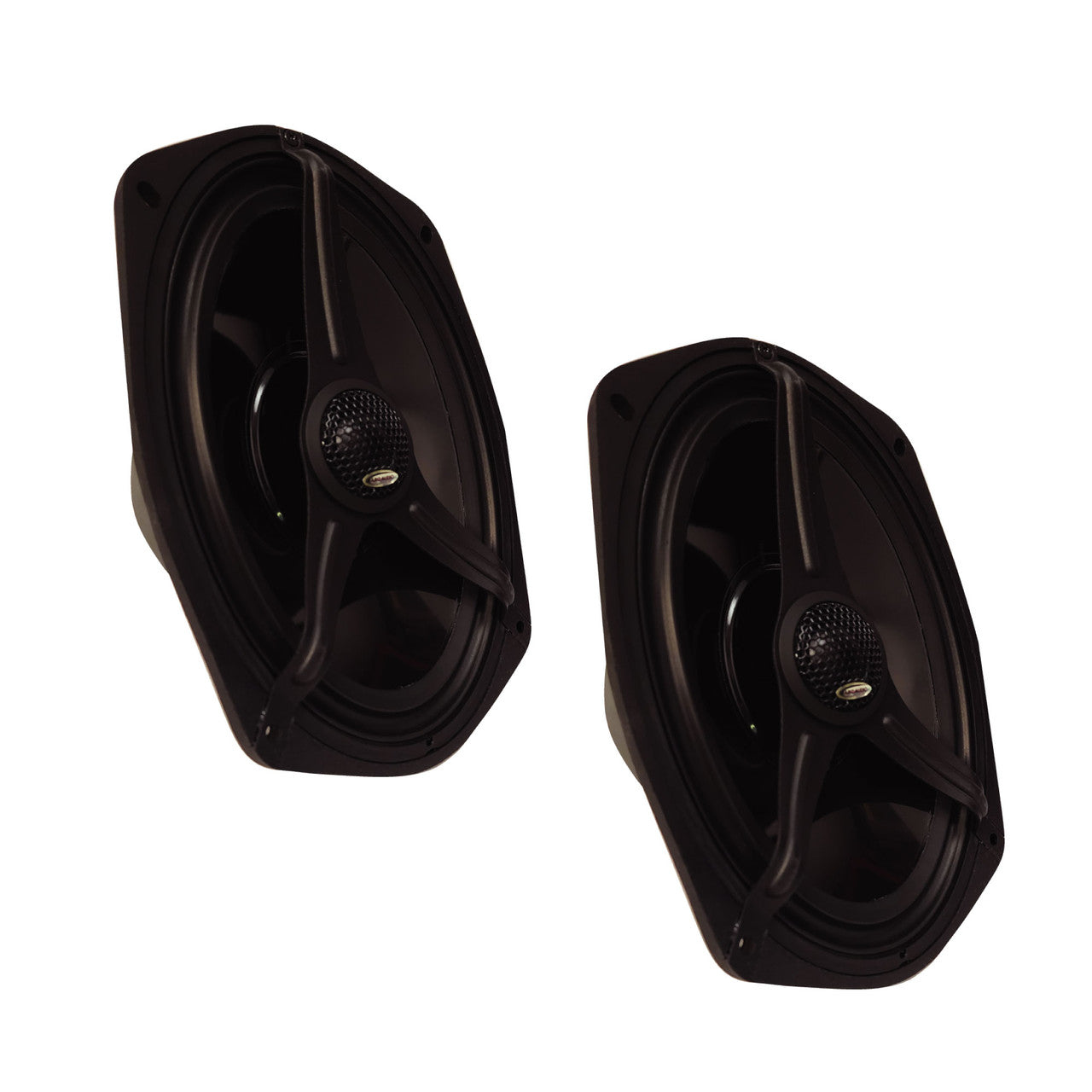

The ARC Audio MOTO CX69 is a pair of 6-by-9-inch two-way coaxial speakers engineered for motorcycle, powersports, and open-air audio systems. The larger cone area is designed to provide stronger midbass extension and balanced output while maintaining the sensitivity needed to project music in exposed listening environments.
The carbon-doped polypropylene cone is mounted in a pressure-cast four-spoke basket with eight cooling vents below the spider plateau. A 1.45-inch OFC copper voice coil on a glass-fiber former drives the woofer, while a 25 mm PEI/Mylar dome tweeter with a neodymium motor reproduces the high frequencies.
The MOTO CX69 handles 125 watts RMS and 300 watts maximum, with 95 dB sensitivity and a published response of 50 Hz to 20 kHz. Grilles are not included.
Specifications
| Series | MOTO Series |
|---|---|
| Sold As | Pair |
| Speaker Type | 2-way coaxial |
| Size | 6 × 9 inches |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 125 watts |
| Maximum Power | 300 watts |
| Sensitivity | 95 dB |
| Frequency Response | 50 Hz–20 kHz |
| Mounting Depth | 3.27 inches |
| Tweeter | 25 mm PEI/Mylar dome with neodymium motor |
| Cone | Carbon-doped polypropylene |
| Basket | Pressure-cast four-spoke design |
| Cooling | Eight vents below the spider plateau |
| Voice Coil | 1.45-inch glass-fiber former with OFC copper winding |
| Grilles Included | No |
Features
- High-output 6-by-9-inch coaxial motorcycle speaker pair
- Designed for open-air motorcycle and powersports systems
- Large cone area for improved midbass extension
- Carbon-doped polypropylene cone
- 25 mm PEI/Mylar dome tweeter
- Neodymium tweeter motor
- Pressure-cast four-spoke basket
- Eight under-spider cooling vents
- 1.45-inch OFC copper voice coil
- Glass-fiber voice-coil former
- High 95 dB sensitivity
