Description
Description

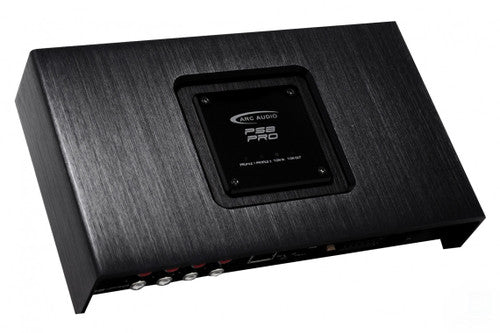

The ARC Audio PS8PRO is an eight-input, eight-output Pro-Series digital signal processor designed for active audio systems, factory-radio integration, and precision system tuning. Each of its eight RCA outputs is independently processed, allowing dedicated control of individual tweeters, midranges, midbass drivers, rear speakers, and subwoofer channels.
The processor uses 32-bit fixed-point DSP architecture with AKM AK5558 analog-to-digital and AK4438 digital-to-analog conversion. Eight differential analog inputs accept low-level or amplified factory signals from 5 to 32 volts RMS, while optical and coaxial digital-source support provide additional integration paths when the required ARC Audio digital-over-copper hardware is used.
ARC Audio DNA software provides input summing, matrix routing, per-channel equalization, crossover control, phase and delay adjustment, and four user presets. The PS8PRO supports iDatalink Maestro AR integration. The current optional wired controller is the ARC Audio LR2; the LR2, Maestro modules, digital adapters, and AXP wireless interface are sold separately.
Specifications
| Product Type | Pro-Series stand-alone DSP |
|---|---|
| Analog Inputs | 8 differential inputs |
| Input Voltage Range | 5–32 volts RMS |
| Processed Outputs | 8 RCA outputs |
| Maximum Output Voltage | Up to 8 volts |
| DSP Processing | 32-bit fixed point |
| ADC / DAC | AKM AK5558 / AK4438 |
| Maximum Sample Rate | 96 kHz |
| Digital Inputs | Optical and coaxial; digital-over-copper adapter required where applicable |
| Frequency Response | 2 Hz–23.5 kHz |
| Digital-Input Signal-to-Noise Ratio | 108 dB |
| Equalization | 296 total bands; 37 per processed output channel |
| Crossover Slopes | 6–48 dB/octave |
| Automatic Turn-On | Signal, DC-offset, or BTL detection |
| Operating Voltage | 6–17 volts; start/stop operation to 4.5 volts |
| User Presets | 4 |
| Maestro Integration | iDatalink Maestro AR compatible |
| Optional Controller | ARC Audio LR2, sold separately |
| Dimensions | 8.5 × 5.1 × 1.81 inches |
Features
- Eight-input, eight-output Pro-Series DSP
- Designed for active systems and advanced OEM integration
- 32-bit fixed-point processing
- AKM analog conversion architecture
- High-level and low-level differential analog inputs
- Optical and coaxial digital-source support
- Up to 8-volt processed RCA outputs
- ARC Audio DNA software for routing and tuning
- Input summing and matrix mixing
- Per-channel equalization, crossover, phase, and delay control
- Four user presets
- iDatalink Maestro AR compatibility
- Optional LR2 controller and AXP wireless interface
