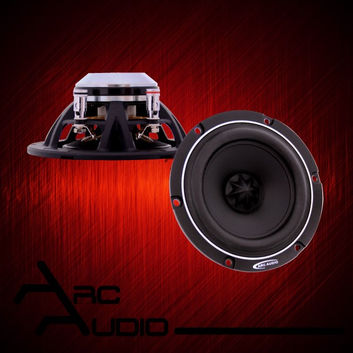

The ARC Audio RS 4.0 is a matched pair of 4-inch raw midrange speakers designed for active sound-quality front stages. Its larger radiating area and 90 Hz lower published response allow it to cover more of the vocal and lower-midrange region than a compact wideband driver while still extending to 11.5 kHz.
The hard-pressed composite papyrus cone is supported by a low-damping rubber surround and mounted in a rigid cast-aluminum basket. A high-flux neodymium motor with an integrated shorting ring is used to control inductance and reduce motor-related non-linearity through the driver’s operating range.
The RS 4.0 is rated for 75 watts RMS, 150 watts maximum, and 91 dB sensitivity. It is supplied as a raw matched pair without passive crossovers or grilles and is intended to be filtered by an external DSP or properly designed crossover network.
Specifications
| Series | RS Series |
|---|---|
| Sold As | Matched pair |
| Speaker Type | Raw midrange |
| Size | 4 inches |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 75 watts |
| Maximum Power | 150 watts |
| Sensitivity | 91 dB |
| Frequency Response | 90 Hz–11.5 kHz |
| Mounting Depth | 1.94 inches |
| Cone | Hard-pressed composite papyrus |
| Surround | Low-damping rubber |
| Basket | Cast aluminum |
| Motor | High-flux neodymium with integrated shorting ring |
| Passive Crossover Included | No |
| Grilles Included | No |
Features
- Matched 4-inch reference midrange pair
- Designed for active sound-quality systems
- Hard-pressed composite papyrus cones
- Low-damping rubber surrounds
- Rigid cast-aluminum baskets
- High-flux neodymium motors
- Integrated motor shorting rings
- 90 Hz–11.5 kHz published response
- 91 dB sensitivity
- Raw-driver format for DSP-controlled systems
