Description

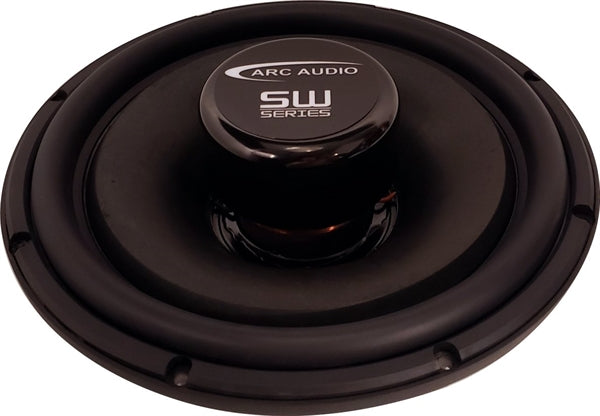

The ARC Audio SW10 is a sound-quality-focused 10-inch ultra-shallow subwoofer for under-seat truck enclosures, behind-seat systems, stealth builds and other installations where conventional mounting depth is unavailable.
A front-mounted N42UH neodymium motor places the motor outside the sealed air chamber in a properly designed front-loaded enclosure. This architecture preserves usable enclosure volume and exposes the motor assembly to open-air cooling. The reinforced cellulose-fiber cone, hydrophobic treatment, low-shore butyl-rubber surround and Nomex/cotton-blend spider support controlled operation through 14.7 mm of one-way linear excursion.
Specifications
| Model | SW10 |
|---|---|
| Nominal size | 10 inches |
| Voice-coil options | Dual 2 ohms or dual 4 ohms |
| RMS power handling | 350 watts |
| Maximum power handling | 700 watts |
| One-way linear excursion | 14.7 mm Xmax |
| Mounting depth | 2.4 inches |
| Recommended sealed enclosure | 0.60 cu. ft. net per driver |
| Motor | Front-mounted N42UH neodymium |
| Voice-coil former | 2.5-inch aluminum |
Features
- Ultra-shallow chassis for depth-restricted installations.
- Front-mounted neodymium motor preserves enclosure volume and improves cooling access.
- Hydrophobic reinforced cellulose-fiber cone.
- Low-shore butyl-rubber surround and Nomex/cotton-blend spider.
- Dual 2-ohm and dual 4-ohm versions support flexible system wiring.
Published enclosure volume is net internal volume per driver. Confirm the current technical drawing before enclosure fabrication.
