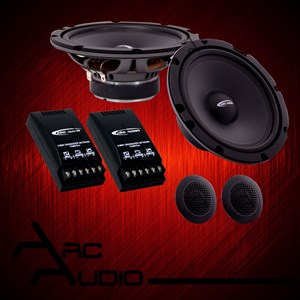

The ARC Audio X2 5.2 is a 5.25-inch two-way component speaker system designed for installations that benefit from separate woofer and tweeter placement. The component layout allows the 27 mm tweeters to be positioned higher or closer to the listening axis while the 5.25-inch woofers remain in the factory door, kick-panel, or custom speaker location.
The system is rated for 75 watts RMS, 150 watts maximum, and 89 dB sensitivity. Its published frequency response extends from 75 Hz to 20 kHz, making it suitable for front-stage upgrades used with a properly selected high-pass crossover and subwoofer support where deeper bass is required.
The 1.9-inch woofer mounting depth should be checked against the factory opening, mounting adapter, window mechanism, and available grille clearance. Crossover configuration, amplifier power, and tweeter mounting should be planned as part of the complete system. Grilles are not included.
Specifications
| Series | X2 Series |
|---|---|
| Speaker Type | 2-way component system |
| Woofer Size | 5.25 inches |
| Tweeter Size | 27 mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 75 watts |
| Maximum Power | 150 watts |
| Sensitivity | 89 dB |
| Frequency Response | 75 Hz–20 kHz |
| Woofer Mounting Depth | 1.9 inches |
| Grilles Included | No |
Features
- 5.25-inch two-way component speaker system
- Separate woofer and tweeter mounting for placement flexibility
- 27 mm tweeters
- 75-watt RMS power handling
- 89 dB sensitivity
- 75 Hz–20 kHz published response
- Shallow 1.9-inch woofer mounting depth
- 4-ohm nominal impedance
- Suitable for factory-location and custom front-stage installations
- Grilles not included
