Description

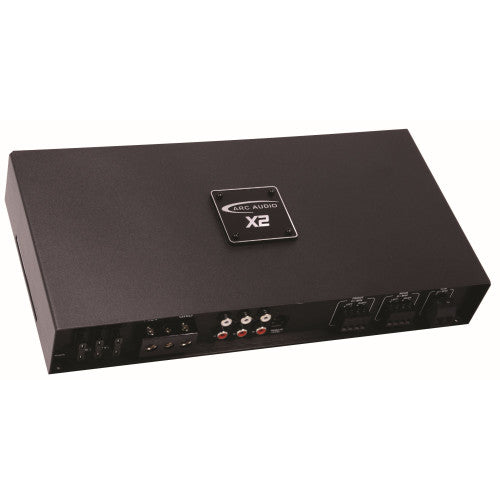

The ARC Audio X2 850.5 is a five-channel Class-D amplifier designed to power an entire audio system from one compact chassis. Four full-range channels can operate component speakers, coaxial speakers, or front and rear speaker systems, while the dedicated fifth channel supplies up to 400 watts RMS to a 2-ohm subwoofer load.
Using one amplifier for the main speakers and subwoofer reduces wiring, installation space, and the number of system connections. The full-range channel pairs can also be bridged when a higher-power two-channel configuration is needed. Built-in high-pass filtering for the full-range channels and a dedicated low-pass section for the subwoofer channel provide the basic crossover control required for common full-system installations.
Balanced differential inputs allow the X2 850.5 to work with aftermarket source units and many factory radios, including speaker-level sources used with the supplied input pigtails. The Level 1 installer-focused chassis uses a rotatable CNC-machined badge, with gain, crossover, and connection access located beneath the removable top panel.
Specifications
| Amplifier Class | Class D |
|---|---|
| Channels | 5: four full-range channels plus one subwoofer channel |
| Full-Range Power at 4 Ohms | 85 watts RMS × 4 |
| Full-Range Power at 2 Ohms | 125 watts RMS × 4 |
| Full-Range Bridged Power at 4 Ohms | 250 watts RMS × 2 |
| Subwoofer Power at 4 Ohms | 225 watts RMS × 1 |
| Subwoofer Power at 2 Ohms | 400 watts RMS × 1 |
| Full-Range Frequency Response | 20 Hz–20 kHz |
| Subwoofer Channel Frequency Response | 20 Hz–230 Hz |
| Channels 1/2 High-Pass Crossover | 50 Hz–500 Hz at 12 dB/octave |
| Channels 3/4 High-Pass Crossover | 50 Hz–500 Hz at 12 dB/octave |
| Subwoofer Low-Pass Crossover | 30 Hz–230 Hz at 12 dB/octave |
| Bass Boost | 0–12 dB at 45 Hz |
| Remote Level Control | Included |
| Input Sensitivity | 200 mV–3.5 V |
| Input Stage | Balanced differential |
| Automatic Turn-On | Signal detect, DC detect, or remote turn-on |
| Fusing | 3 × 30-amp ATC/ATO |
| Dimensions | 12.42 × 6.268 × 2.086 inches |
| Start/Stop Compatibility | Yes; operates below 8 volts |
| Cosmetic Package | Level 1 with rotatable CNC-machined badge |
Features
- All-in-one five-channel Class-D amplifier
- Four full-range speaker channels and one dedicated subwoofer channel
- Bridgeable full-range channel pairs
- Built-in full-range high-pass and subwoofer low-pass crossovers
- Variable bass boost
- Balanced differential inputs for OEM and aftermarket integration
- Speaker-level input compatibility through supplied RCA pigtails
- Signal-sensing and DC-detect automatic turn-on
- Remote subwoofer level control included
- Microprocessor-controlled diagnostic fault reporting
- Compact single-chassis system design reduces wiring and connections
- Removable top panel protects controls and terminals
- Rotatable CNC-machined badge for flexible mounting orientation
- Start/stop vehicle compatibility
