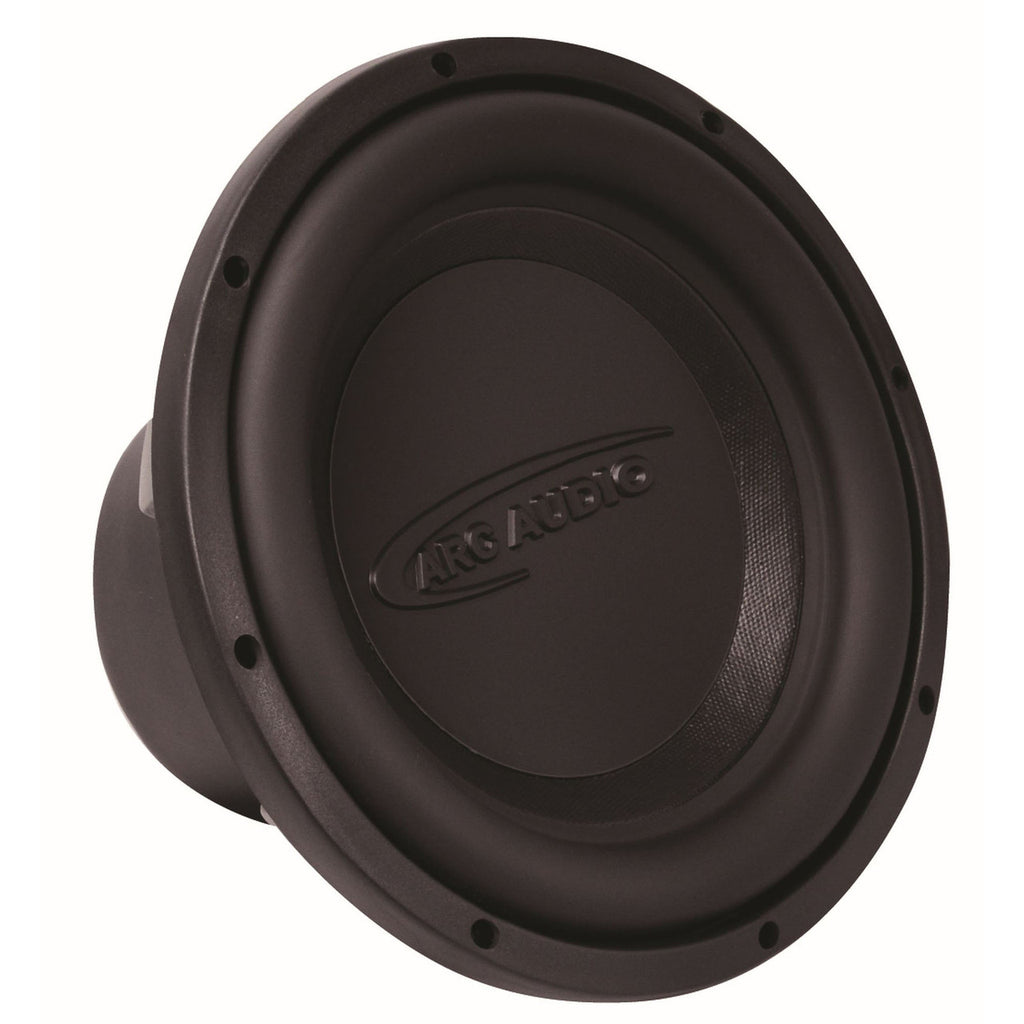

The ARC Audio X210 is a 10-inch X2 Series subwoofer designed for compact sealed-enclosure bass systems. It is offered as the X210 D2 with dual 2-ohm voice coils and the X210 D4 with dual 4-ohm voice coils, allowing the final amplifier load to be selected around the number of subwoofers and the planned wiring configuration.
A composite-fiber cone, high-temperature aluminum voice coil, and hi-roll Conex spider form the moving assembly. The driver provides 13.5 mm of rated linear excursion and handles 200 watts RMS or 400 watts maximum music power.
ARC Audio publishes a sealed-enclosure range of 0.65 to 1.25 cubic feet per driver, with 1.0 cubic foot recommended. The 5.125-inch mounting depth and 9.125-inch cutout diameter should be verified before the enclosure is built.
Specifications
| Series | X2 Series |
|---|---|
| Size | 10 inches |
| Voice-Coil Options | Dual 2 ohms or dual 4 ohms |
| Models | X210 D2 and X210 D4 |
| RMS Power Handling | 200 watts |
| Maximum Music Power | 400 watts |
| Linear Excursion | 13.5 mm Xmax |
| Sensitivity | 85 dB |
| Mounting Depth | 5.125 inches |
| Cutout Diameter | 9.125 inches |
| Recommended Enclosure Type | Sealed |
| Sealed Enclosure Volume | 0.65 cu. ft. minimum; 1.0 cu. ft. recommended; 1.25 cu. ft. maximum |
| Voice Coil | High-temperature aluminum |
| Cone | Composite fiber |
| Spider | Hi-roll Conex |
Features
- 10-inch X2 Series sealed-enclosure subwoofer
- Dual 2-ohm and dual 4-ohm versions available
- Composite-fiber cone
- High-temperature aluminum voice coil
- Hi-roll Conex spider
- 13.5 mm rated linear excursion
- 200-watt RMS power handling
- Compact published sealed-box range
- 1.0-cubic-foot recommended sealed enclosure per driver
- Suitable for single- or multiple-subwoofer systems
