Description
Description

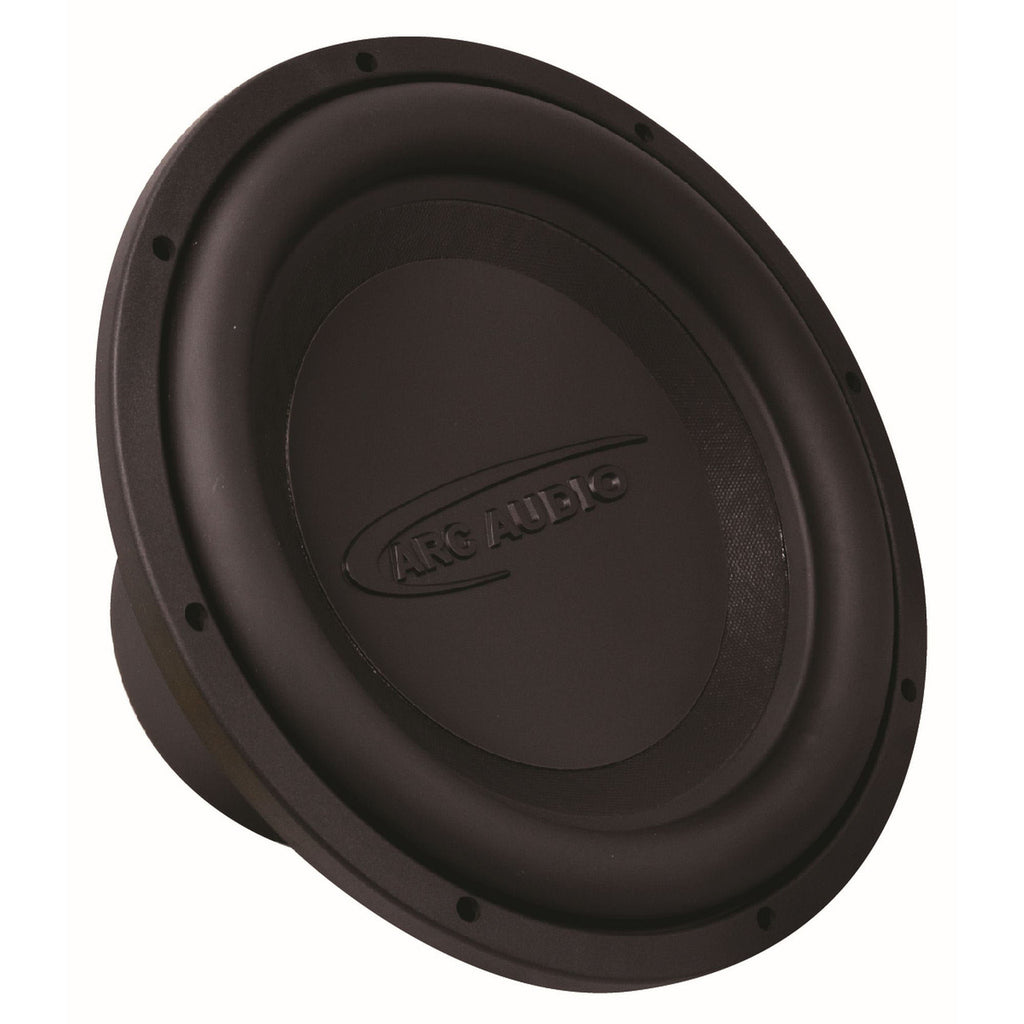

The ARC Audio X212 is a 12-inch X2 Series subwoofer designed for sealed enclosures that require greater cone area and low-frequency capability than the X210 while retaining moderate enclosure requirements. It is offered as the X212 D2 with dual 2-ohm voice coils and the X212 D4 with dual 4-ohm voice coils.
The moving assembly uses a composite-fiber cone, high-temperature aluminum voice coil, and hi-roll Conex spider. The driver provides 13.5 mm of rated linear excursion and handles 250 watts RMS or 500 watts maximum music power.
ARC Audio publishes a sealed-enclosure range of 1.0 to 1.5 cubic feet per driver, with 1.25 cubic feet recommended. The 5.625-inch mounting depth and 11.125-inch cutout diameter should be confirmed before enclosure construction.
Specifications
| Series | X2 Series |
|---|---|
| Size | 12 inches |
| Voice-Coil Options | Dual 2 ohms or dual 4 ohms |
| Models | X212 D2 and X212 D4 |
| RMS Power Handling | 250 watts |
| Maximum Music Power | 500 watts |
| Linear Excursion | 13.5 mm Xmax |
| Sensitivity | 86 dB |
| Mounting Depth | 5.625 inches |
| Cutout Diameter | 11.125 inches |
| Recommended Enclosure Type | Sealed |
| Sealed Enclosure Volume | 1.0 cu. ft. minimum; 1.25 cu. ft. recommended; 1.5 cu. ft. maximum |
| Voice Coil | High-temperature aluminum |
| Cone | Composite fiber |
| Spider | Hi-roll Conex |
Features
- 12-inch X2 Series sealed-enclosure subwoofer
- Dual 2-ohm and dual 4-ohm versions available
- Composite-fiber cone
- High-temperature aluminum voice coil
- Hi-roll Conex spider
- 13.5 mm rated linear excursion
- 250-watt RMS power handling
- 1.25-cubic-foot recommended sealed enclosure per driver
- Greater cone area for increased low-frequency capability
- Suitable for single- or multiple-subwoofer systems
