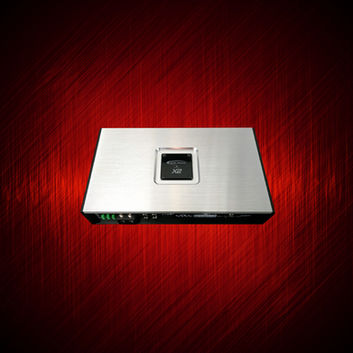

The ARC Audio X2 800.8 DSP combines eight channels of high-efficiency Class-D amplification with a twelve-channel digital signal processor. It is intended for compact active systems and OEM-integration upgrades that need amplified outputs, processed expansion outputs, and detailed signal control from a single chassis.
The eight bridgeable amplifier channels deliver 50 watts RMS per channel into 4 ohms or 85 watts RMS per channel into 2 ohms. Four bridged channel pairs can produce 170 watts RMS each into 4 ohms. Four additional DSP-controlled preamp outputs can feed external amplifiers, providing twelve total processed output channels.
The processor supports high-level signals up to 32 volts, Toslink optical input, digital-over-copper input, iDatalink Maestro AR integration, input summing, matrix mixing, all-pass filters, crossover control, time alignment, and six system presets. The DSP operates with 32-bit processing and 96 kHz analog conversion. ARC Audio DNA software provides twelve bands of input equalization per channel, ten bands of output equalization per channel, parametric or one-third-octave operation, and precise routing for factory or aftermarket source configurations.
Specifications
| Amplifier Class | Class D |
|---|---|
| Amplified Channels | 8 bridgeable channels |
| Power Output at 4 Ohms | 50 watts RMS × 8 |
| Power Output at 2 Ohms | 85 watts RMS × 8 |
| Bridged Power at 4 Ohms | 170 watts RMS × 4 |
| Amplifier Stability | 2-ohm stereo / 4-ohm bridged |
| DSP Processing Channels | 12 |
| DSP Preamp Outputs | 4 |
| DSP Engine | 32-bit, 294/295 MHz |
| ADC Resolution / Sample Rate | 32-bit / 96 kHz |
| DAC Resolution / Sample Rate | 32-bit / 96 kHz |
| Optical Digital Input | Toslink optical |
| Digital-Over-Copper Input | Maestro-integrated digital input |
| Input Equalization | 12 bands per channel |
| Output Equalization | 10 bands per channel |
| EQ Types | Parametric or one-third octave |
| Signal Summing | 12-channel input summing |
| Mixer | Full input/output matrix |
| All-Pass Filters | First- and second-order |
| Crossover Alignments | Butterworth, Linkwitz-Riley, and Bessel |
| Crossover Slopes | 6–48 dB/octave |
| Time Alignment | 0.01 ms increments |
| Maestro Integration | iDatalink Maestro AR compatible |
| System Presets | 6 |
| Preset Switching Time | 20 ms |
| Firmware Updates | USB and over-the-air |
| High-Level Input Range | Up to 32 V |
| Automatic Turn-On | BTL, DC-offset, and signal-detect compatible |
| Stop/Start Compatibility | Operational down to 5 V |
| Maximum Operating Voltage | 17 V |
| Frequency Response | 10 Hz–40 kHz |
| Certifications | CTA-2006-B certified; FCC Part 15 compliant |
Features
- Eight-channel Class-D amplifier with twelve DSP-controlled outputs
- 50 watts RMS × 8 at 4 ohms
- 85 watts RMS × 8 at 2 ohms
- Four bridgeable channel pairs rated at 170 watts RMS into 4 ohms
- Four processed preamp outputs for adding external amplifiers
- ARC Audio DNA software for complete signal routing and tuning
- 32-bit DSP engine with 96 kHz analog-to-digital and digital-to-analog conversion
- High-level input capability up to 32 volts
- Toslink optical and digital-over-copper inputs
- iDatalink Maestro AR OEM integration compatibility
- Twelve-channel signal summing and full matrix mixing
- Parametric or one-third-octave input and output equalization
- Butterworth, Linkwitz-Riley, and Bessel crossover alignments
- First- and second-order all-pass filters
- Per-channel time alignment in 0.01 ms increments
- Six system presets with rapid preset switching
- USB and over-the-air firmware updating
- Start/stop compatible operation and multiple automatic turn-on modes
