Description
Description

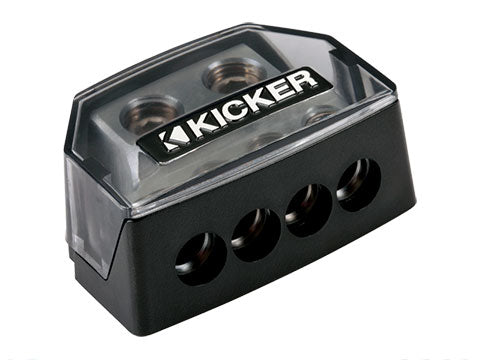

The Kicker 46DB4 is a solid-brass power distribution block for dividing one or two large-gauge power feeds into as many as four amplifier or accessory outputs. Versa-Gauge™ connections accept a range of cable sizes without requiring separate reducing adapters.
Single-wrench 5 mm hardware simplifies installation and service. Cable gauge, fuse protection and total circuit current must be matched to the connected equipment.
Specifications
| Model | 46DB4 |
|---|---|
| Product type | Power distribution block |
| Construction | Solid brass |
| Input connections | Two connections accepting 1/0–8 AWG |
| Output connections | Four connections accepting 4–8 AWG |
| Connector system | Versa-Gauge™ |
| Hardware | Single-wrench 5 mm |
| Application | Multi-amplifier and accessory power distribution |
Features
- Solid-brass construction supports dependable current transfer.
- Two large-gauge inputs allow flexible source-cable routing.
- Four outputs distribute power to multiple amplifiers or accessories.
- Versa-Gauge™ connections accept multiple cable sizes.
- Single 5 mm wrench size simplifies installation and maintenance.
- Compact block organizes multi-amplifier power wiring.
- Use correctly sized upstream fuse protection for the main cable and each downstream circuit as required.
