Description
Description

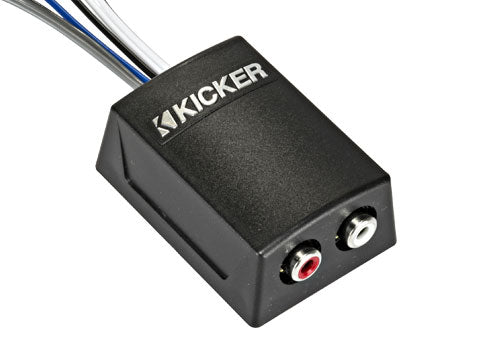

The Kicker 46KISLOC2 is a two-channel line-output converter that changes speaker-level audio into RCA output and generates a 12-volt amplifier turn-on lead without requiring a separate 12-volt input. It is designed for adding aftermarket amplification to factory radios that do not provide preamp outputs or a conventional remote wire.
The KISLOC2 accepts up to 55 watts or 16 volts of input, provides up to 8 volts of RCA output and maintains a flat 20 Hz to 20 kHz frequency response. DC-offset sensing activates the 12-volt, 100 mA remote output.
Specifications
| Model | 46KISLOC2 |
|---|---|
| Channels | 2 |
| Input capacity | Up to 55 watts / 16 volts |
| RCA output | Up to 8 volts |
| Frequency response | 20 Hz–20 kHz |
| Remote turn-on output | 12 volts, 100 mA |
| Turn-on sensing | DC offset |
| Smart-radio load | 60 ohms for compatible factory radios |
| Separate 12-volt input required | No |
Features
- Converts two speaker-level channels to low-level RCA output.
- Generates a 12-volt remote turn-on lead without a separate 12-volt input connection.
- Flat 20 Hz–20 kHz response preserves full-range audio content.
- DC-offset sensing automatically detects source-unit operation.
- Applies a 60-ohm smart load for compatible monitored factory-radio outputs.
- Accepts up to 55 watts or 16 volts of speaker-level input.
- Produces up to 8 volts of RCA output for a strong amplifier input signal.
