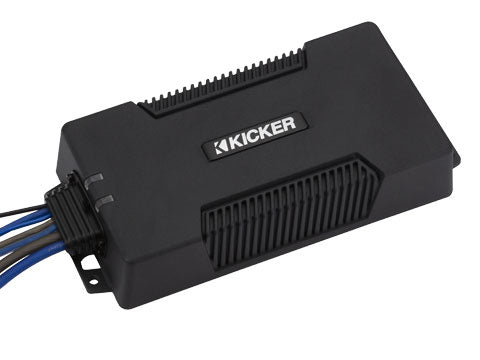

The Kicker PXA600.1 is a compact waterproof Class-D mono amplifier designed for motorcycles, UTVs, hot rods, custom vehicles and other installations where space and environmental protection matter. It delivers up to 600 watts into one ohm for a higher-output powersports or compact-vehicle subwoofer system.
IP66 and IP67 certifications protect the amplifier against dust and water exposure. Selectable low-pass filtering, a fixed subsonic filter and bass boost provide basic subwoofer-system control, while DC-offset and 12-volt trigger modes support factory or aftermarket integration.
Specifications
| Model | 48PXA6001 / PXA600.1 |
|---|---|
| Amplifier class | Class D |
| RMS power at 1 ohm | 600 watts x 1 |
| RMS power at 2 ohms | 500 watts x 1 |
| RMS power at 4 ohms | 300 watts x 1 |
| Dynamic power | 850 watts |
| Frequency response | 25 Hz–200 Hz, +0/-3 dB |
| Low-pass filter | 60, 80, 100 or 120 Hz; 12 dB/octave |
| Subsonic filter | 25 Hz, 24 dB/octave |
| Bass boost | 0 or +6 dB at 40 Hz |
| Minimum impedance | 1 ohm |
| Turn-on modes | DC offset or 12-volt trigger |
| Ingress ratings | IP66 and IP67 |
| Remote compatibility | CXARC, sold separately |
| Dimensions | 4-1/2 in. W x 1-7/8 in. H x 9-3/4 in. L |
| Included | Amplifier, two DC power couplers, stainless-steel mounting hardware and customer information card |
Features
- Compact Class-D mono amplifier for motorcycles, UTVs, hot rods and space-limited vehicles.
- IP66/IP67 certified waterproof and dustproof construction.
- One-ohm-stable mono output delivers up to 600 watts for a compact subwoofer system.
- Selectable low-pass frequencies simplify basic system setup.
- Fixed 25 Hz subsonic filter protects the subwoofer from excessive low-frequency excursion.
- Selectable 40 Hz bass boost provides additional low-frequency emphasis when appropriate.
- DC-offset or 12-volt remote turn-on options support factory and aftermarket source units.
- Solderless, crimpless DC power and ground couplers are included.
- Stainless-steel mounting hardware resists corrosion in powersports applications.
