Description
Description

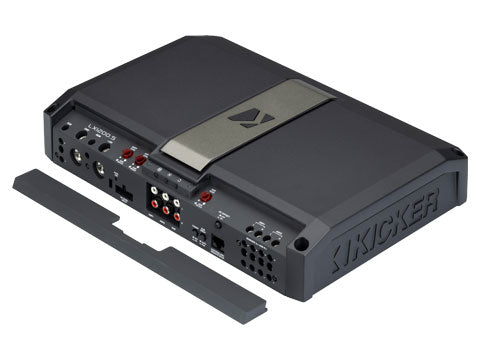

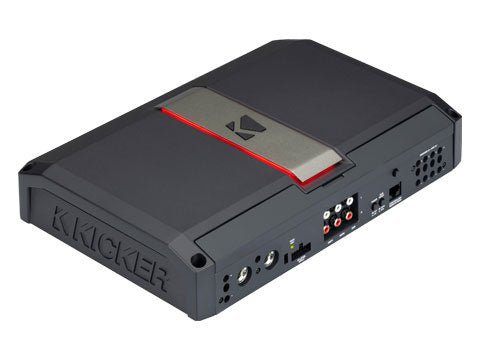

The Kicker LX1200.5 combines four full-range channels and a dedicated mono subwoofer channel in one premium Class-D chassis. It is designed for complete vehicle systems that need strong front-stage power and up to 700 watts for bass without using separate amplifiers.
FIT+™ differential inputs accept low-level or speaker-level signals up to 40 volts. Gain-match LEDs, selectable Linkwitz-Riley and Butterworth crossover functions, KickEQ+™ bass control, the included LX Control Center and the included LX Remote Control provide the tools needed for integration, setup and daily adjustment.
Specifications
| Model | 51LX12005 / LX1200.5 |
|---|---|
| Full-range RMS power at 4 ohms | 125 watts x 4 |
| Full-range RMS power at 2 ohms | 175 watts x 4 |
| Bridged RMS power at 4 ohms | 350 watts x 2 |
| Subwoofer RMS power at 1 ohm | 700 watts x 1 |
| Subwoofer RMS power at 2 ohms | 550 watts x 1 |
| Subwoofer RMS power at 4 ohms | 300 watts x 1 |
| Dynamic power | 1,500 watts |
| Frequency response | 20 Hz–20 kHz full-range; 10 Hz–160 Hz subwoofer |
| Input system | FIT+™ low- or high-level input up to 40 volts |
| Setup features | Gain-match LEDs; Linkwitz-Riley and Butterworth crossover options |
| Subwoofer control | KickEQ+™ parametric bass boost |
| Included controls | LX Control Center and LX Remote Control |
| Chassis | Reversible center panel with RGB accent lighting |
| Dimensions | 2-3/8 in. H x 8-7/16 in. W x 12-5/8 in. L |
Features
- Premium in-house KICKER Class-D amplifier platform designed for high-output sound-quality and sound-pressure systems.
- FIT+™ differential inputs accept low-level or speaker-level signals up to 40 volts.
- Gain-match LEDs help establish correct input sensitivity.
- Reversible center panel with selectable RGB accent lighting.
- Multiple turn-on options plus thermal, circuit and voltage protection.
- Included LX Control Center supports amplifier setup and system monitoring.
- Linkwitz-Riley and Butterworth crossover options support flexible active-system and conventional speaker-system tuning.
- Five-channel layout powers a four-speaker system and subwoofer from one chassis.
- Dedicated subwoofer channel is stable to one ohm and includes KickEQ+™ control.
- Included LX Remote Control provides convenient subwoofer-level adjustment.
