Description
Description

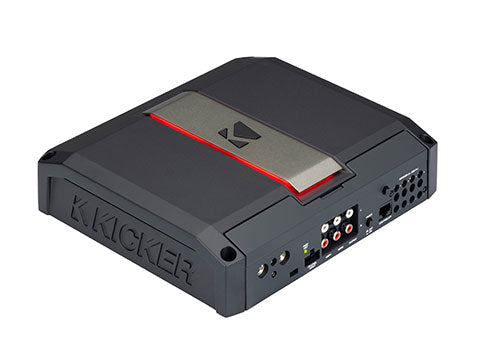

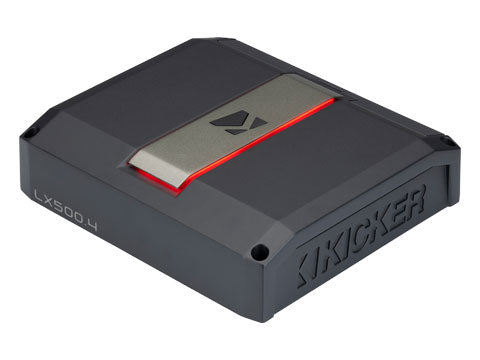

The Kicker LX500.4 is a premium full-range Class-D four-channel amplifier designed for high-output front-stage, rear-fill and active speaker systems. It delivers 125 watts per channel at four ohms, 225 watts per channel at two ohms, or 450 watts per channel when bridged into four ohms.
FIT+™ differential inputs accept low-level or speaker-level signals up to 40 volts, while gain-match LEDs and selectable Linkwitz-Riley or Butterworth crossover functions simplify accurate system setup. The included LX Control Center provides convenient monitoring and adjustment.
Specifications
| Model | 51LX5004 / LX500.4 |
|---|---|
| RMS power at 4 ohms | 125 watts x 4 |
| RMS power at 2 ohms | 225 watts x 4 |
| Bridged RMS power at 4 ohms | 450 watts x 2 |
| Dynamic power | 1,100 watts |
| Frequency response | 20 Hz–20 kHz |
| Signal-to-noise ratio | Greater than 95 dB, A-weighted |
| Input system | FIT+™ low- or high-level input up to 40 volts |
| Setup features | Gain-match LEDs; Linkwitz-Riley and Butterworth crossover options |
| Included control | LX Control Center |
| Chassis | Reversible center panel with RGB accent lighting |
| Dimensions | 2-3/8 in. H x 8-7/16 in. W x 9-7/16 in. L |
Features
- Premium in-house KICKER Class-D amplifier platform designed for high-output sound-quality and sound-pressure systems.
- FIT+™ differential inputs accept low-level or speaker-level signals up to 40 volts.
- Gain-match LEDs help establish correct input sensitivity.
- Reversible center panel with selectable RGB accent lighting.
- Multiple turn-on options plus thermal, circuit and voltage protection.
- Included LX Control Center supports amplifier setup and system monitoring.
- Linkwitz-Riley and Butterworth crossover options support flexible active-system and conventional speaker-system tuning.
- Four-channel operation supports full-range, bi-amplified or bridged system configurations.
- Class-D architecture reduces current draw and heat compared with conventional high-power designs.
