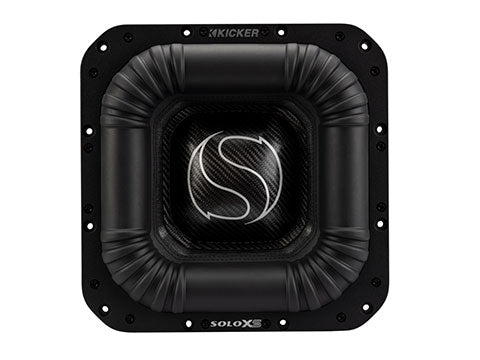

Description
The Kicker SoloXS L7XS 12-inch is an Excess-series square competition subwoofer available in dual 1-ohm and dual 2-ohm versions. Kicker recommends 1,500–3,000 watts RMS of amplifier power.
A three-inch voice coil, massive ferrite motor, heavy-duty suspension and optimized Forced-Air Cooling support extreme excursion and thermal capacity. The preassembled cone, voice coil and spider can be replaced without replacing the complete motor and basket.
Specifications
| Models | 52L7XS121 and 52L7XS122 |
|---|---|
| Nominal size | 12 inches / 30 cm |
| Voice-coil configurations | Dual 1 ohm or dual 2 ohm |
| Recommended amplifier power | 1,500–3,000 watts RMS |
| Frequency response | 20 Hz–100 Hz |
| Voice-coil diameter | 3 inches / 75 mm |
| Linear excursion, Xmax | 43.1 mm |
| Mounting cutout | 11-1/16 inches / 28.1 cm |
| Mounting depth | 10-1/8 inches / 25.7 cm |
| Serviceability | Field-replaceable preassembled cone, voice-coil and spider assembly |
Features
- Excess-series SoloXS platform for extreme-output competition systems.
- Three-inch voice coil and massive ferrite motor provide substantial thermal and mechanical capacity.
- 43.1 mm Xmax supports very high displacement.
- Optimized Forced-Air Cooling manages heat during sustained operation.
- Dual 1-ohm and dual 2-ohm versions support different amplifier configurations.
- Requires a competition-grade enclosure, electrical system, wiring and protective filtering.
