Description

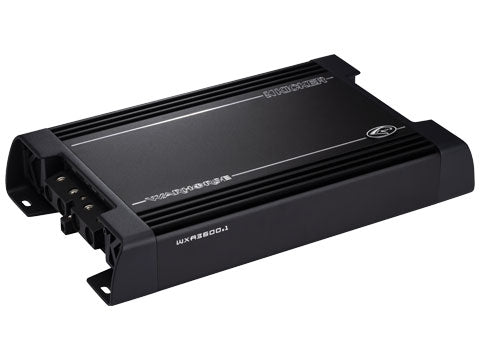

The Kicker Warhorse WXA3600.1 is a full-bridge Class-D monoblock amplifier engineered in-house for ultra-high-output subwoofer systems. It delivers 3,600 watts RMS at 1 ohm and as much as 5,000 watts of dynamic power.

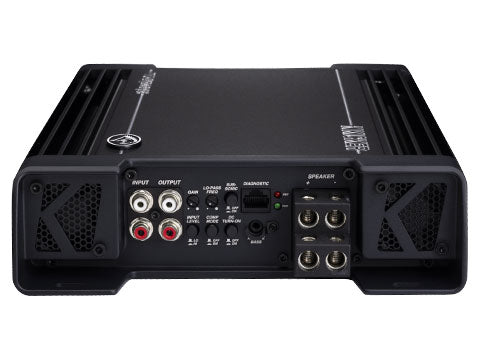

Dual 1/0-AWG power and ground connections support the amplifier's current demand, while four microcontroller-regulated cooling fans manage temperature. Competition Mode fixes crossover and gain settings for repeatable multi-amplifier installations. FIT+ differential inputs accept factory or aftermarket source signals.
Specifications
| Model | 49WXA36001 / WXA3600.1 |
|---|---|
| Amplifier topology | Full-bridge Class D |
| RMS power at 1 ohm | 3,600 watts x 1 |
| RMS power at 2 ohms | 2,500 watts x 1 |
| RMS power at 4 ohms | 1,400 watts x 1 |
| Dynamic power | 5,000 watts |
| Frequency response | 10 Hz–200 Hz |
| Input sensitivity | 125 mV–5 V low level; 1–40 V high level |
| Low-pass filter | 50–200 Hz, 24 dB/octave |
| Subsonic filter | Defeatable 15 Hz, 24 dB/octave |
| Cooling | Four microcontroller-regulated fans |

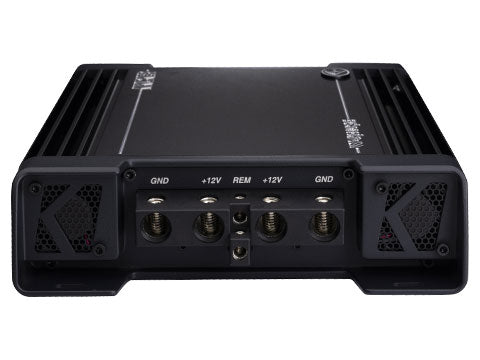

| Power connections | Dual 1/0-AWG power and ground connections |

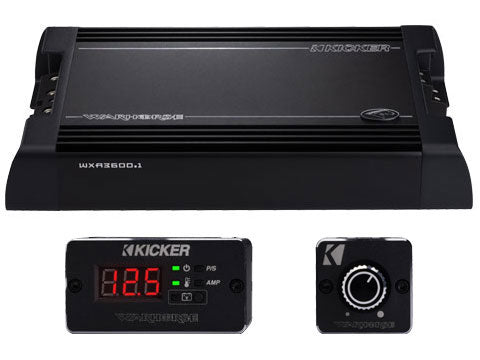

| Included controls | Magnetic diagnostic tool and magnetic-mount bass remote |
| Dimensions | 2-9/16 in. H x 9-1/8 in. W x 15-3/8 in. L |
Features
- Full-bridge Class-D topology for ultra-high-output subwoofer systems.
- One-ohm-stable output delivers 3,600 watts RMS.
- Competition Mode prevents setting drift and supports repeatable gain matching.
- FIT+ differential inputs support factory and aftermarket source units.
- Four regulated cooling fans manage temperature during sustained output.
- Remote power can be daisy-chained across multiple amplifiers.
- Included diagnostic tool displays voltage and amplifier-protection status.
- Substantial electrical-system, wiring and fuse support is required.
