Description

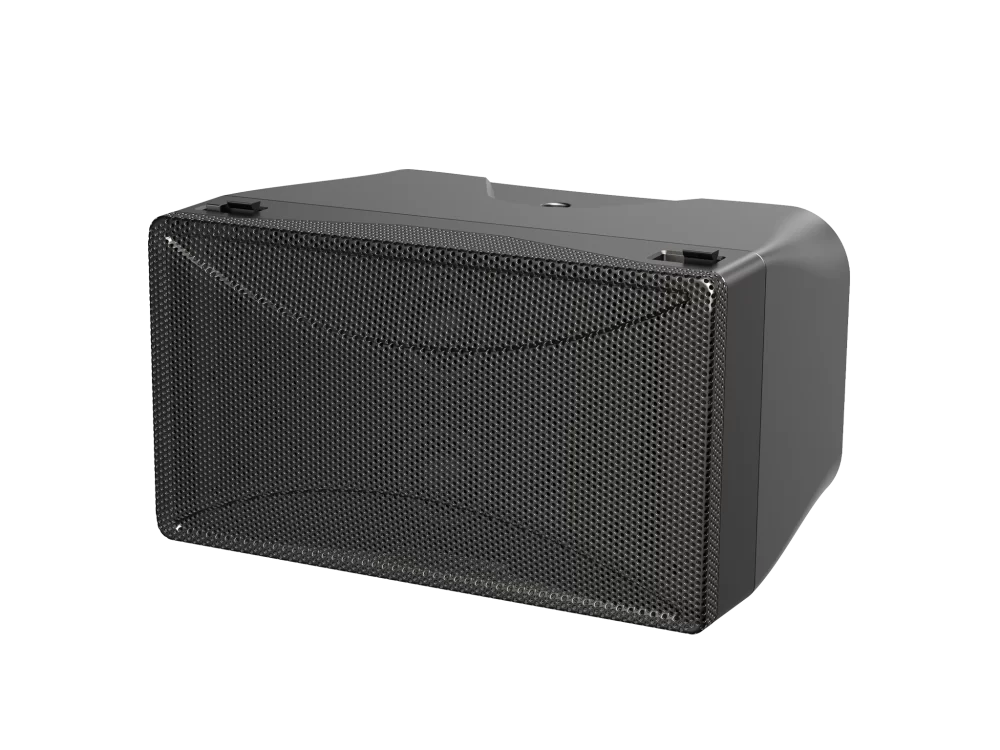

The AudioCenter Butterfly 4 CA is a compact multipurpose micro-line-array loudspeaker designed for installed sound systems that need both low-impedance and 70V/100V distributed-audio operation. One 4-inch low-frequency driver and two 1-inch soft-dome high-frequency drivers are arranged around AudioCenter’s T-EYE™ treble layout at the center front of the cabinet for broad near-field coverage and extended high-frequency response.
The modular enclosure can be used as a single point-source loudspeaker or combined with multiple cabinets to form a compact array. Its 100-degree horizontal by 20-degree vertical coverage pattern supports speech and music reinforcement in meeting rooms, hospitality spaces, retail environments, houses of worship, exhibits, and other small to medium installed-audio applications.
The Butterfly 4 CA includes a smart passive crossover, a dedicated driver-protection circuit, an IP54-rated ABS cabinet, aluminum grille, and an all-weather protective input connector. The selectable transformer provides 70V and 100V taps while the 16-ohm low-impedance mode supports conventional amplifier systems.
Specifications
| Product Type | Multipurpose micro-line-array loudspeaker |
|---|---|
| Driver Configuration | 1 × 4-inch low-frequency driver with 1-inch voice coil; 2 × 1-inch soft-dome high-frequency drivers |
| Low-Impedance Power | 60 watts |
| Nominal Impedance | 16 ohms |
| 70V Transformer Taps | 2.5, 5, 10, and 20 watts |
| 100V Transformer Taps | 5, 10, and 20 watts |
| Frequency Response | 100 Hz–22 kHz (-10 dB) |
| Horizontal Coverage | 100° |
| Vertical Coverage | 20° |
| Maximum Calculated SPL | 111 dB continuous / 117 dB peak at 1 meter |
| Crossover | Passive |
| Input Connection | All-weather protective connector |
| Enclosure | IP54-rated ABS |
| Grille | Aluminum mesh |
| Array Angle Adjustment | 0° or 4° |
| Pole / Mount Thread | M10 |
| Optional Accessories | Hanging bracket, wall-mount bracket, and support bracket |
| Dimensions | 215 × 122 × 165 mm |
| Net Weight | 2.5 kg |
Features
- Single-cabinet point-source or multi-cabinet line-array operation
- AudioCenter T-EYE™ high-frequency driver arrangement
- Customized ProDriver transducers
- Smart passive-crossover design
- Dedicated driver-protection circuit
- High-Z 70V/100V and 16-ohm low-Z operation
- IP54 weather-resistant cabinet
- Durable ABS enclosure and aluminum grille
- Compact installation footprint
- Flexible mounting and array accessories available separately
