Description
Description

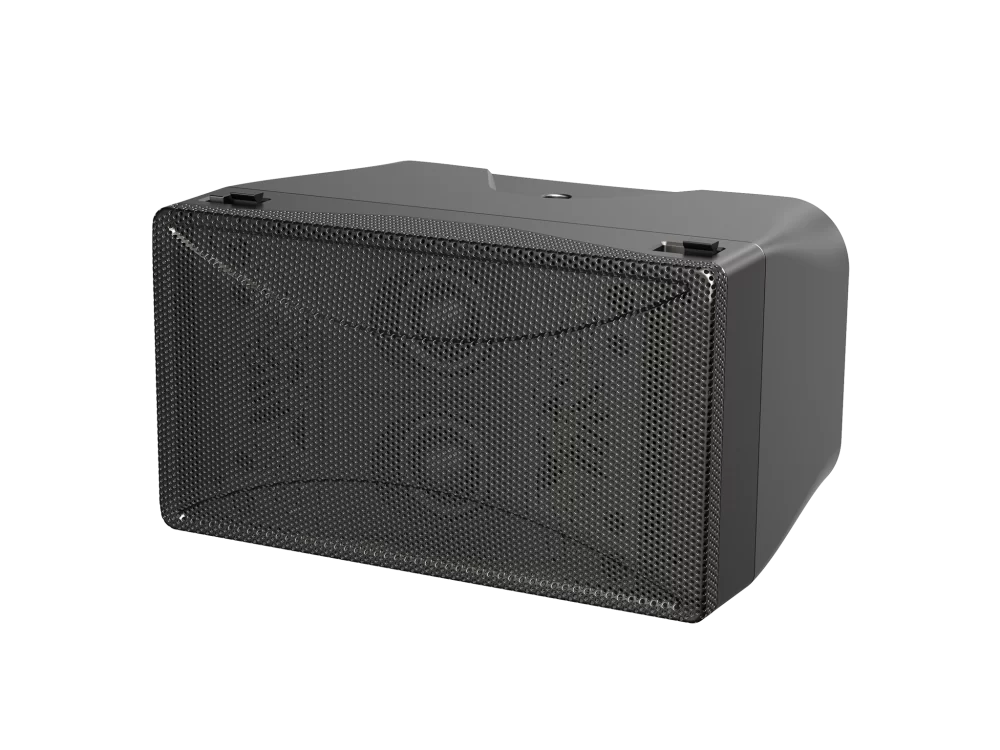

The AudioCenter Butterfly 4 PRO is a compact passive micro-line-array loudspeaker that can operate individually as a point source or in multiples as a small line array. One 4-inch low-frequency driver and two 1-inch soft-dome high-frequency drivers use AudioCenter’s T-EYE™ centered array layout to provide wide near-field coverage and detailed high-frequency reproduction from a compact enclosure.
The 16-ohm impedance makes it practical to connect multiple cabinets to a compatible professional amplifier while maintaining manageable system loading. Its 100-degree horizontal by 20-degree vertical coverage pattern is suited to speech and music reinforcement in meeting spaces, hospitality venues, exhibits, houses of worship, retail environments, and other installed-audio applications.
A smart passive crossover, customized ProDriver transducers, and a dedicated driver-protection circuit are built into the durable ABS cabinet. The enclosure supports 0-degree and 4-degree inter-cabinet angles and accepts optional hanging, wall-mount, and support brackets.
Specifications
| Product Type | Multipurpose micro-line-array loudspeaker |
|---|---|
| Driver Configuration | 1 × 4-inch low-frequency driver with 1-inch voice coil; 2 × 1-inch soft-dome high-frequency drivers |
| Power Handling | 60 watts |
| Nominal Impedance | 16 ohms |
| Frequency Response | 100 Hz–22 kHz (-10 dB) |
| Horizontal Coverage | 100° |
| Vertical Coverage | 20° |
| Maximum Calculated SPL | 111 dB continuous / 117 dB peak at 1 meter |
| Crossover | Passive |
| Input Connection | 4-pin Speakon |
| Enclosure | ABS |
| Grille | Aluminum mesh |
| Array Angle Adjustment | 0° or 4° |
| Pole / Mount Thread | M10 |
| Optional Accessories | Hanging bracket, wall-mount bracket, and support bracket |
| Dimensions | 215 × 122 × 165 mm |
| Net Weight | 2.3 kg |
Features
- Single-cabinet point-source or multi-cabinet line-array operation
- AudioCenter T-EYE™ high-frequency driver arrangement
- Customized ProDriver transducers
- Smart passive-crossover design
- Dedicated driver-protection circuit
- 16-ohm impedance supports practical multi-cabinet system design
- Durable ABS enclosure and aluminum grille
- Compact dimensions for discreet installations
- Simple 4-pin Speakon connection
- Optional array and wall-mount accessories
