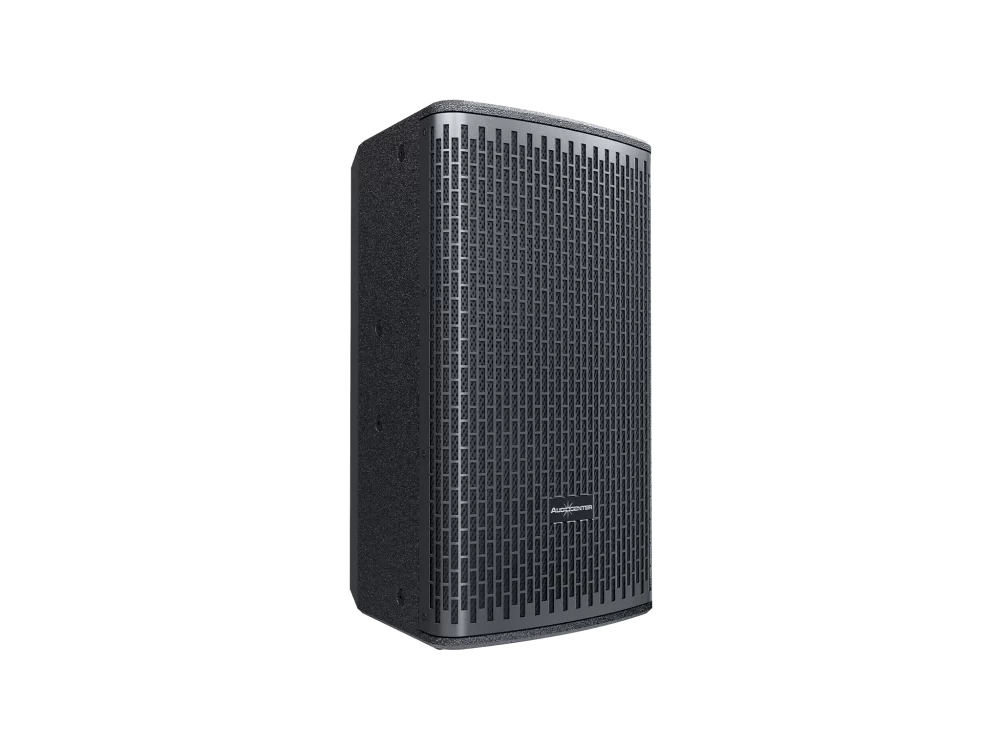

The AudioCenter GT508A is a compact active DSP-controlled full-range loudspeaker built around AudioCenter’s BrainCore™ technology. Its 8-inch low-frequency driver and 1-inch-exit high-frequency driver provide a portable point-source system for speech, music playback, small events, fixed installations, stage fill, and systems used with a separate subwoofer.
The current GT platform uses a 1,100-watt RMS Class-D amplifier, 48 kHz DSP with FIR filtering, and three application presets: MAIN, SPEECH, and W/SUB. The rotatable 90-by-60-degree coverage pattern allows the cabinet to be oriented vertically or horizontally according to the installation and audience area.
The CNC-machined plywood cabinet has a durable polyurea coating, iron grille, M8 suspension points, and a 35 mm pole socket with 0-degree and 10-degree positions. Fan-assisted cooling and comprehensive electrical and thermal protection support professional portable and installed use.
Acoustic Specifications
| Product Type | Active DSP-controlled full-range loudspeaker |
|---|---|
| Frequency Response | 65 Hz–20 kHz (-10 dB) |
| Coverage | 90° × 60°, rotatable |
| Maximum Calculated SPL | 119 dB continuous / 125 dB peak at 1 meter |
| Low-Frequency Driver | Customized 8-inch driver with 2-inch voice coil |
| High-Frequency Driver | Customized driver with 1.75-inch voice coil and 1-inch exit |
| DSP | 48 kHz sampling with FIR filtering |
| Presets | MAIN, SPEECH, and W/SUB |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 1,100 watts |
| Peak Power | 2,200 watts |
| Amplifier Frequency Response | 20 Hz–20 kHz, ±0.5 dB |
| Intermodulation Distortion | Less than 0.05% |
| Total Harmonic Distortion | Less than 0.05% |
| Signal Input | Female XLR / 6.35 mm combo |
| Signal Output | Male XLR |
| Power Input | IEC |
| Working Voltage | 100–130 or 220–240 volts AC, 50/60 Hz |
| Power Consumption | 50 watts at 1/8 output power |
Cabinet and Installation
| Cabinet Material | CNC-machined plywood |
|---|---|
| Finish | Durable polyurea coating |
| Grille | Iron mesh |
| Handle | 1 top |
| Suspension Hardware | M8 threaded points |
| Pole Mount | 35 mm socket with 0° or 10° positions |
| Optional Accessories | Horizontal U-bracket, cover, pole bar, and flight case |
| Dimensions | 245 × 447 × 320 mm |
| Net Weight | 13 kg |
Features
- BrainCore™ active loudspeaker platform
- 48 kHz DSP with FIR filtering
- MAIN, SPEECH, and W/SUB presets
- Rotatable 90° × 60° coverage
- 1,100-watt RMS Class-D amplifier
- Fan-assisted cooling
- DC, short-circuit, thermal, input-overload, output-overload, soft-start, overvoltage, and undervoltage protection
- Multipurpose cabinet for pole-mounted, suspended, and horizontal use
- CNC plywood construction with polyurea coating
