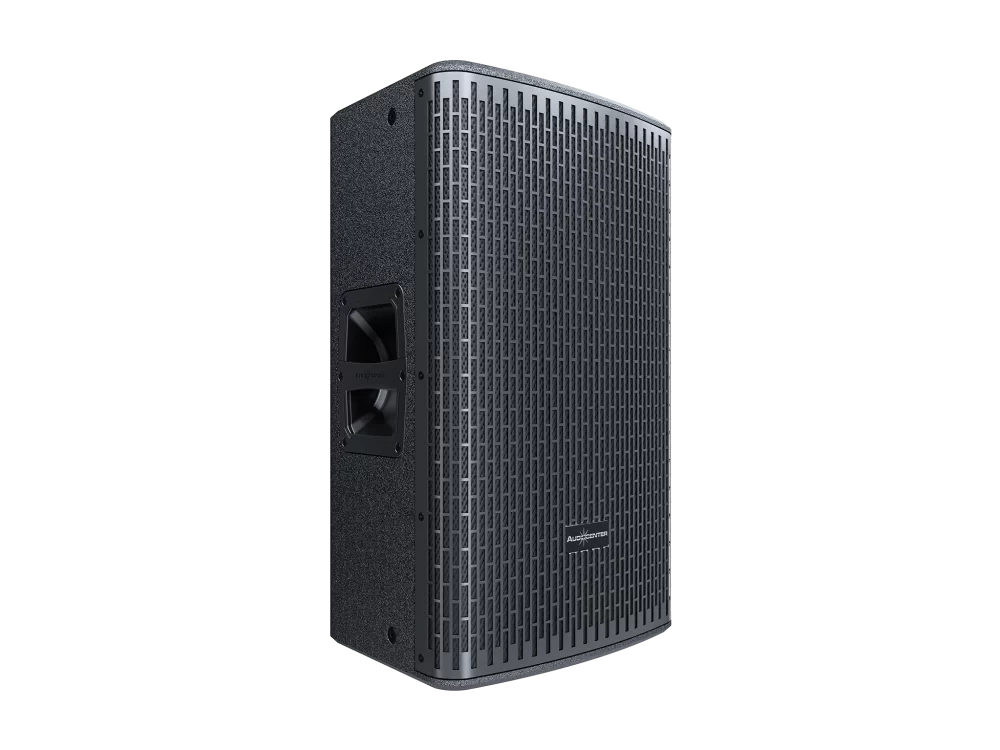

The AudioCenter GT512A is a 12-inch active DSP-controlled full-range loudspeaker for professional portable and installed sound systems. AudioCenter’s BrainCore™ platform combines a customized 12-inch low-frequency driver, a 1-inch-exit high-frequency driver, Class-D amplification, and FIR-based DSP in one self-powered enclosure.
The GT512A provides 1,100 watts RMS, a published maximum calculated output of 128 dB continuous and 134 dB peak, and a 42 Hz to 20 kHz response. The integrated 48 kHz processor includes MAIN, LF BOOST, and W/SUB presets for stand-alone use or operation with a separate subwoofer.
The rotatable 90-by-60-degree coverage pattern and symmetrical 45-degree monitor angles allow the cabinet to serve as a front-of-house speaker or floor monitor. CNC-machined plywood, a polyurea finish, suspension points, and dual-position pole mounting support touring and fixed-installation use.
Acoustic Specifications
| Product Type | Active DSP-controlled full-range loudspeaker |
|---|---|
| Frequency Response | 42 Hz–20 kHz (-10 dB) |
| Coverage | 90° × 60°, rotatable |
| Maximum Calculated SPL | 128 dB continuous / 134 dB peak at 1 meter |
| Low-Frequency Driver | Customized 12-inch driver with 3-inch voice coil |
| High-Frequency Driver | Customized driver with 1.75-inch voice coil and 1-inch exit |
| DSP | 48 kHz sampling with FIR filtering |
| Presets | MAIN, LF BOOST, and W/SUB |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 1,100 watts |
| Peak Power | 2,200 watts |
| Amplifier Frequency Response | 20 Hz–20 kHz, ±0.5 dB |
| Intermodulation Distortion | Less than 0.05% |
| Total Harmonic Distortion | Less than 0.05% |
| Signal Input | Female XLR / 6.35 mm combo |
| Signal Output | Male XLR |
| Power Input | IEC |
| Working Voltage | 100–130 or 220–240 volts AC, 50/60 Hz |
| Power Consumption | 95 watts at 1/8 output power |
Cabinet and Installation
| Cabinet Material | CNC-machined plywood |
|---|---|
| Finish | Durable polyurea coating |
| Grille | Iron mesh |
| Handles | 2 side |
| Monitor Angle | Symmetrical 45° |
| Suspension Hardware | M8 threaded points |
| Pole Mount | 35 mm socket with 0° or 10° positions |
| Optional Accessories | Horizontal U-bracket, cover, pole bar, and flight case |
| Dimensions | 355 × 599 × 349 mm |
| Net Weight | 21 kg |
Features
- BrainCore™ active loudspeaker platform
- 48 kHz DSP with FIR filtering
- MAIN, LF BOOST, and W/SUB presets
- Rotatable 90° × 60° coverage
- Symmetrical floor-monitor geometry
- 1,100-watt RMS Class-D amplifier
- Fan-assisted cooling and comprehensive protection
- CNC plywood construction with polyurea coating
