Description
Description

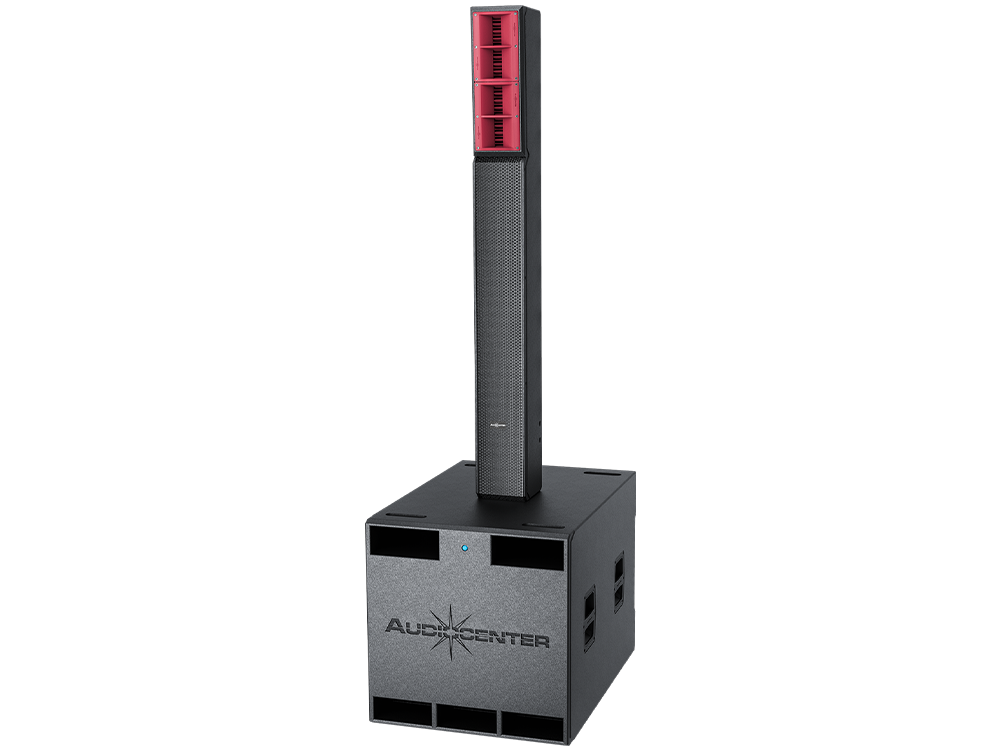

The AudioCenter L65 MK2 and L65S MK2 form a compact active DSP-controlled column system. The passive L65 MK2 column contains six 5-inch low-frequency drivers and four 1-inch high-frequency drivers, while the active L65S MK2 subwoofer uses one 18-inch driver, integrated Class-D amplification, DSP, Bluetooth, and the output connection required to power the column.
The system is designed as a plug-and-play solution for live performance, DJs, presentations, houses of worship, hospitality, events, and fixed installations. Its narrow 10-degree vertical pattern controls floor and ceiling interaction, while the broad 110-degree horizontal pattern covers a wide audience area. The full system is rated for 2,000 watts RMS and reaches a published 131 dB continuous and 137 dB peak at one meter.
The 96 kHz DSP provides L65 MK2, L83 MK2, and T8 presets. Combo analog inputs, stereo Bluetooth, XLR output, fan-assisted cooling, and extensive protection are integrated into the active subwoofer. Both enclosures use CNC-machined plywood and iron grilles.
System Specifications
| Product Type | Active DSP-controlled column speaker system |
|---|---|
| Frequency Response | 35 Hz–20 kHz (-10 dB) |
| Horizontal Coverage | 110° |
| Vertical Coverage | 10° |
| Maximum Calculated SPL | 131 dB continuous / 137 dB peak at 1 meter |
| Column Low-Frequency Drivers | 6 × customized 5-inch drivers |
| Column High-Frequency Drivers | 4 × customized 1-inch drivers |
| Subwoofer Driver | 1 × customized 18-inch driver |
| DSP | 96 kHz sampling |
| Presets | L65 MK2, L83 MK2, and T8 |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 2,000 watts |
| Peak Power | 4,000 watts |
| Amplifier Frequency Response | 20 Hz–20 kHz, ±0.5 dB |
| Intermodulation Distortion | Less than 0.05% |
| Total Harmonic Distortion | Less than 0.05% |
| Signal Inputs | XLR / 6.35 mm combo and stereo Bluetooth |
| Signal Output | Male XLR |
| Column Speaker Link | 4-pin Speakon |
| Power Input | IEC |
| Working Voltage | 100–130 or 220–240 volts AC, 50/60 Hz |
| Power Consumption | 281 watts at 1/8 output power |
Cabinet and Physical Specifications
| Cabinet Material | CNC-machined plywood |
|---|---|
| Grilles | Iron mesh |
| Column Pole Mount | 35 mm |
| Subwoofer Pole Mount | M20 with 35 mm pole |
| Column Dimensions | 156 × 1,400 × 180 mm |
| Column Net Weight | 21 kg |
| Subwoofer Dimensions | 590 × 600 × 815 mm |
| Subwoofer Net Weight | 54 kg |
Features
- Complete column and active-subwoofer system
- Wide 110° horizontal and controlled 10° vertical coverage
- 96 kHz DSP with three application presets
- 2,000-watt RMS Class-D amplification
- Stereo Bluetooth and professional analog connections
- Fan-assisted cooling
- DC, short-circuit, thermal, input-overload, output-overload, soft-start, overvoltage, and undervoltage protection
- CNC plywood enclosures with iron grilles
- Plug-and-play setup for portable and installed systems
