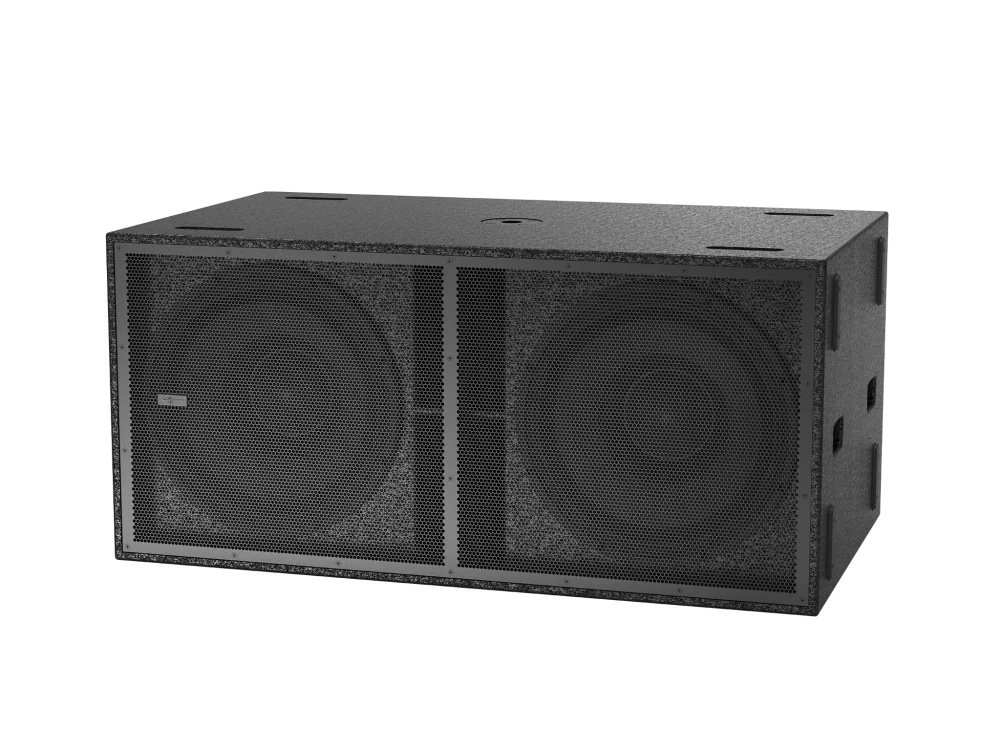

The AudioCenter S3218A is a dual-18-inch active wooden subwoofer engineered for professional systems that require greater low-frequency output and headroom than a single-driver enclosure can provide. Two customized 18-inch drivers with 4-inch voice coils are installed in a CNC-machined plywood cabinet for large mobile events, live sound, DJ systems, houses of worship, clubs, and fixed installations.
The integrated Class-D amplifier supplies 2,000 watts RMS and 4,000 watts peak. Its 48 kHz DSP includes selectable 80 Hz, 100 Hz, and 120 Hz low-pass presets, allowing the subwoofer to be integrated with different full-range loudspeakers and system layouts without relying on an external analog crossover.
The S3218A reaches a calculated maximum output of 134 dB continuous and 140 dB peak, with frequency response extending to 32 Hz. A female XLR input, male XLR output, locking PowerCon connection, and universal 100–240-volt AC operation support signal linking and dependable use in both touring and installed applications.
Acoustic Specifications
| Product Type | Dual-driver active wooden subwoofer |
|---|---|
| Frequency Response | 32 Hz–150 Hz |
| Maximum Calculated SPL | 134 dB continuous / 140 dB peak |
| Low-Frequency Drivers | 2 × 18-inch |
| Voice Coil | 4-inch per driver |
| DSP Sampling Rate | 48 kHz |
| Low-Pass Presets | 80 Hz, 100 Hz, and 120 Hz |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 2,000 watts |
| Peak Power | 4,000 watts |
| Signal Input | Female XLR |
| Signal Output | Male XLR |
| Power Connection | PowerCon |
| Operating Voltage | 100–240 V AC |
Cabinet Specifications
| Cabinet Material | CNC-machined plywood |
|---|---|
| Dimensions | 1060 × 700 × 618 mm |
| Net Weight | 83 kg |
Features
- Dual customized 18-inch low-frequency drivers
- 4-inch voice coil on each driver
- 2,000-watt RMS Class-D amplifier
- 48 kHz digital signal processing
- Selectable 80 Hz, 100 Hz, and 120 Hz low-pass presets
- 32 Hz low-frequency extension
- Up to 140 dB calculated peak output
- XLR input and linked XLR output
- Locking PowerCon power connection
- Universal 100–240-volt AC operation
- CNC-machined plywood enclosure
- Designed for high-output portable and installed professional systems
