Description
Description

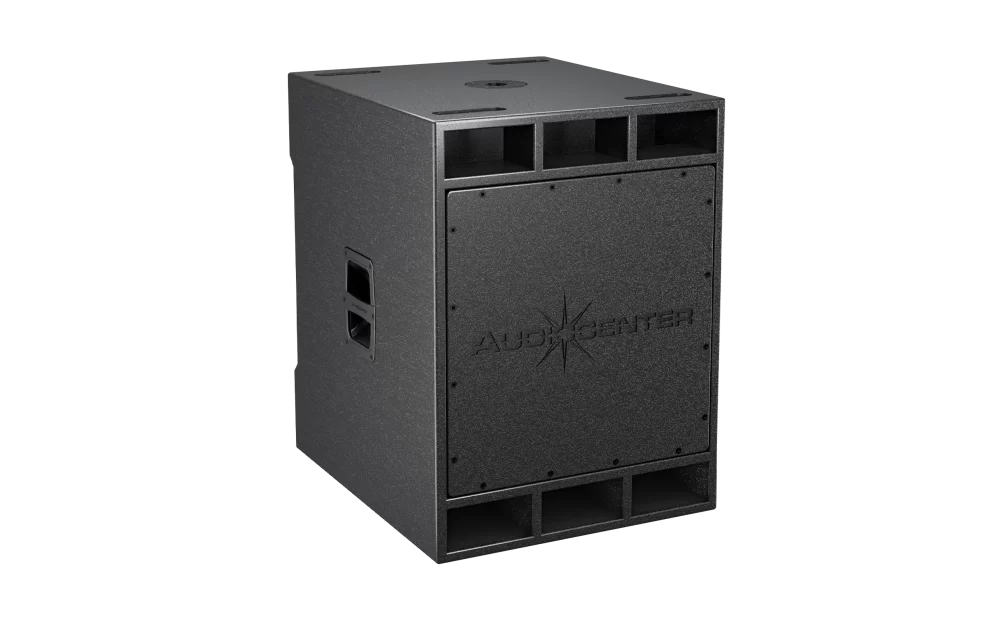

The AudioCenter SA3118 is an active DSP-controlled compact subwoofer designed to complement SA3 full-range loudspeakers and similar professional PA cabinets. It uses one customized 18-inch low-frequency driver with a 4-inch voice coil in a CNC-machined plywood enclosure.
The 48 kHz DSP provides selectable 80 Hz, 100 Hz, and 120 Hz low-pass presets for different speaker pairings, venue sizes, and music styles. A phase switch is provided on the rear panel, and the XLR input and output allow signal linking to additional powered loudspeakers.
The integrated Class-D amplifier produces 1,000 watts RMS and 2,000 watts peak. Fan-assisted cooling, comprehensive protection, two side handles, an iron grille, and an M20 base for a 35 mm speaker pole support portable and fixed professional use.
Acoustic Specifications
| Product Type | Active DSP-controlled compact subwoofer |
|---|---|
| Frequency Response | 35 Hz–150 Hz (-10 dB) |
| Maximum Calculated SPL | 128 dB continuous / 134 dB peak at 1 meter |
| Low-Frequency Driver | Customized 18-inch driver with 4-inch voice coil |
| DSP | 48 kHz sampling |
| Low-Pass Presets | 80 Hz, 100 Hz, and 120 Hz |
| Phase Control | Rear-panel phase switch |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 1,000 watts |
| Peak Power | 2,000 watts |
| Amplifier Frequency Response | 20 Hz–20 kHz, ±0.5 dB |
| Intermodulation Distortion | Less than 0.05% |
| Total Harmonic Distortion | Less than 0.05% |
| Signal Input | Female XLR |
| Signal Output | Male XLR |
| Power Input | IEC |
| Working Voltage | 100–130 or 220–240 volts AC, 50/60 Hz |
| Power Consumption | 120 watts at 1/8 output power |
Cabinet and Physical Specifications
| Cabinet Material | CNC-machined plywood |
|---|---|
| Grille | Iron mesh |
| Handles | 2 side |
| Pole Mount | M20 base for 35 mm pole |
| Dimensions | 520 × 700 × 618 mm |
| Net Weight | 43 kg |
Features
- Single 18-inch active DSP-controlled subwoofer
- Designed to complement SA3 and similar full-range loudspeakers
- 48 kHz processing
- Three selectable low-pass presets
- Rear-panel phase switch
- XLR input and linked XLR output
- 1,000-watt RMS Class-D amplifier
- Fan-assisted cooling
- Comprehensive electrical and thermal protection
- CNC plywood construction with integrated pole mount
