Description
Description

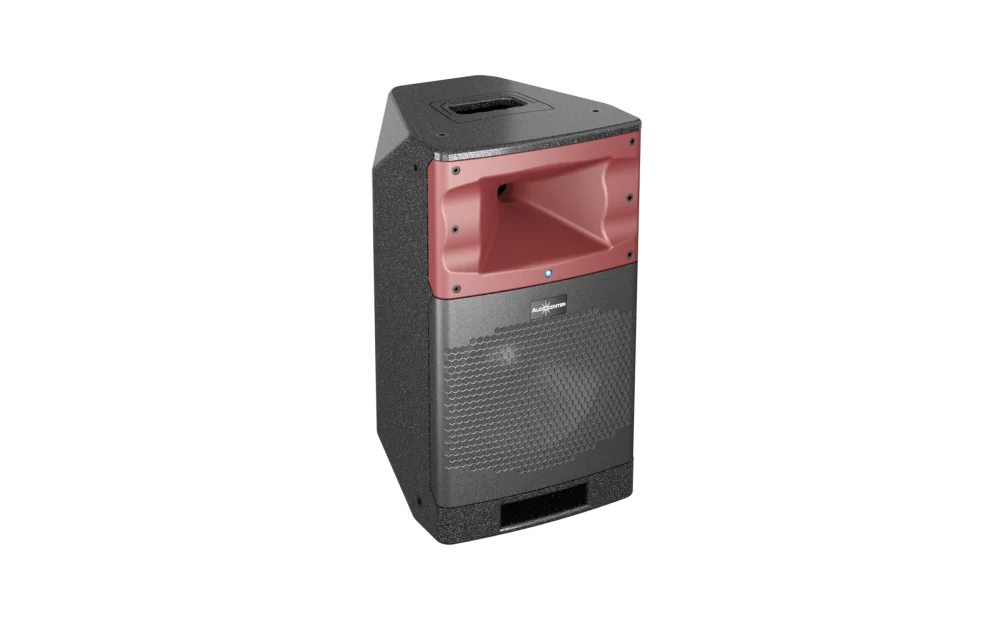

The AudioCenter SA310 Plus is a compact two-way active wooden loudspeaker designed for portable PA systems, live performance, DJ use, presentations, houses of worship, monitoring, and fixed installations. It combines a 10-inch low-frequency driver with a 2.5-inch voice coil and a high-frequency compression driver with a 1-inch exit and 1.75-inch voice coil.
The integrated Class-D amplifier delivers 1,000 watts RMS and 2,000 watts peak. A 48 kHz DSP platform and front-panel LCD visual-control interface provide direct access to the loudspeaker's operating functions. The cabinet produces 126 dB continuous and 132 dB peak calculated output, with 90-degree horizontal by 60-degree vertical coverage for broad, consistent audience coverage.
Input options include an XLR/6.35 mm combination connection, an additional 6.35 mm input, RCA input, and Bluetooth audio. A male XLR output allows the signal to be linked to another powered loudspeaker or subwoofer. The CNC-machined plywood enclosure provides a durable professional cabinet while maintaining a compact 16.5 kg format.
Acoustic Specifications
| Product Type | Two-way active wooden loudspeaker |
|---|---|
| Frequency Response | 50 Hz–20 kHz |
| Coverage Pattern | 90° horizontal × 60° vertical |
| Maximum Calculated SPL | 126 dB continuous / 132 dB peak |
| Low-Frequency Driver | 10-inch with 2.5-inch voice coil |
| High-Frequency Driver | 1-inch exit with 1.75-inch voice coil |
| DSP Sampling Rate | 48 kHz |
| Control Interface | LCD visual-control display |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 1,000 watts |
| Peak Power | 2,000 watts |
| Inputs | XLR/6.35 mm combination, 6.35 mm, RCA, and Bluetooth |
| Signal Output | Male XLR |
| Power Connection | IEC |
| Operating Voltage | 100–240 V AC |
Cabinet Specifications
| Cabinet Material | CNC-machined plywood |
|---|---|
| Dimensions | 330 × 535 × 328 mm |
| Net Weight | 16.5 kg |
Features
- Compact two-way active professional loudspeaker
- 10-inch low-frequency driver with 2.5-inch voice coil
- 1-inch-exit high-frequency compression driver
- 1,000-watt RMS Class-D amplification
- 48 kHz digital signal processing
- LCD visual-control interface
- 90-degree horizontal by 60-degree vertical coverage
- Bluetooth audio streaming
- Combination XLR/6.35 mm, auxiliary 6.35 mm, and RCA inputs
- Linked male XLR output
- Universal 100–240-volt AC operation
- CNC-machined plywood enclosure
- Suitable for mains, monitor, portable, and installed sound applications
