Description
Description

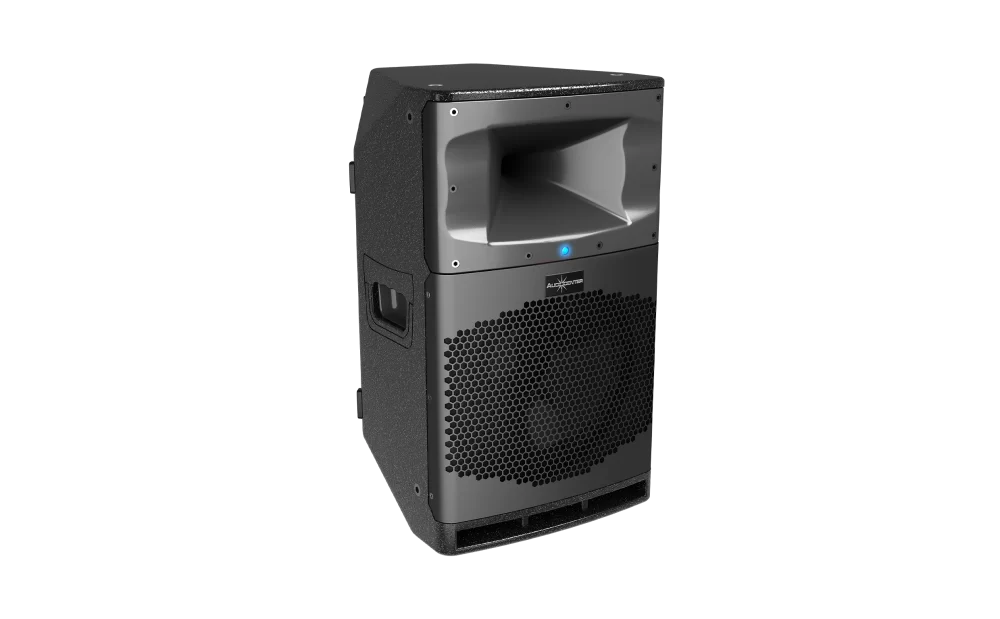

The AudioCenter SA312 Plus is a 12-inch active DSP-controlled loudspeaker built with AudioCenter’s BrainCore™ technology. The SA3+ platform combines a customized low-frequency driver, a 1-inch-exit high-frequency driver, Class-D amplification, wireless Bluetooth, and an LCD-based DSP interface in a portable CNC-machined plywood cabinet.
A rear-panel encoder and LCD screen provide direct access to the DSP menu. MUSIC, FLAT, SPEECH, and W/SUB presets allow the speaker to be configured for full-range playback, voice reinforcement, or operation with an active subwoofer. XLR/6.35 mm combo input, 3.5 mm input, Bluetooth, and balanced XLR output provide flexible source and system-linking options.
The SA312 Plus delivers 1,000 watts RMS and 2,000 watts peak, with a published maximum calculated output of 126 dB continuous and 132 dB peak. Symmetrical 45-degree monitor geometry, M8 suspension points, and a 35 mm pole socket support front-of-house, monitor, suspended, or stand-mounted use.
Acoustic Specifications
| Product Type | Active DSP-controlled loudspeaker |
|---|---|
| Frequency Response | 46 Hz–20 kHz (-10 dB) |
| Coverage | 80° horizontal × 50° vertical |
| Maximum Calculated SPL | 126 dB continuous / 132 dB peak at 1 meter |
| Low-Frequency Driver | Customized 12-inch driver with 2.5-inch voice coil |
| High-Frequency Driver | Customized driver with 1.75-inch voice coil and 1-inch exit |
| DSP | 48 kHz sampling with LCD control |
| Presets | MUSIC, FLAT, SPEECH, and W/SUB |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 1,000 watts |
| Peak Power | 2,000 watts |
| Amplifier Frequency Response | 20 Hz–20 kHz, ±0.5 dB |
| Intermodulation Distortion | Less than 0.05% |
| Total Harmonic Distortion | Less than 0.05% |
| Signal Inputs | XLR / 6.35 mm combo, 3.5 mm input, and wireless Bluetooth |
| Signal Output | Balanced male XLR |
| Power Input | IEC |
| Working Voltage | 100–240 volts AC, 50/60 Hz |
| Power Consumption | 55 watts at 1/8 output power |
Cabinet and Installation
| Cabinet Material | CNC-machined plywood |
|---|---|
| Finish | Durable polyurea coating |
| Grille | Iron mesh |
| Handles | 2 side |
| Monitor Angle | Symmetrical 45° |
| Suspension Hardware | M8 threaded points |
| Pole Mount | 35 mm socket |
| Optional Accessories | Coupling bar, flight case, rain bag, and tripod stand |
| Dimensions | 363 × 626 × 375 mm |
| Net Weight | 18 kg |
Features
- BrainCore™ active DSP loudspeaker platform
- Rear-panel LCD and encoder control
- Four selectable application presets
- Wireless Bluetooth input
- 1,000-watt RMS Class-D amplifier
- Natural air-convection cooling
- DC, short-circuit, thermal, output-overload, soft-start, overvoltage, and undervoltage protection
- Multipurpose front-of-house and monitor cabinet
- CNC plywood construction with polyurea coating
