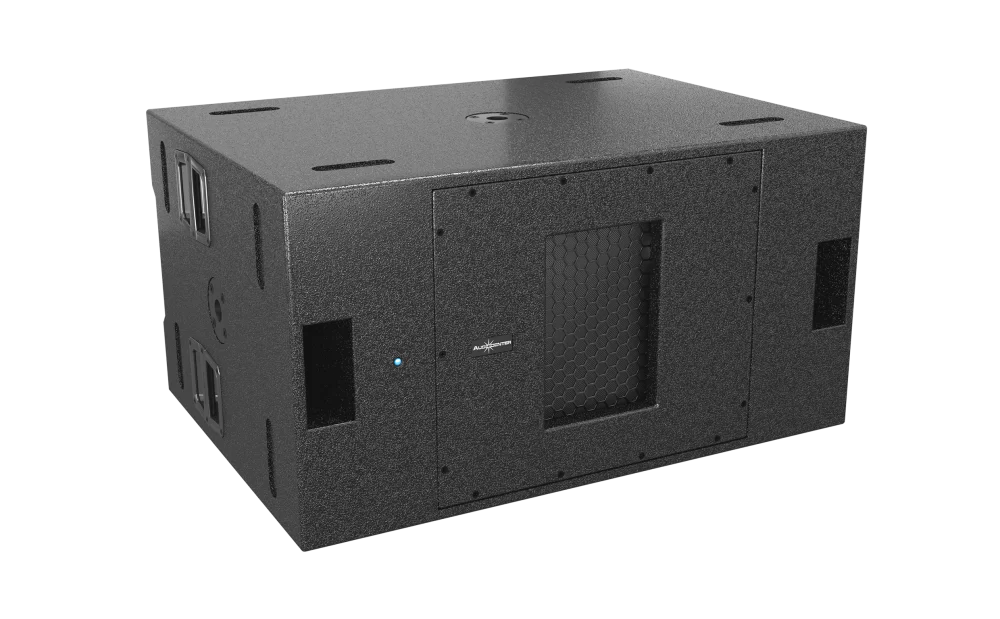

The AudioCenter SA3218 is a dual-18-inch active DSP-controlled subwoofer intended for professional PA systems that require high low-frequency output from a self-powered cabinet. Its two 18-inch drivers use 4-inch voice coils, and the integrated Class-D amplifier supplies 2,000 watts RMS and 4,000 watts peak.
The 48 kHz DSP provides selectable 80 Hz, 100 Hz, and 120 Hz low-pass presets for matching the subwoofer to different full-range loudspeakers and system layouts. XLR input and output connectors support signal linking to additional active cabinets.
The CNC-machined plywood enclosure uses an iron grille and is sized for touring, rental, event, and fixed-installation systems. The published dimensions, weight, amplifier power, and preset data below are specific to the SA3218 product record.
Acoustic Specifications
| Product Type | Active DSP-controlled dual subwoofer |
|---|---|
| Frequency Response | 32 Hz–150 Hz (-10 dB) |
| Maximum Calculated SPL | 134 dB continuous / 140 dB peak at 1 meter |
| Low-Frequency Drivers | 2 × 18-inch drivers with 4-inch voice coils |
| DSP | 48 kHz sampling |
| Low-Pass Presets | 80 Hz, 100 Hz, and 120 Hz |
Amplifier and Connections
| Amplifier Circuitry | Class D |
|---|---|
| RMS Power | 2,000 watts |
| Peak Power | 4,000 watts |
| Signal Input | Female XLR |
| Signal Output | Male XLR |
| Power Input | IEC |
| Working Voltage | 100–130 or 220–240 volts AC |
Cabinet and Physical Specifications
| Cabinet Material | CNC-machined plywood |
|---|---|
| Grille | Iron mesh |
| Dimensions | 1,060 × 700 × 618 mm |
| Net Weight | 83 kg |
Features
- Dual-18-inch active subwoofer platform
- 2,000-watt RMS Class-D amplification
- 48 kHz DSP processing
- Three selectable low-pass presets
- XLR input and linked XLR output
- CNC-machined plywood enclosure
- Designed for large portable and installed PA systems
