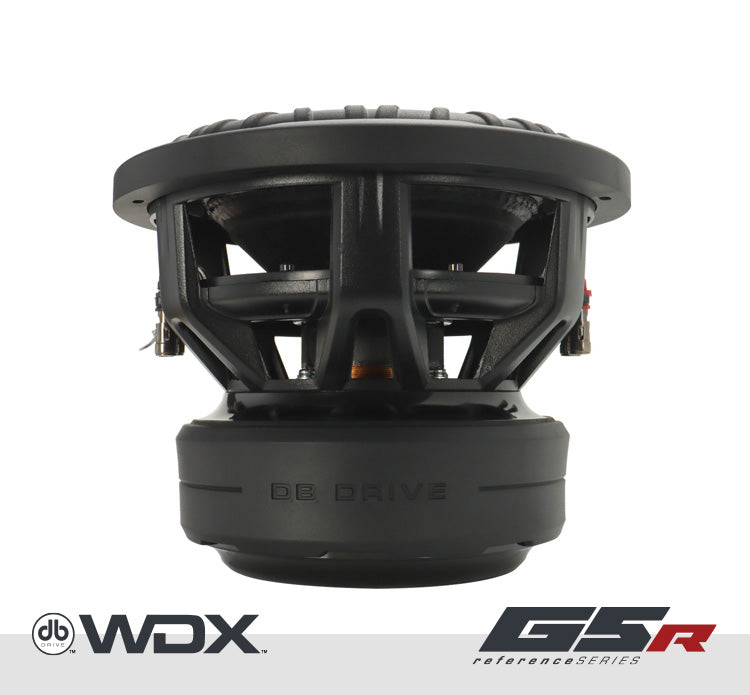

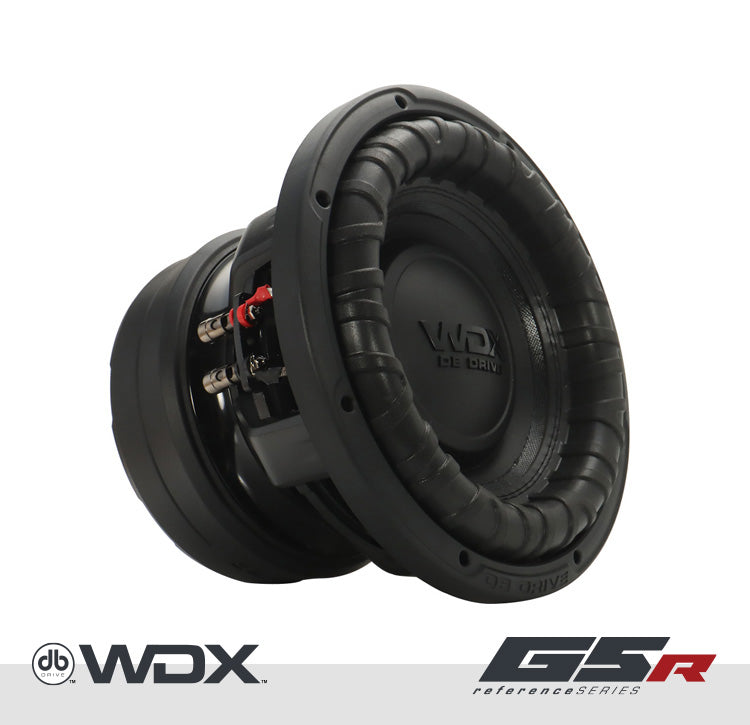

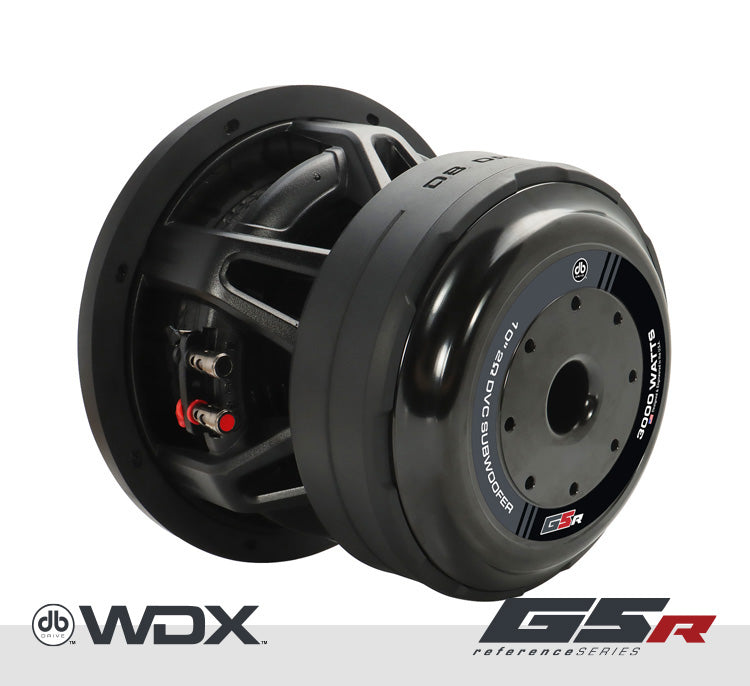

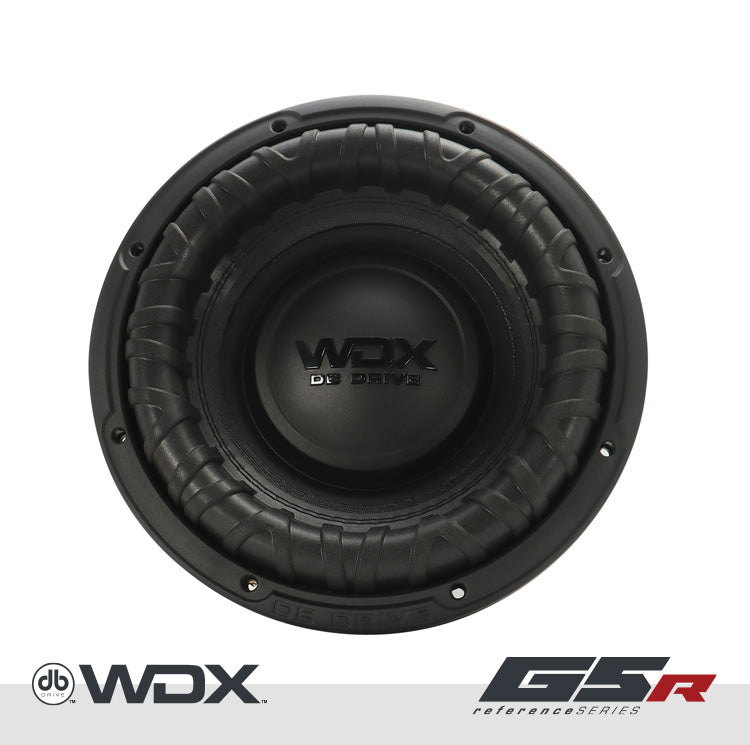

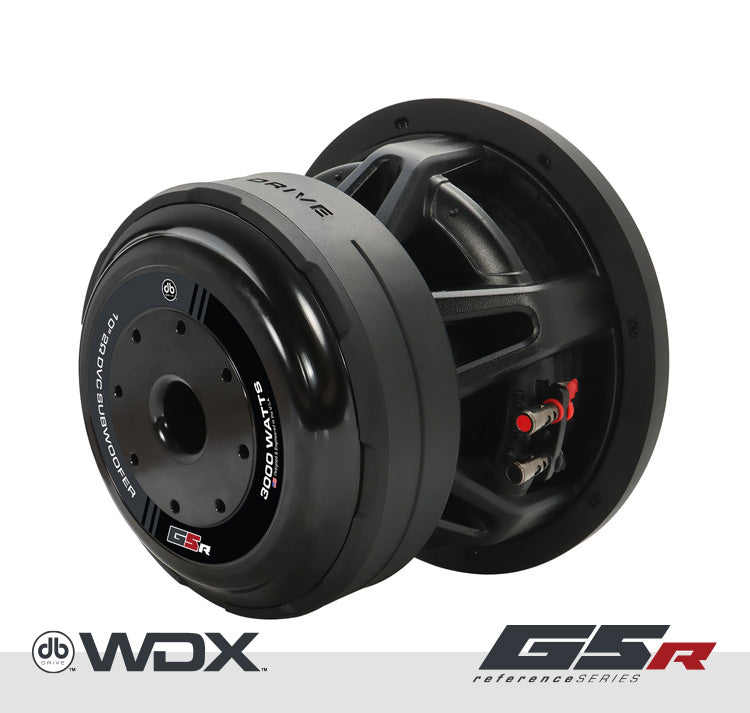

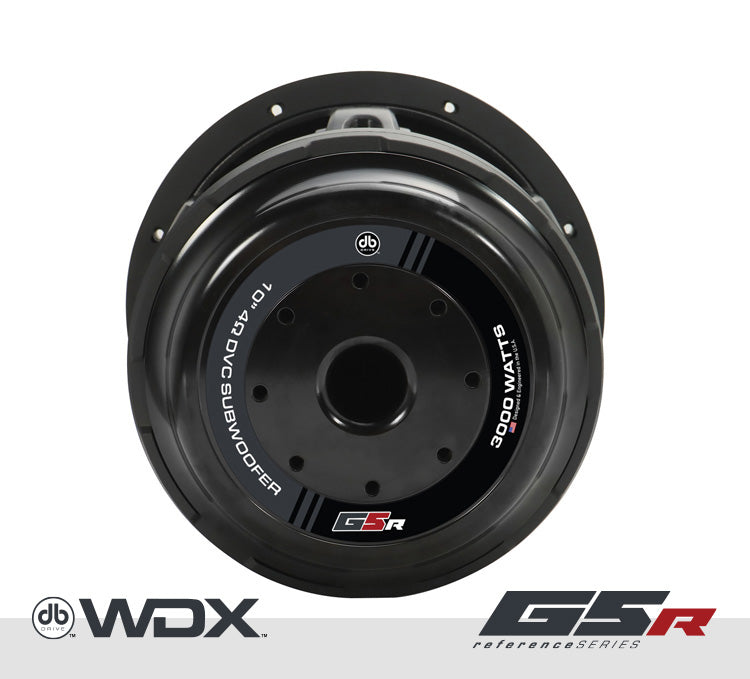

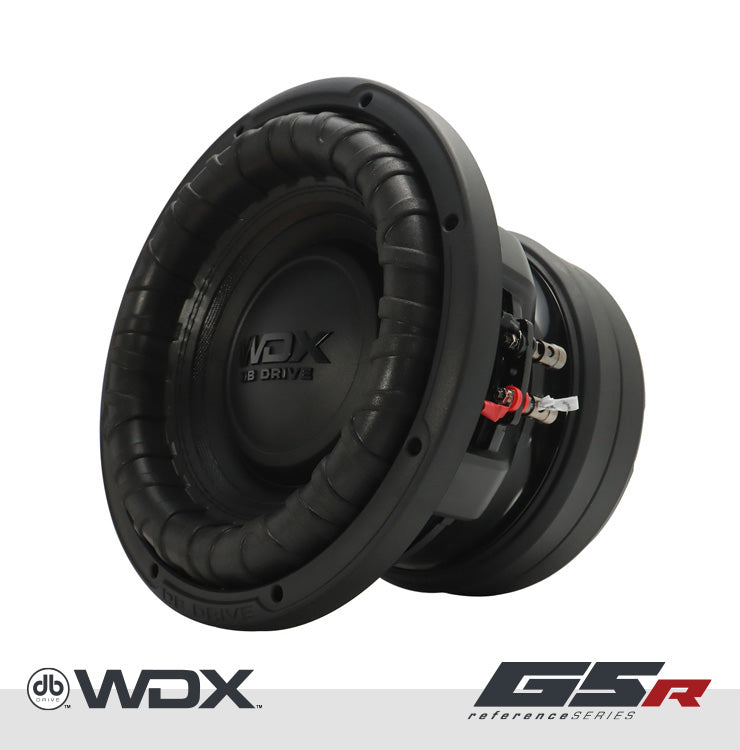

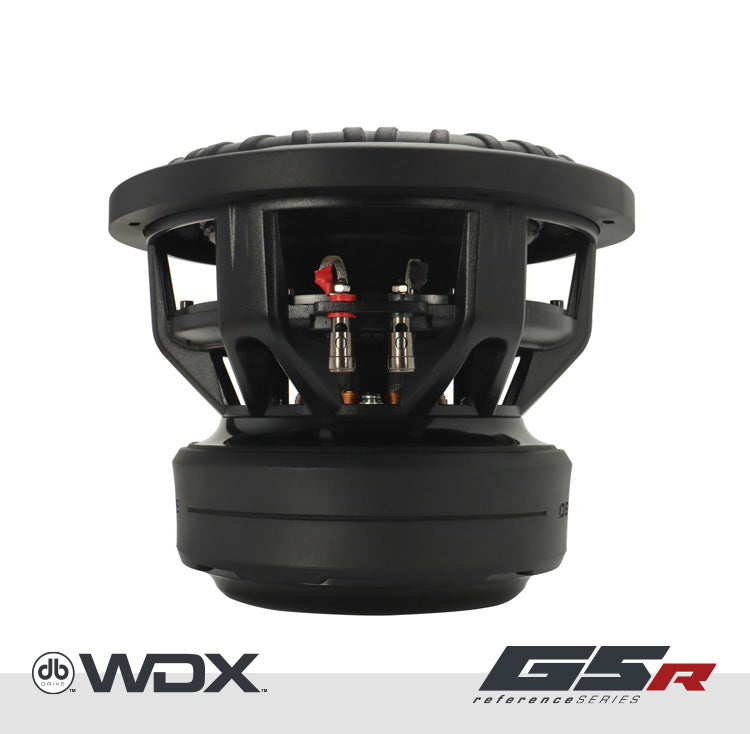

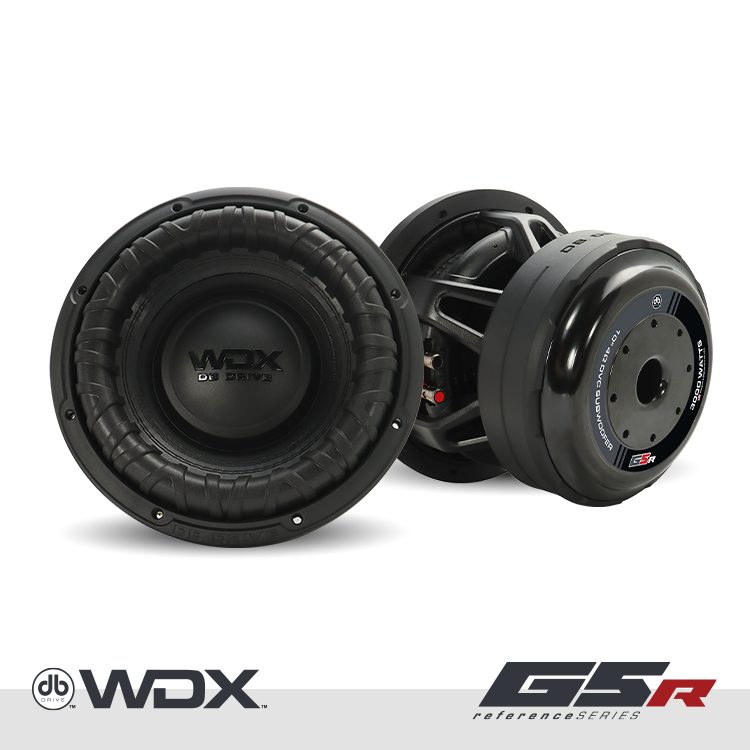

The DB Drive WDX10G5R.4 is a 10-inch Generation 5 WDX subwoofer with dual 4-ohm voice coils. It is designed for high-output bass systems and combines a non-pressed paper cone, double-stitched reinforced foam surround, dual poly-cotton dampers and a die-cast vented aluminum basket for strength, excursion control and heat dissipation.
The subwoofer is rated for 1,500 watts nominal power and 3,000 watts dynamic power. Its 3-inch four-layer anodized-aluminum high-temperature voice coil and high-excursion Y35 ferrite motor are intended for deep, controlled bass in a properly modeled enclosure.
Specifications
| Model | WDX10G5R.4 |
|---|---|
| Nominal diameter | 10 inches |
| Nominal power handling | 1,500 watts |
| Dynamic power handling | 3,000 watts |
| Voice-coil configuration | Dual 4 ohms |
| D.C. resistance | 2 x 3.2 ohms |
| Voice-coil diameter | 3 inches |
| Resonant frequency, Fs | 31.398 Hz |
| Qms | 3.102 |
| Qes | 0.498 |
| Qts | 0.429 |
| Vas | 13.084 liters |
| Cms | 72.569 mm/N |
| Mms | 354.060 g |
| BL factor | 29.960 |
| Sensitivity | 81 dB |
Features
- 3-inch four-layer anodized-aluminum high-temperature voice coil.
- High-excursion motor uses Y35 ferrite magnets.
- Non-pressed paper cone provides a rigid low-frequency radiating surface.
- Double-stitched reinforced foam surround supports high excursion.
- Die-cast vented aluminum basket improves rigidity and heat dissipation.
- Custom mounting gasket helps create a reliable enclosure seal.
- Requires a modeled enclosure, correct amplifier impedance and subsonic protection.
