Description
Description

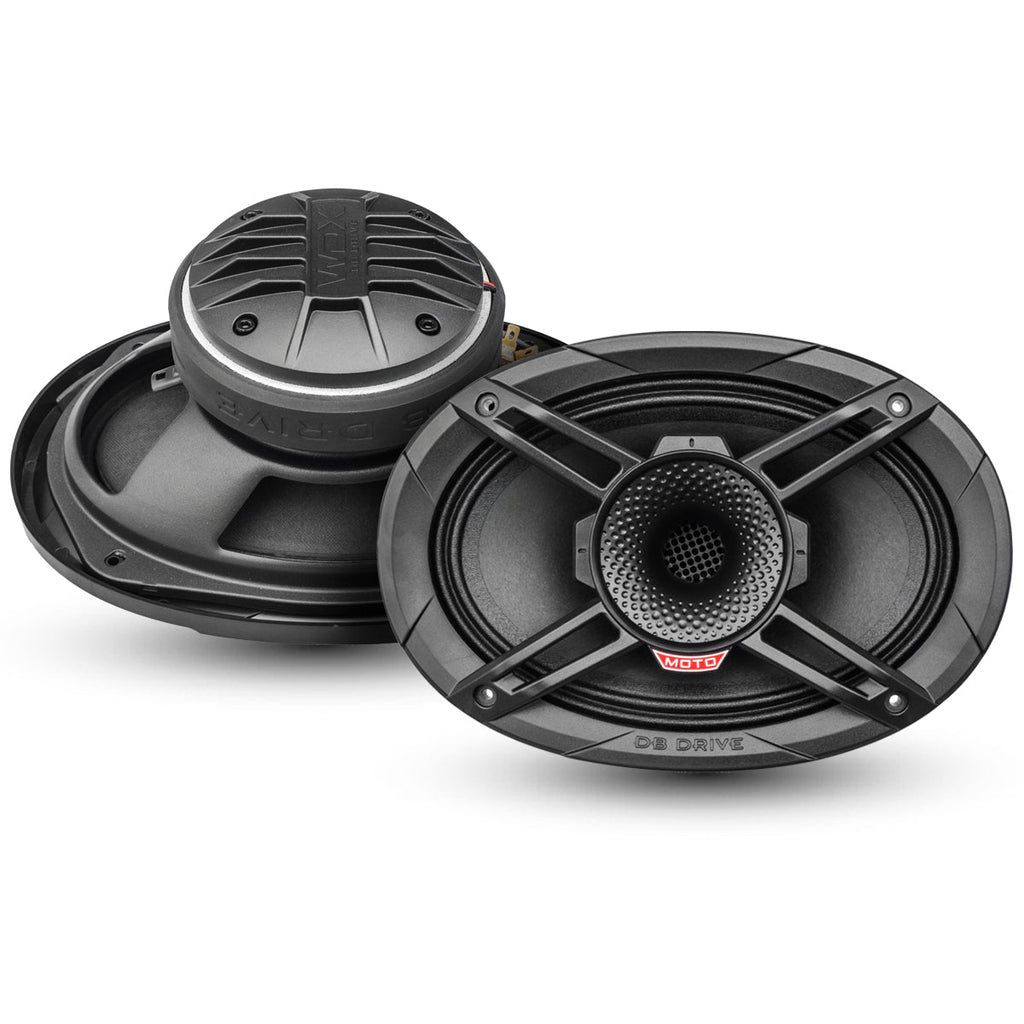

The DB Drive WDX69MOTO-CD is a pair of 6-by-9-inch high-efficiency two-way motorcycle loudspeakers with back-mounted compression drivers. Each speaker combines an element-rated cone, treated cloth surround and 1-inch aluminum compression-style tweeter to deliver strong midrange projection and clear highs in motorcycles, powersports vehicles and open-air systems.
The pair is rated for 325 watts nominal power and 650 watts dynamic power, with 101.3 dB sensitivity and a published response from 75 Hz to 18 kHz. IP52 weather resistance and included protective grilles support exposed installations when the speakers are mounted and sealed correctly.
Specifications
| Model | WDX69MOTO-CD |
|---|---|
| Sold as | Pair |
| Nominal size | 6 x 9 inches |
| Speaker design | High-efficiency two-way loudspeaker with back-mounted compression driver |
| Nominal power handling | 325 watts |
| Dynamic power handling | 650 watts |
| Nominal impedance | 4 ohms |
| Sensitivity | 101.3 dB |
| Frequency response | 75 Hz–18 kHz |
| Midrange voice coil | 1.5 inches |
| High-frequency driver | 1-inch aluminum compression-style tweeter |
| Weather resistance | IP52 |
| Grilles included | Yes |
Features
- Back-mounted compression driver provides projected high-frequency output.
- Element-rated cone design supports motorcycle and powersports use.
- Bi-ribbed treated-cloth surround provides controlled cone movement.
- Stamped-steel basket provides a rigid mounting structure.
- High 101.3 dB sensitivity supports strong acoustic output.
- Protective grilles are included.
- Requires rigid mounting and appropriate high-pass protection.
