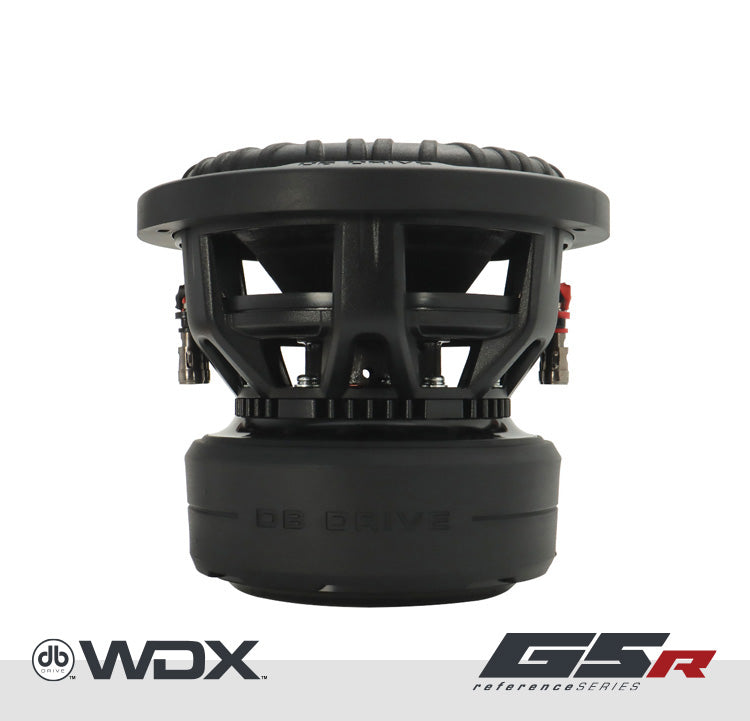

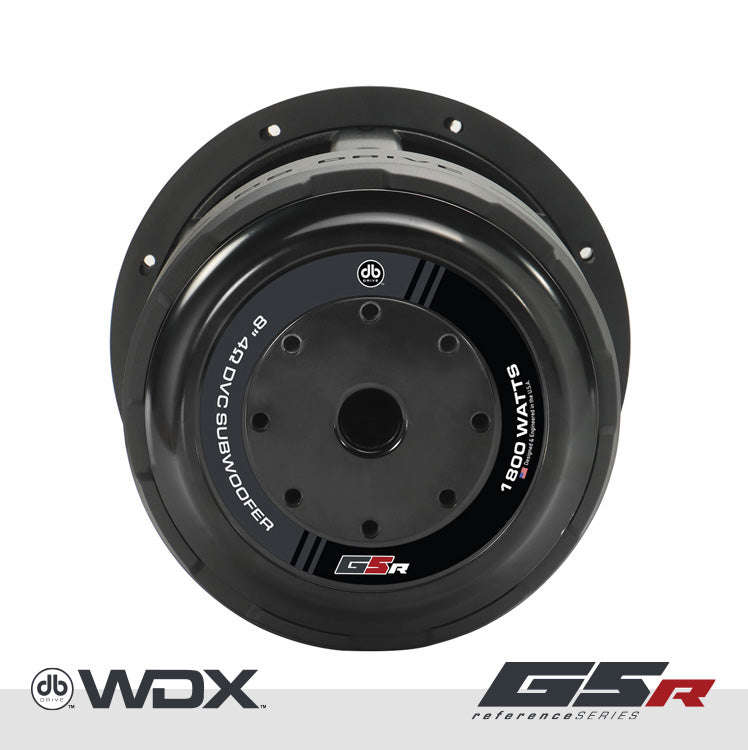

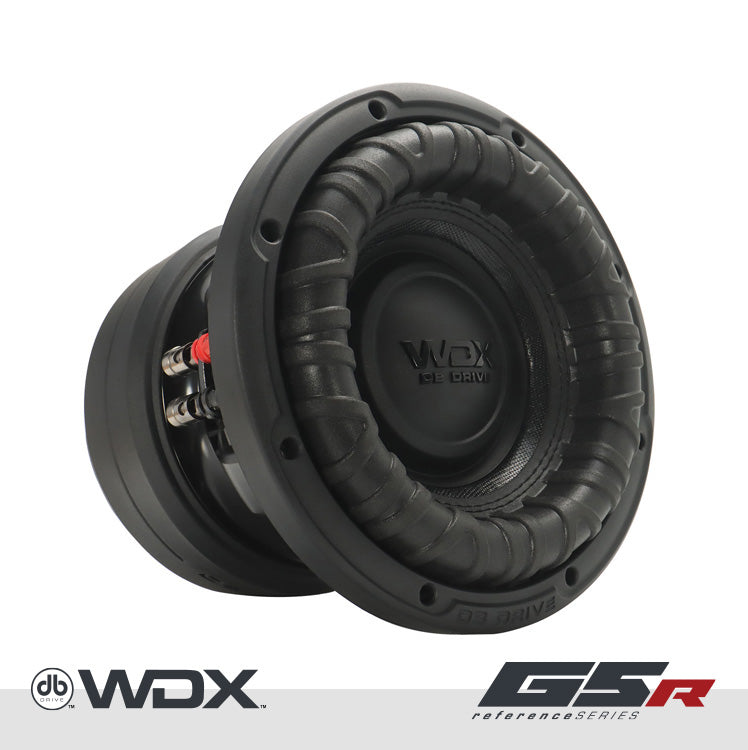

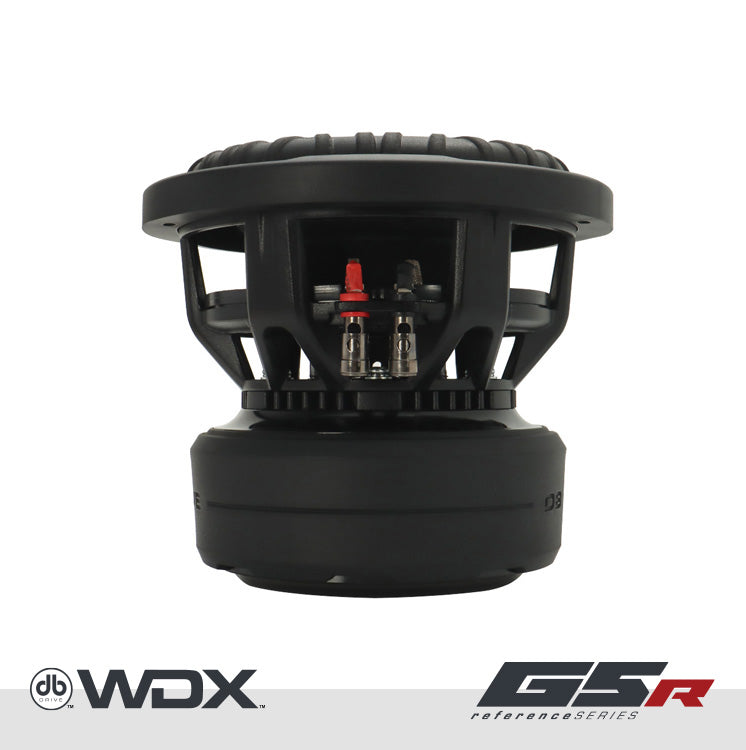

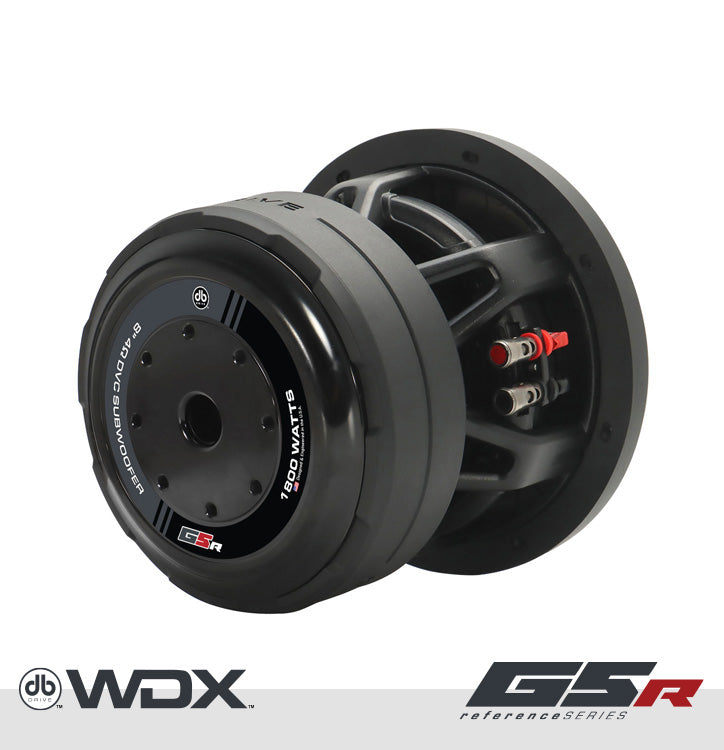

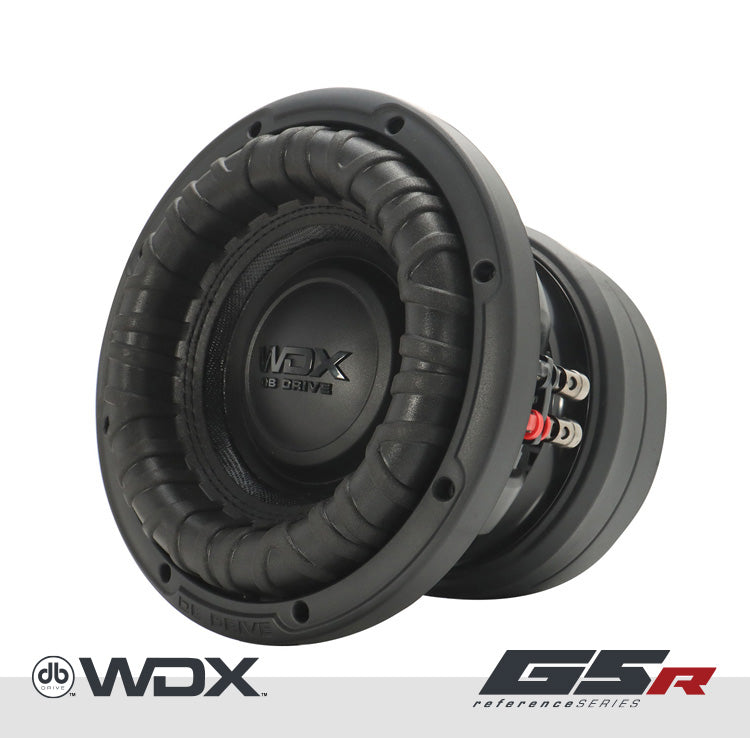

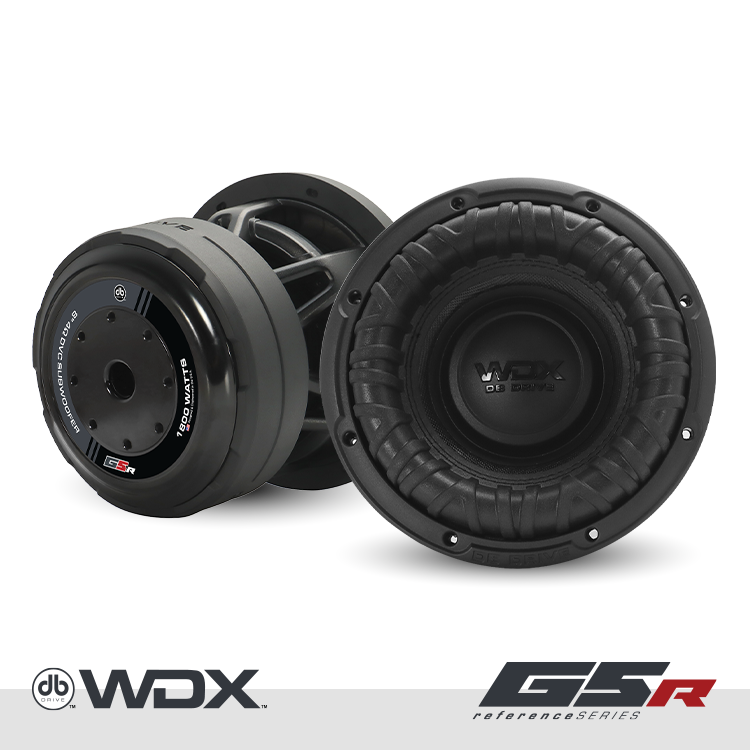

The DB Drive WDX8G5R.4 is an 8-inch Generation 5 WDX subwoofer with dual 4-ohm voice coils. This closeout model is designed for compact high-output bass systems and uses a non-pressed paper cone, double-stitched reinforced foam surround and die-cast vented aluminum basket for strength, cooling and controlled excursion.
The subwoofer is rated for 900 watts nominal power and 1,800 watts dynamic power. Its 2.5-inch four-layer anodized-aluminum high-temperature voice coil, dual poly-cotton dampers and large-gauge compression terminals are engineered for sustained high-output operation in a properly modeled enclosure.
Specifications
| Model | WDX8G5R.4 |
|---|---|
| Condition | Closeout |
| Nominal diameter | 8 inches |
| Nominal power handling | 900 watts |
| Dynamic power handling | 1,800 watts |
| Voice-coil configuration | Dual 4 ohms |
| D.C. resistance | 2 x 3.2 ohms |
| Voice-coil diameter | 2.5 inches |
| Resonant frequency, Fs | 44.912 Hz |
| Qms | 2.869 |
| Qes | 0.906 |
| Qts | 0.698 |
| Vas | 4.191 liters |
| Cms | 73.013 mm/N |
| Mms | 171.997 g |
| BL factor | 18.512 |
| Sensitivity | 78.1 dB |
Features
- Four-layer anodized-aluminum high-temperature voice coil.

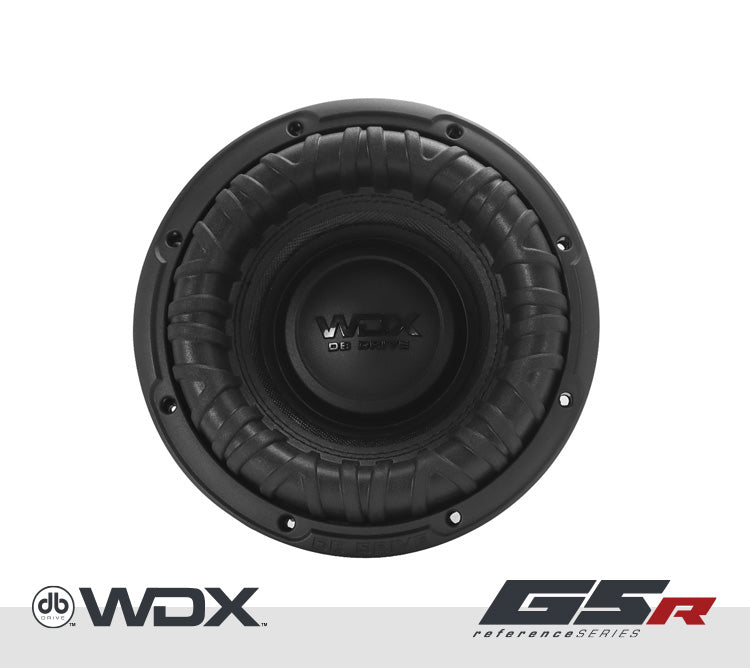

- Non-pressed paper cone provides a rigid low-frequency radiating surface.
- Double-stitched reinforced foam surround supports high excursion.
- Dual poly-cotton dampers help control cone movement.

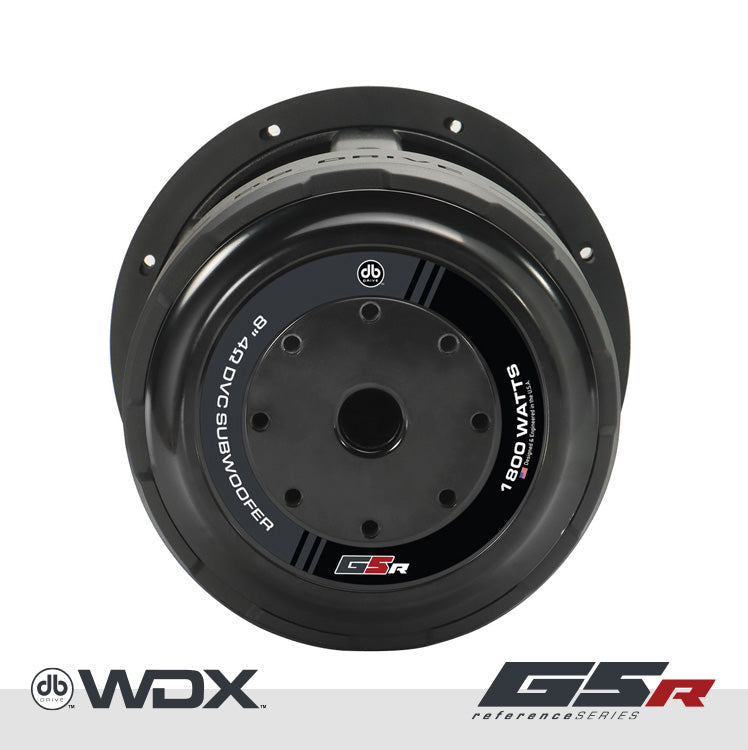

- Die-cast vented aluminum basket supports cooling and rigidity.
- Large-gauge compression terminals simplify secure wiring.
- Requires a modeled enclosure, correct amplifier impedance and subsonic protection.
