Description

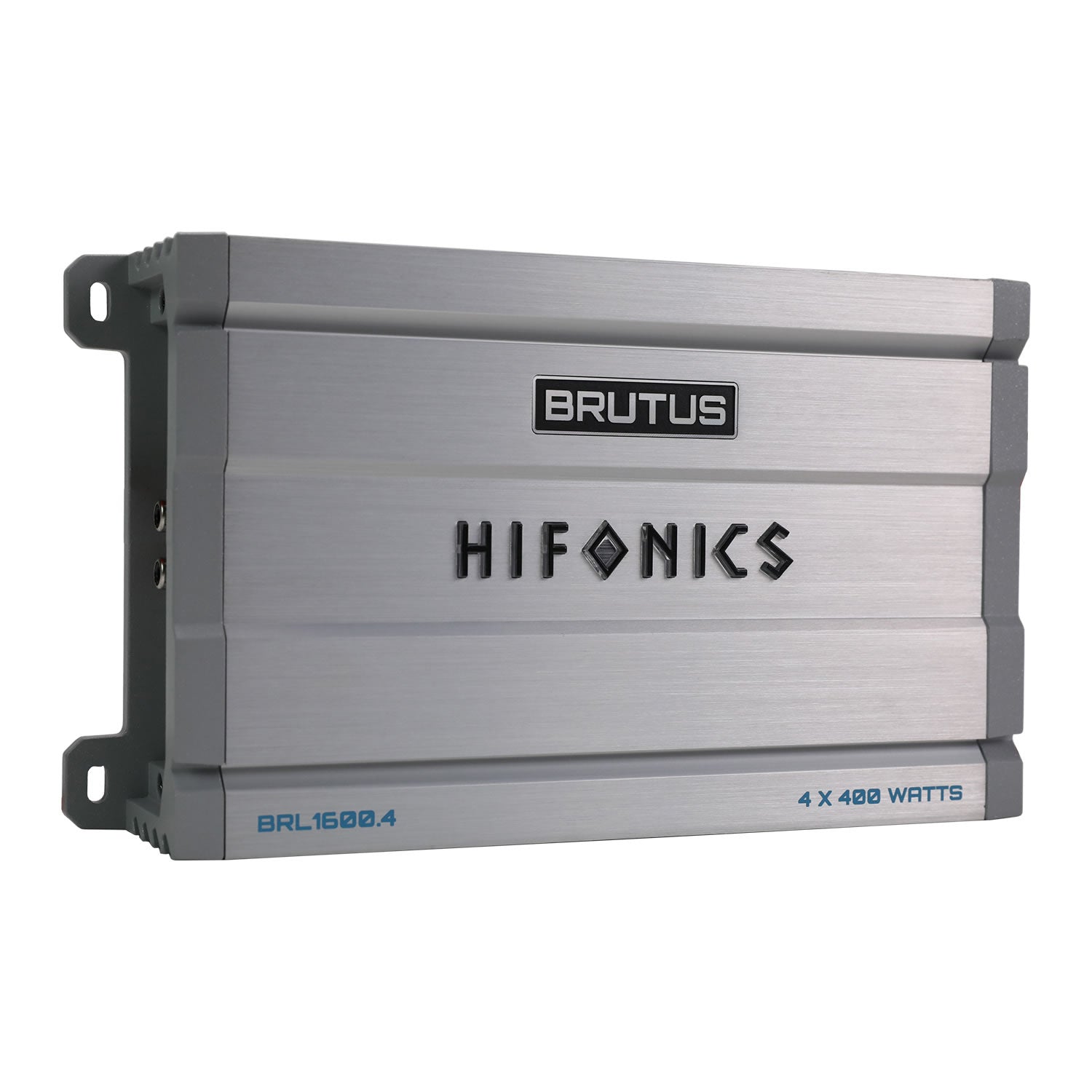

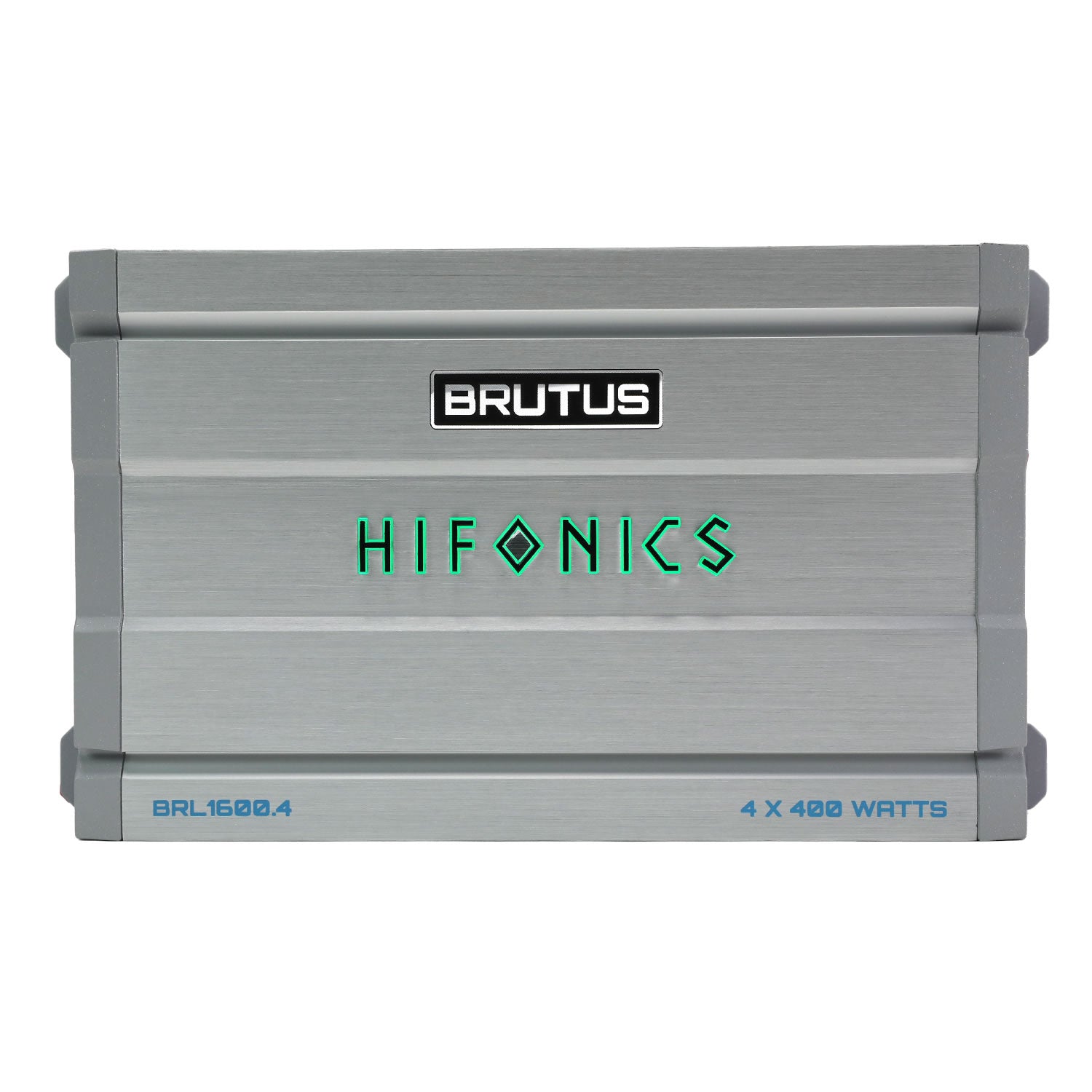

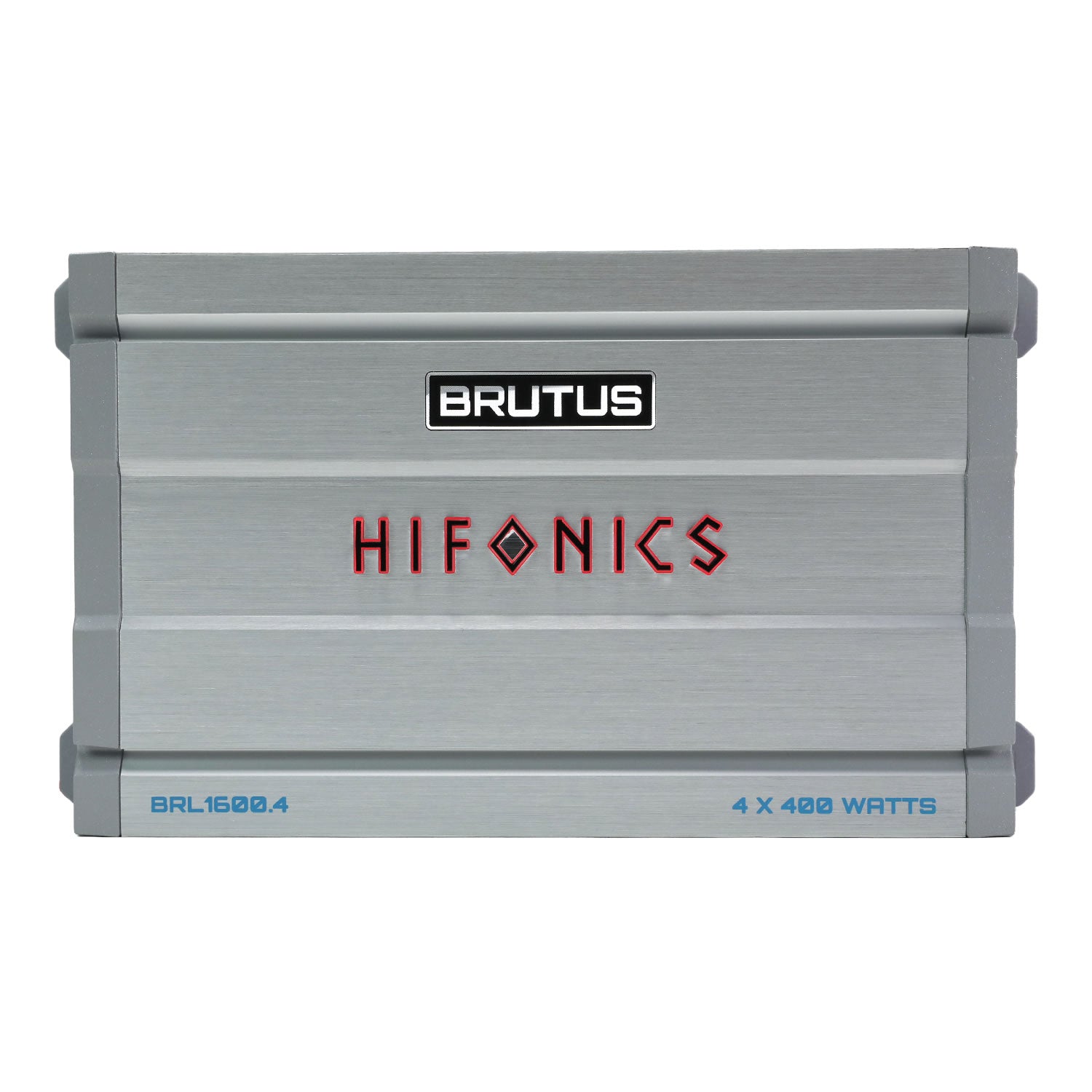

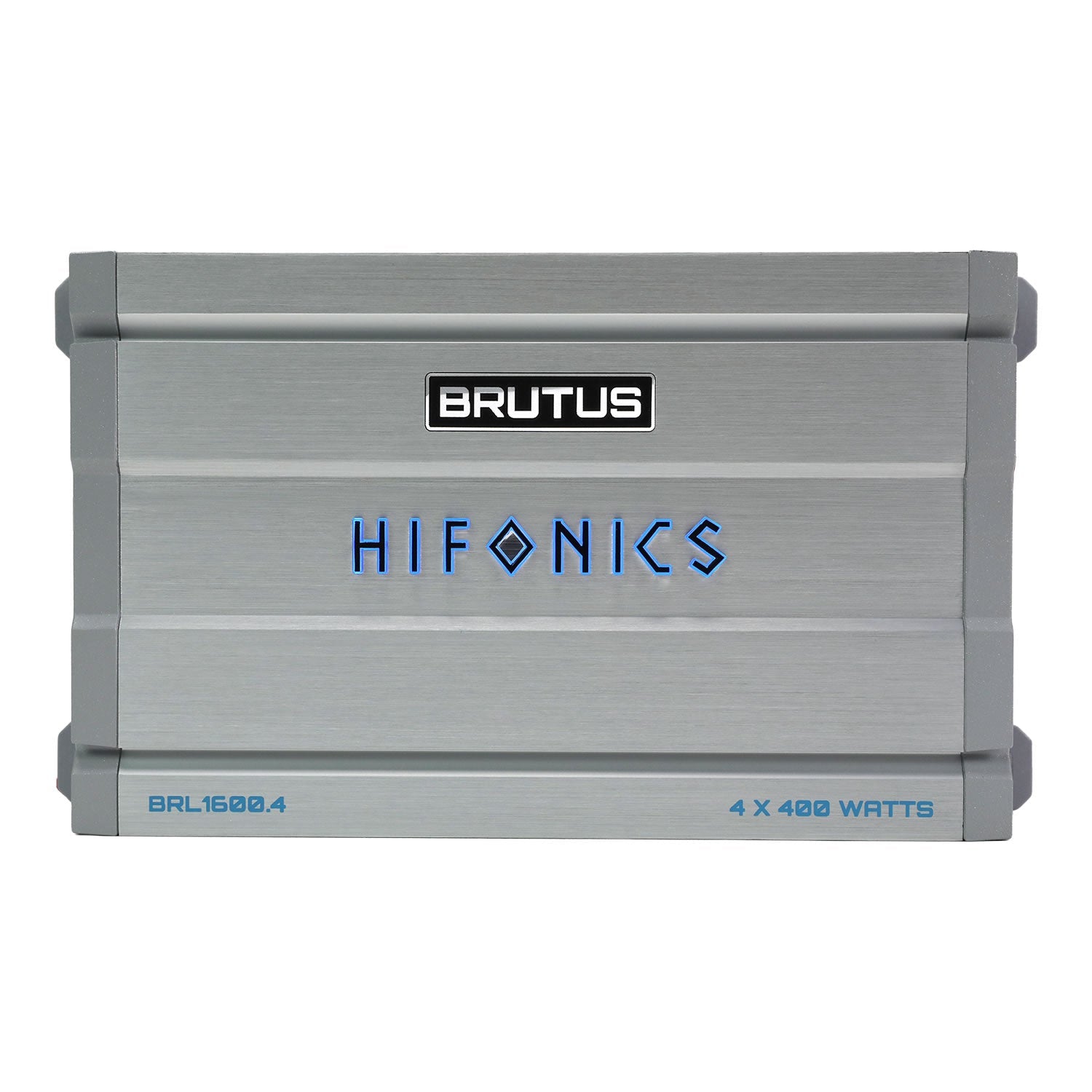

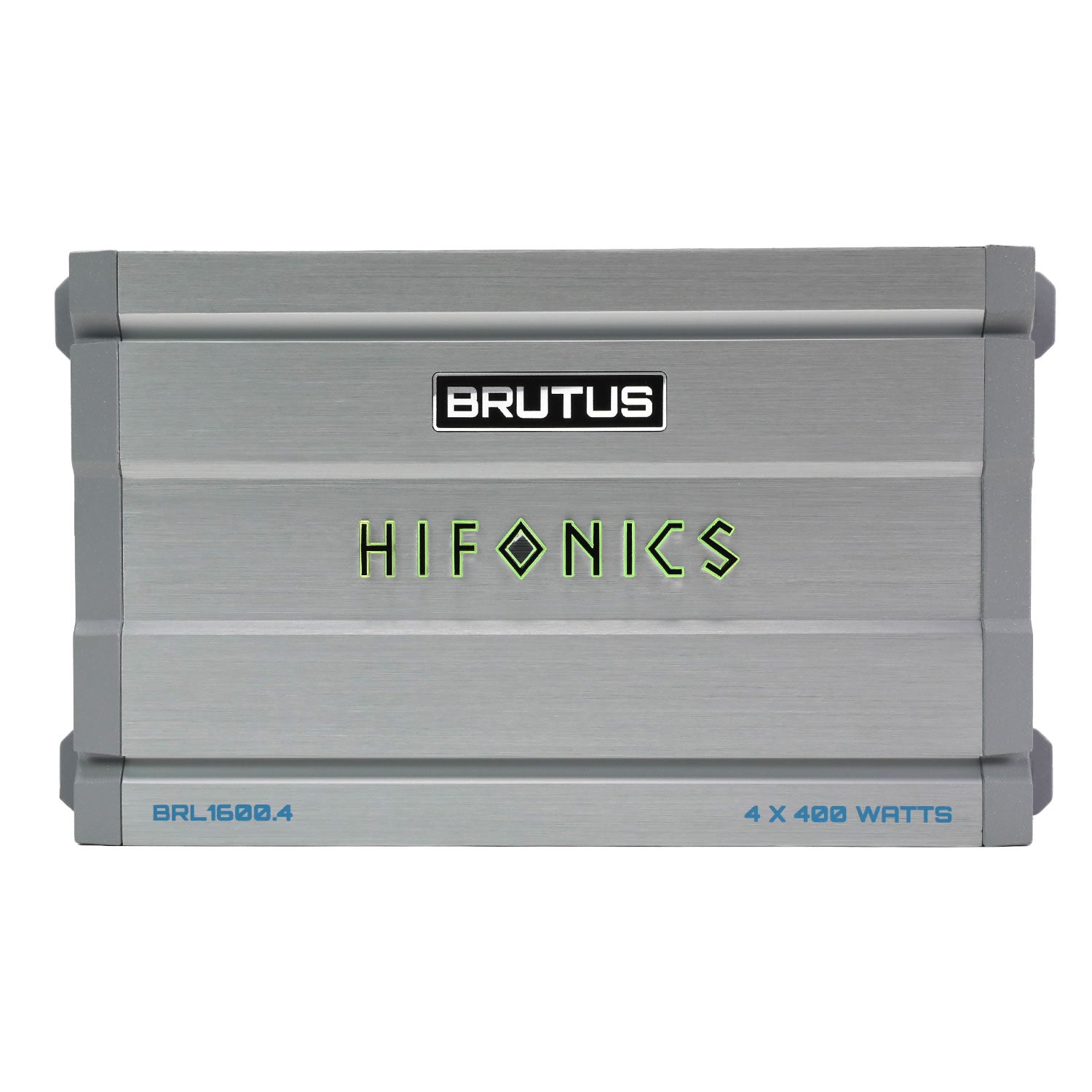

The Hifonics Brutus BRL1600.4 is a closeout four-channel Class-D amplifier for full-range speaker systems and compatible bridged applications. Hifonics publishes 300 watts RMS × 4 at 4 ohms, 450 watts RMS × 4 at 2 ohms, or 880 watts RMS × 2 bridged at 4 ohms.

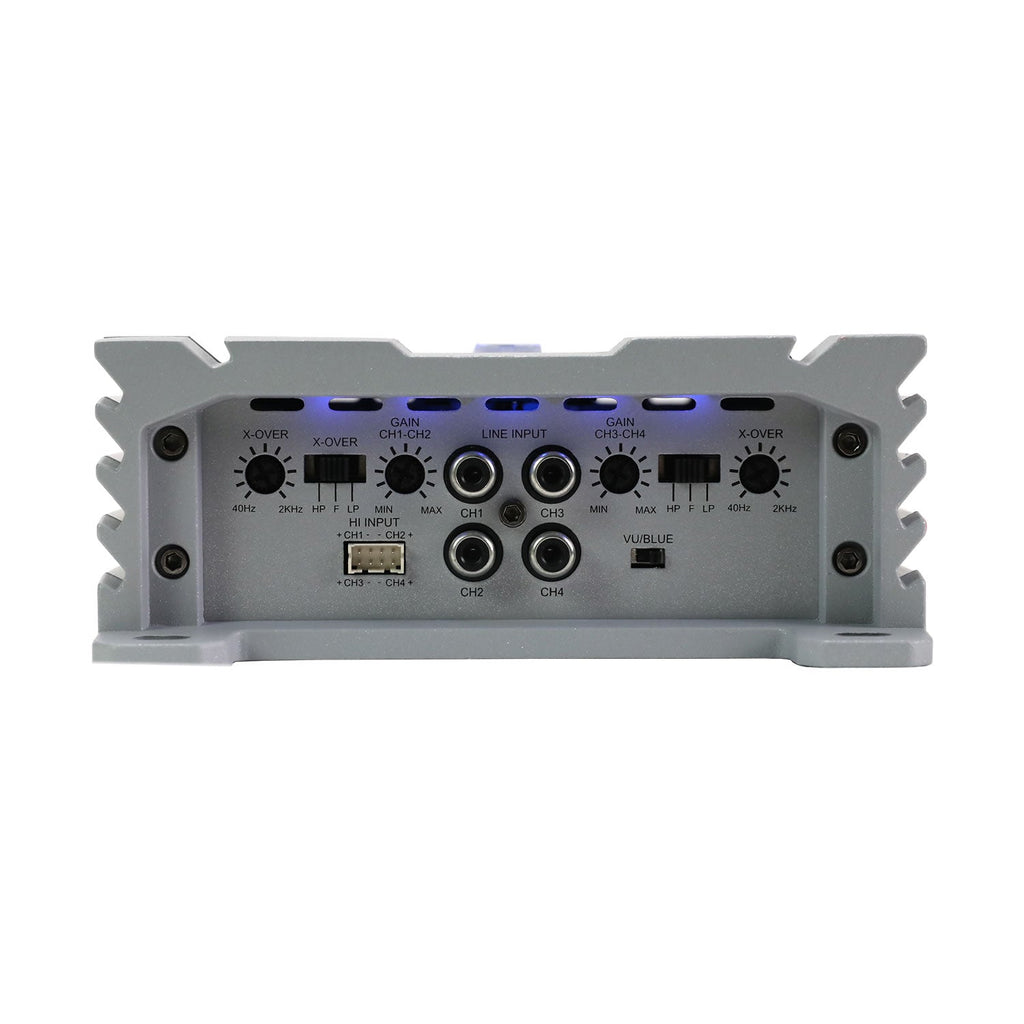

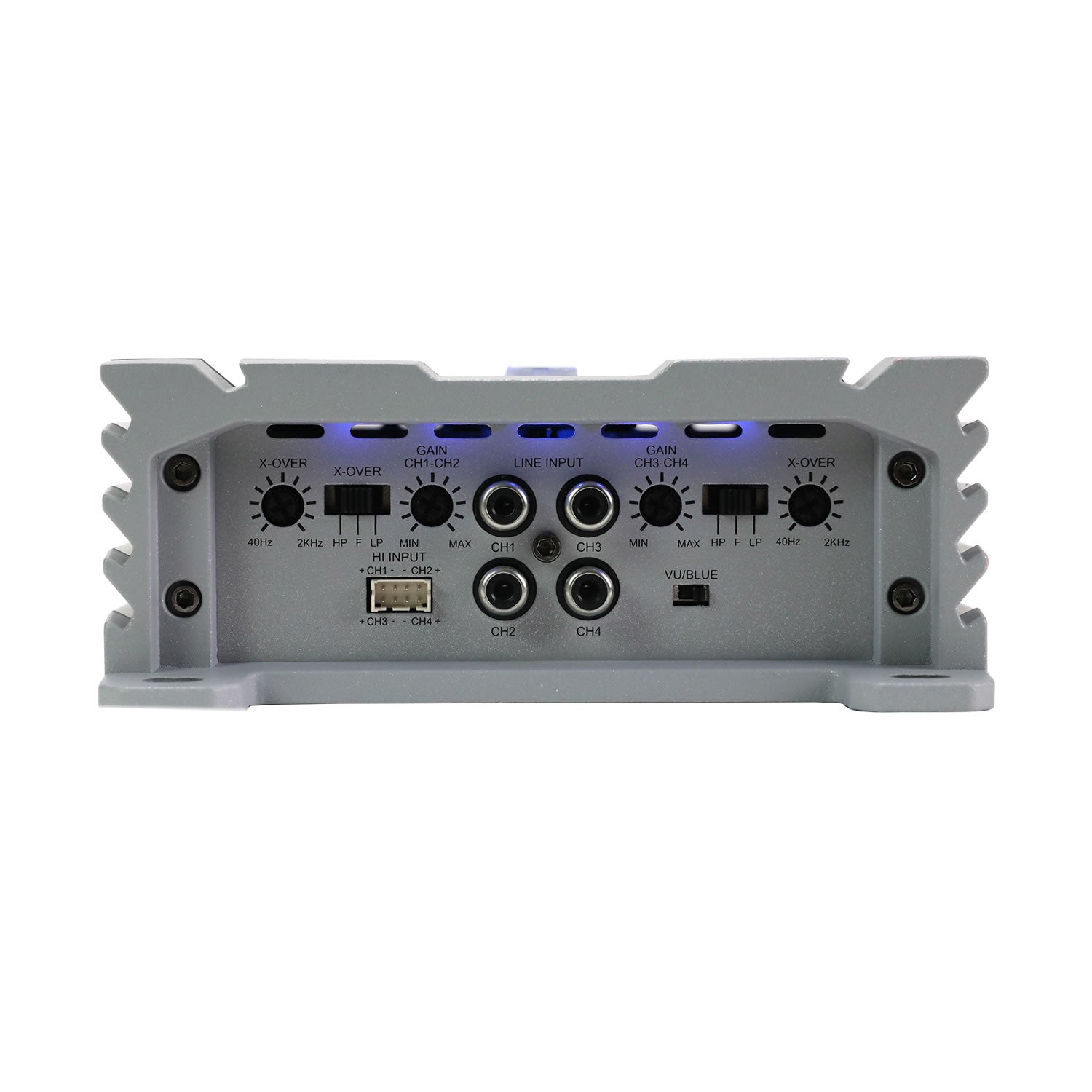

The amplifier includes variable 12 dB/octave high-pass and low-pass filters from 40 Hz to 2 kHz, a 0.2–9-volt input range, a built-in VU meter, and Intelligent Power Management. Its multi-layer board, half-bridge design, and mass-loaded heat sink are intended to support efficient high-output operation.
Specifications
| Model | BRL1600.4 |
|---|---|
| Series | Brutus BRL |
| Condition | Closeout / final sale |
| Amplifier type | Four-channel full-range amplifier |
| Amplifier class | Super D Class™ / Class-D topology |
| Published output at 4 ohms | 300 watts RMS × 4 |
| Published output at 2 ohms | 450 watts RMS × 4 |
| Published bridged output at 4 ohms | 880 watts RMS × 2 |
| High-pass filter | 40 Hz–2 kHz, 12 dB/octave |
| Low-pass filter | 40 Hz–2 kHz, 12 dB/octave |
| Input range | 0.2–9 volts |
| Frequency response | 15 Hz–30 kHz |
| Signal-to-noise ratio | 88 dB |
| THD | Less than 0.2% |

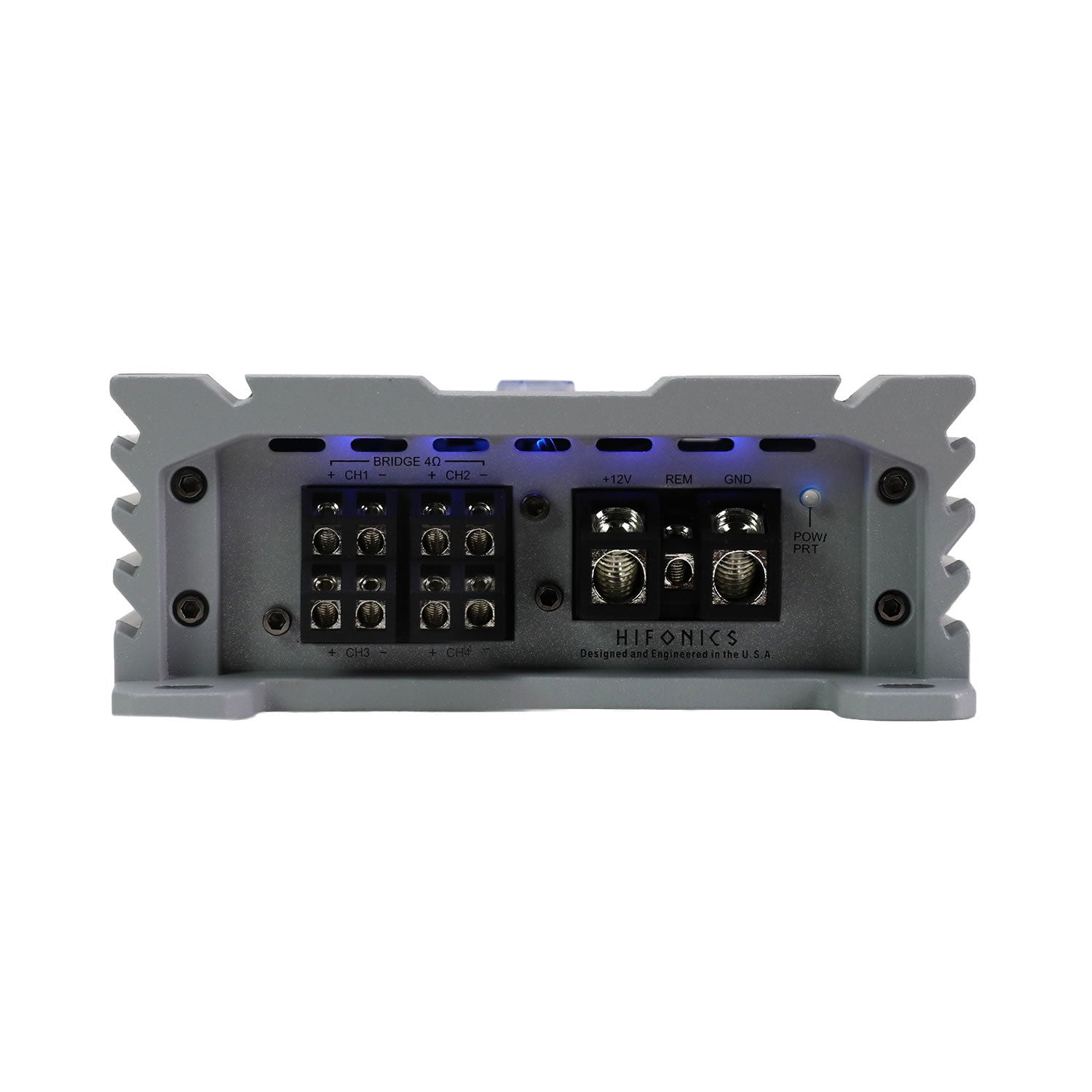

| Power/ground terminal | 2 AWG |
| Speaker terminal | 12 AWG |
| External fuse requirement | 100 amps |
| Chassis dimensions | 10.5 × 5.75 × 2.25 inches |
Confirm speaker impedance, any bridged load, cable size, fuse location, mounting airflow, and electrical-system capacity before installation.
