Description

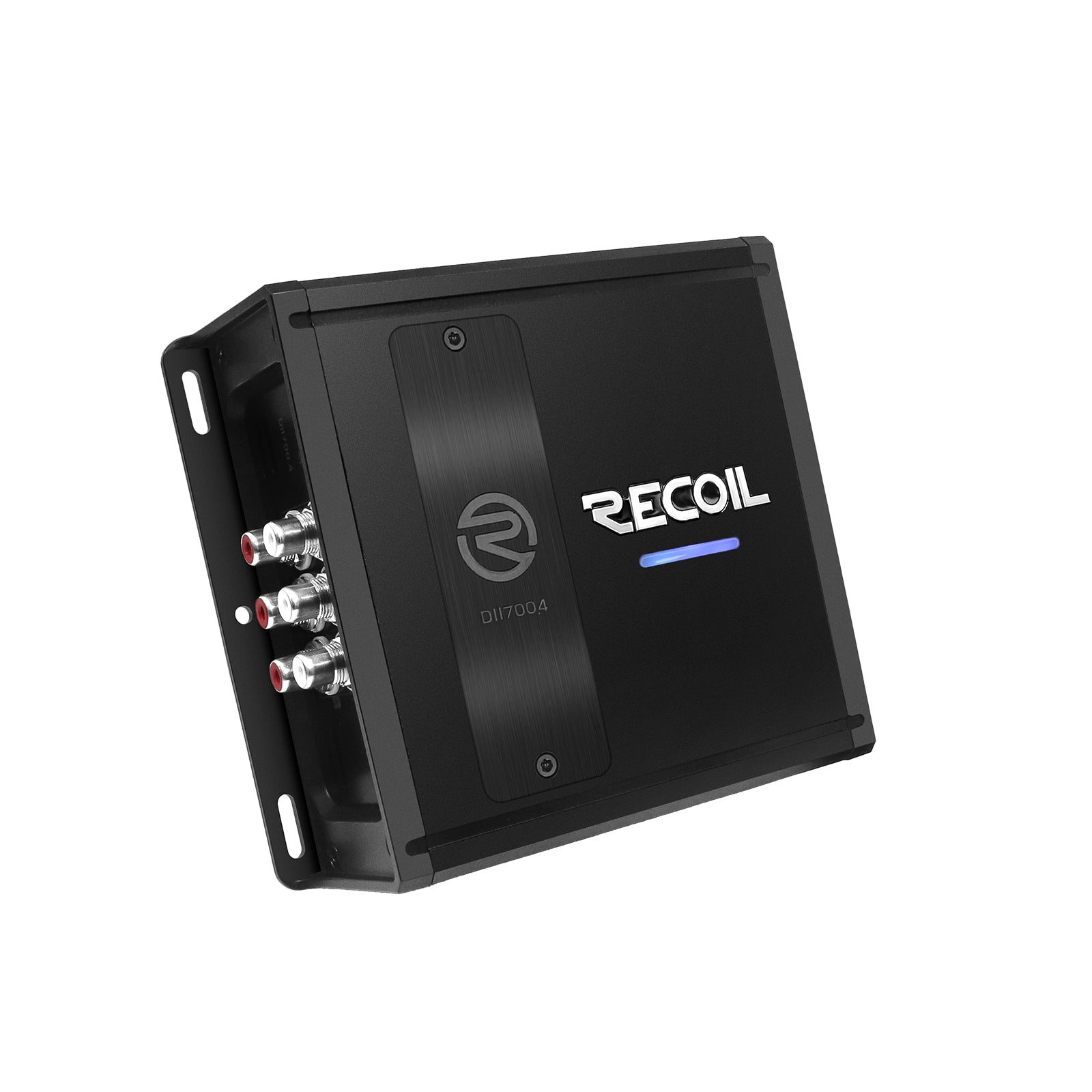

The Recoil DII700.4 is an ultra-compact four-channel Class-D full-range amplifier for front and rear speakers, compact active systems, motorcycles, powersports vehicles, and other limited-space installations.

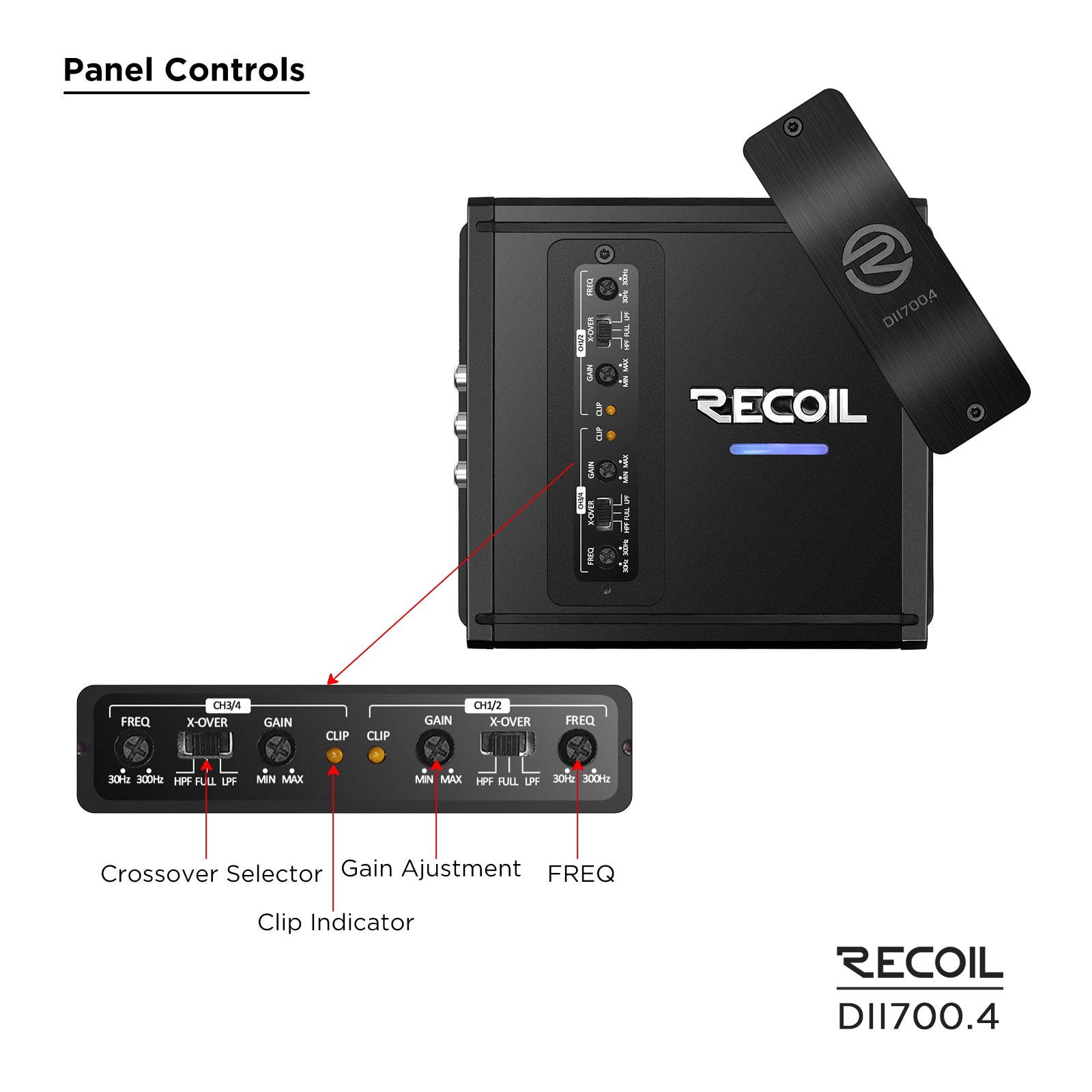

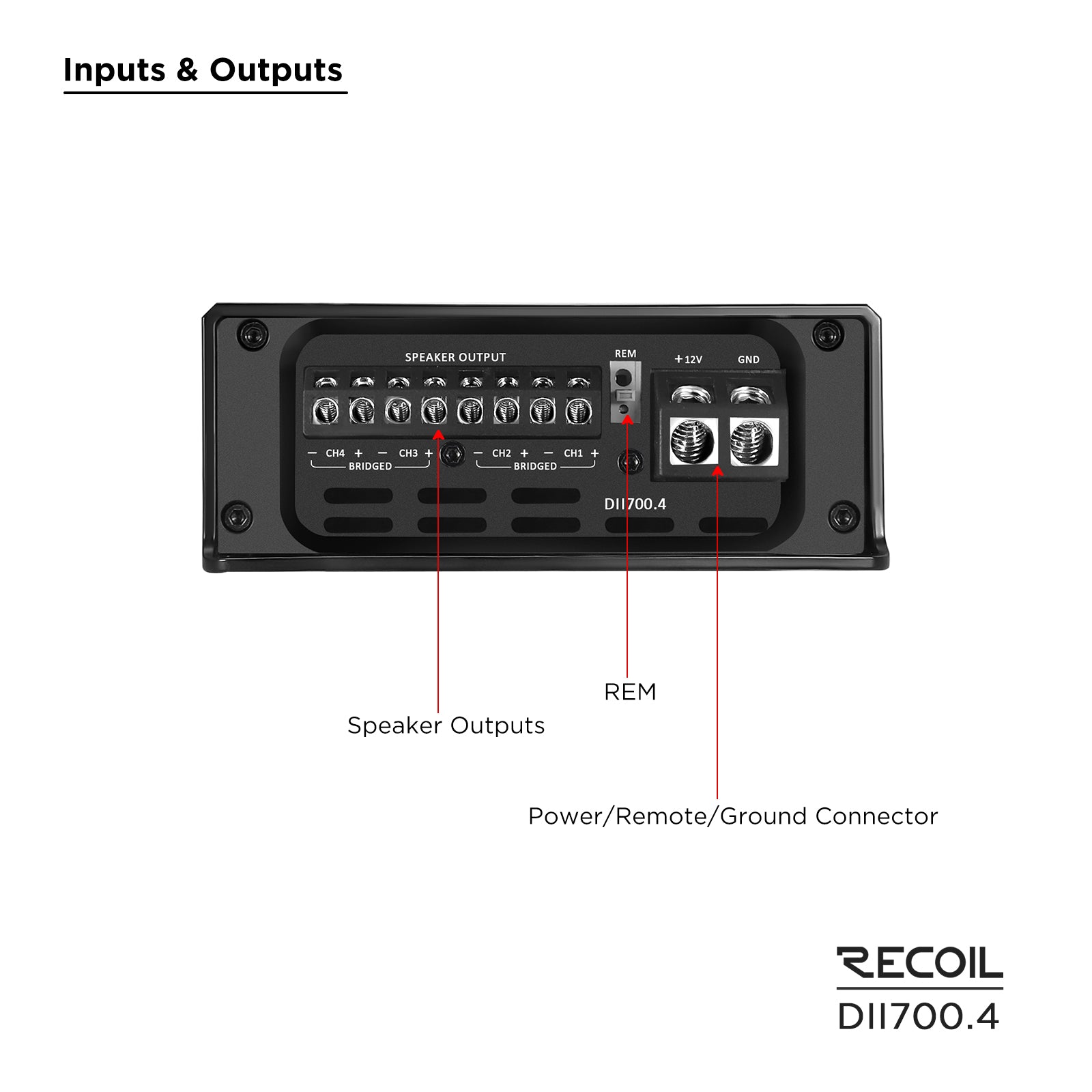

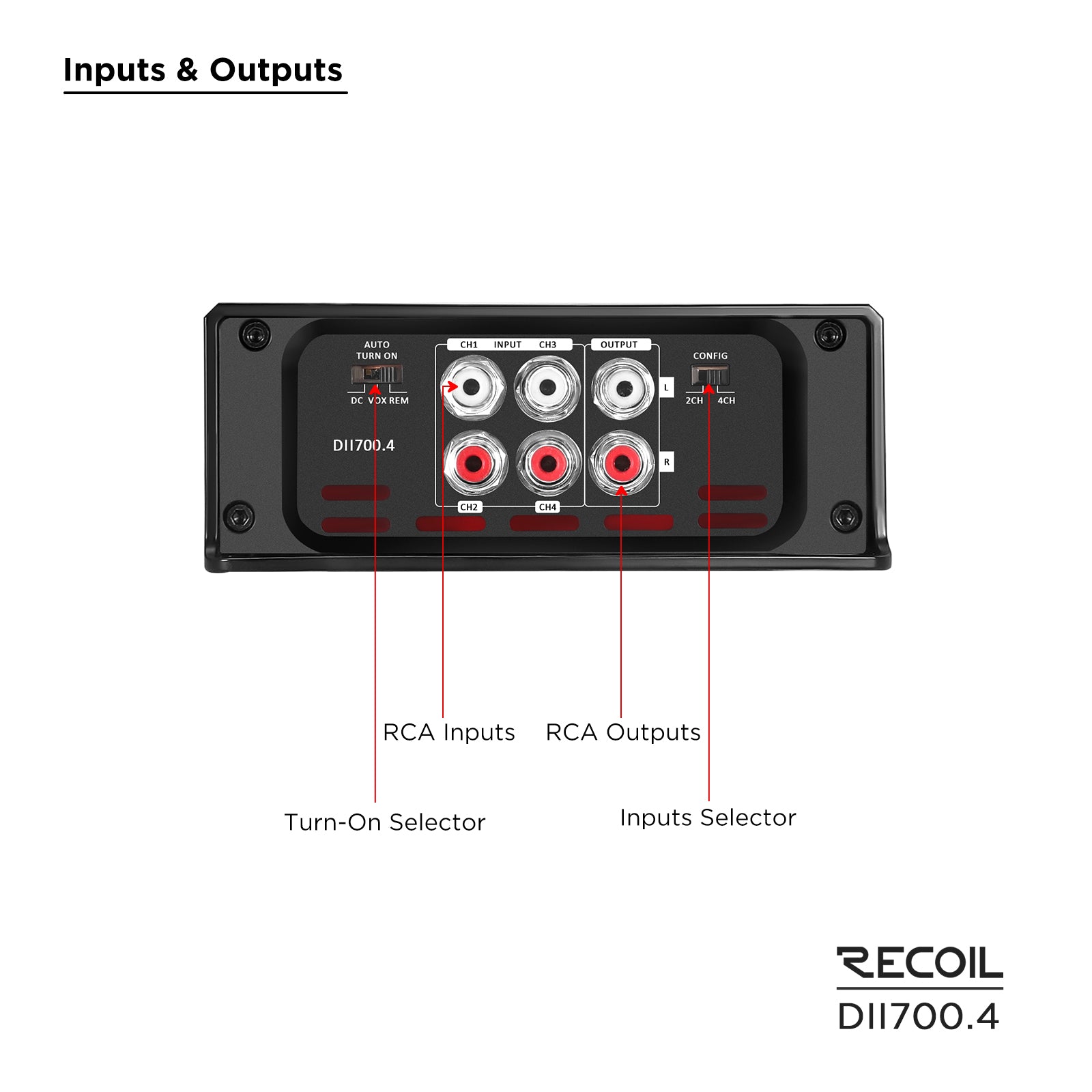

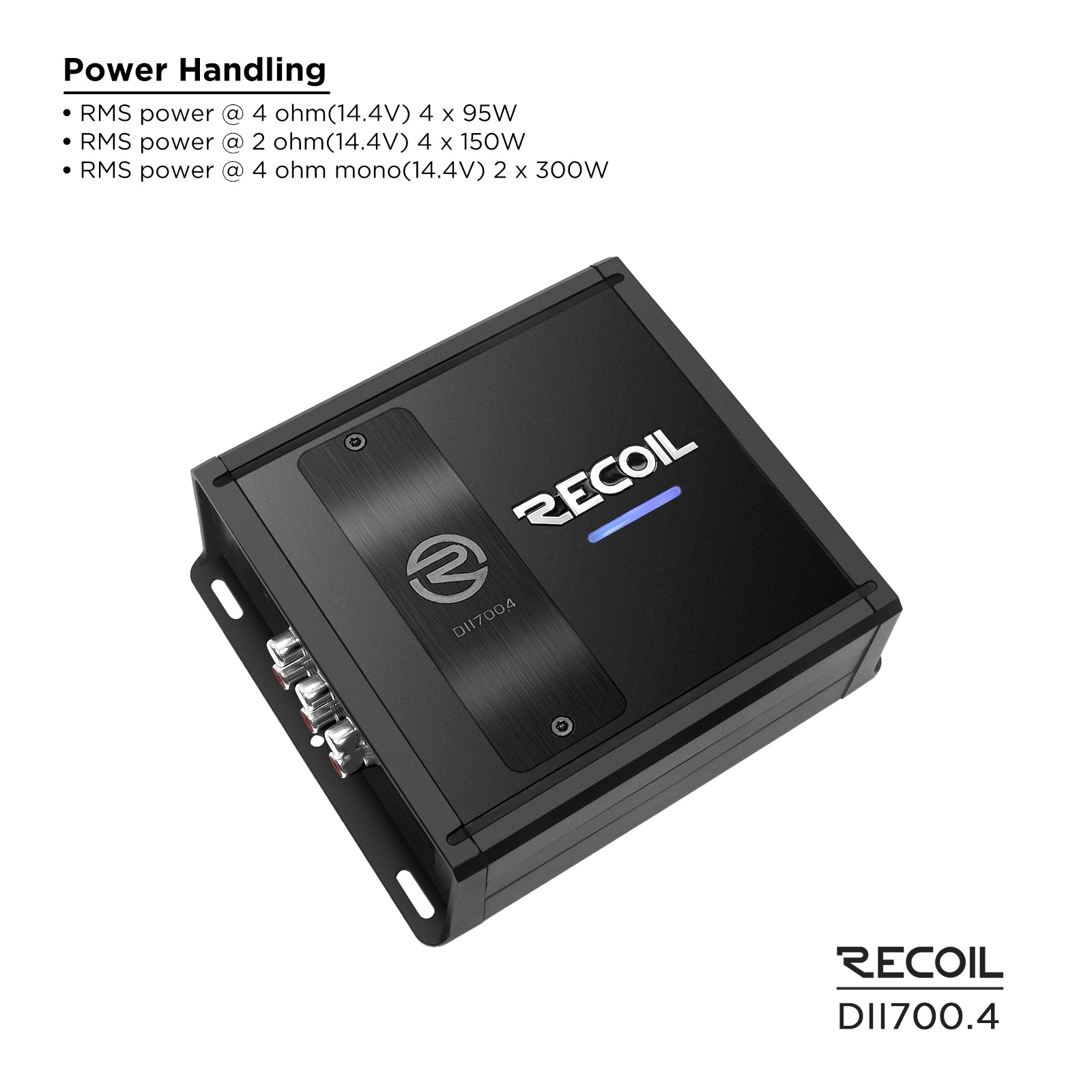

Recoil rates the amplifier at 95 watts RMS × 4 at 4 ohms, 150 watts RMS × 4 at 2 ohms, or 300 watts RMS × 2 bridged at 4 ohms. Its conformal-coated circuit board, speaker-level and RCA inputs, selectable turn-on modes, pass-through RCA outputs, and top-mounted controls support compact mobile and specialty-vehicle system layouts.
Specifications
| Model | DII700.4 |
|---|---|
| Amplifier class | Class D |
| Channels | 4 |
| RMS power at 4 ohms | 95 watts × 4 |
| RMS power at 2 ohms | 150 watts × 4 |
| Bridged RMS power at 4 ohms | 300 watts × 2 |
| Frequency response | 10 Hz–24 kHz |
| Signal-to-noise ratio | 85 dB |
| Efficiency at 4 ohms | 78% |
| Input sensitivity | 0.2–12 volts |
| High-pass filter | 30–300 Hz |
| Low-pass filter | 30–300 Hz |
| Fuse rating | 50 amps |

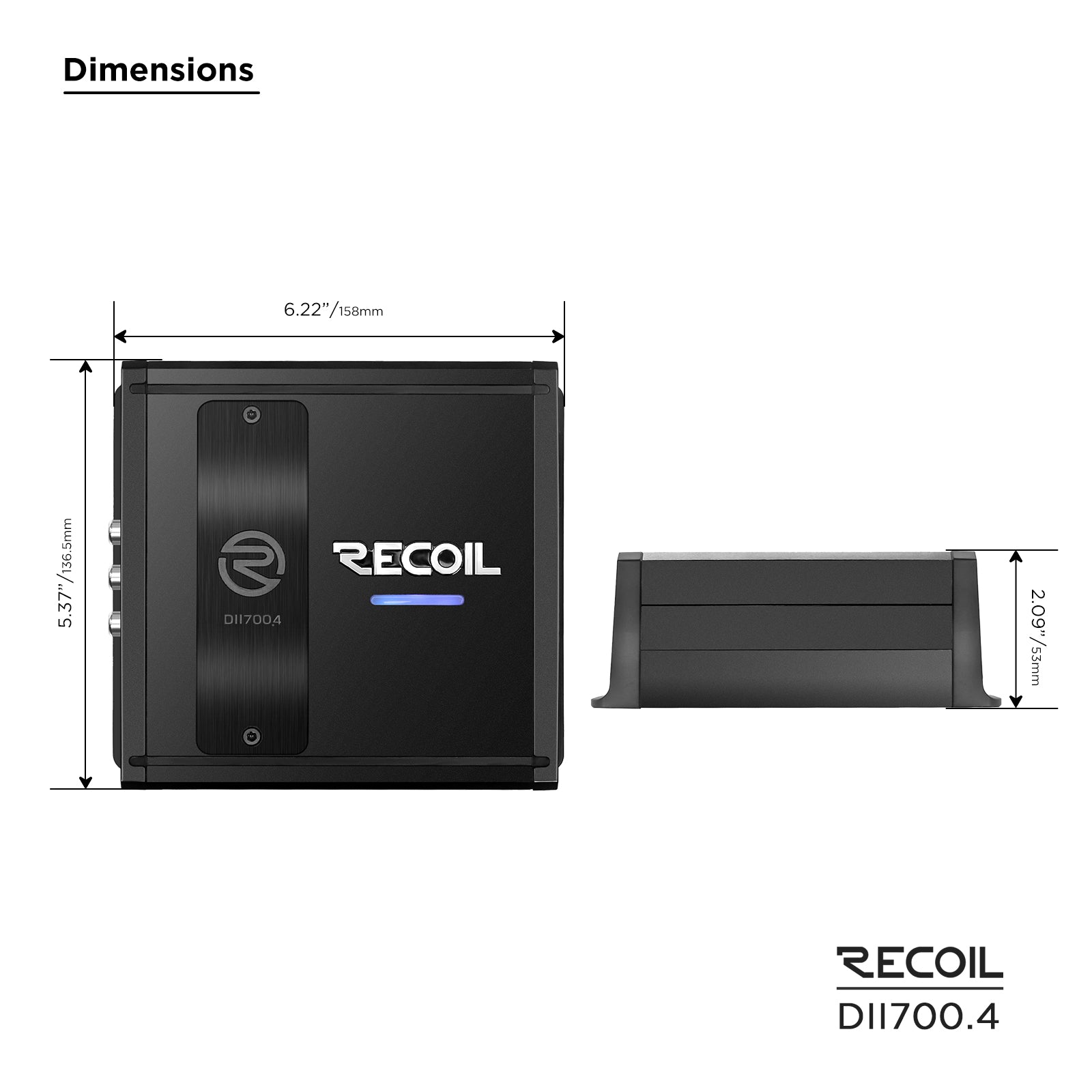

| Dimensions | 6.22 × 5.37 × 2.09 inches |
| Circuit-board protection | Conformal coated |
Confirm speaker impedance, any bridged load, power and ground cable, fuse placement, mounting airflow, and charging-system capacity before installation.
