Description
Description
The Recoil Audio PW10D4 is a 10-inch Echo Pro subwoofer with dual 4-ohm voice coils. It is designed for daily bass systems that require strong low-frequency output, flexible wiring and a compact enclosure footprint.
The subwoofer is rated for 600 watts RMS and 1,200 watts maximum power. The preserved manufacturer record identifies a competition-grade IMPP cone and a black-coated, four-layer high-temperature voice coil. The current record does not publish enclosure volume, mounting depth, cutout diameter, sensitivity, frequency response or complete Thiele/Small parameters.
Specifications
| Model | PW10D4 |
|---|---|
| Series | Echo Pro |
| Nominal diameter | 10 inches |

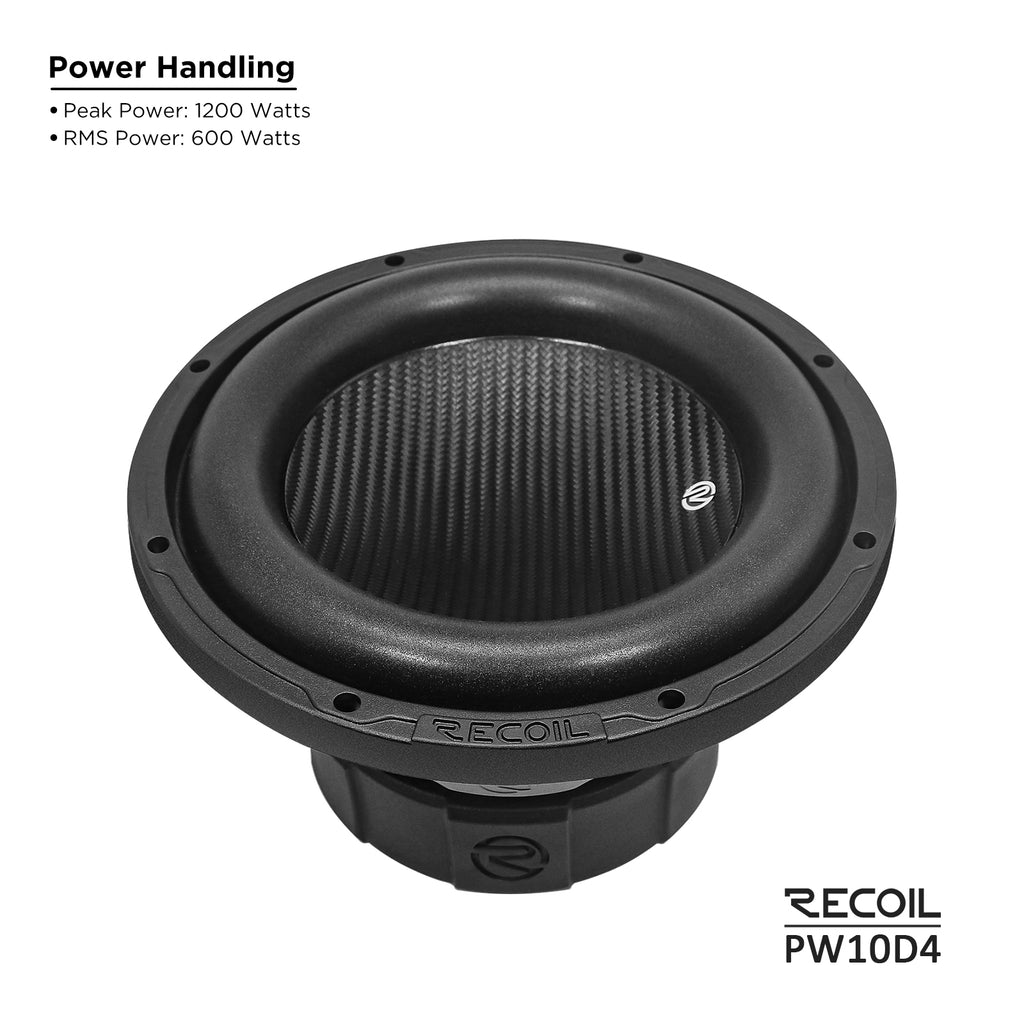

| RMS power handling | 600 watts |
| Maximum power | 1,200 watts |
| Voice-coil configuration | Dual 4 ohms |
| Voice-coil construction | Black-coated four-layer high-temperature design |
| Cone material | Competition-grade IMPP |
| Published enclosure recommendations | Not listed in the current manufacturer record |
| Published mounting depth and cutout | Not listed in the current manufacturer record |
| Published Thiele/Small parameters | Not listed in the current manufacturer record |
Features
- 600-watt RMS rating supports strong daily bass output.

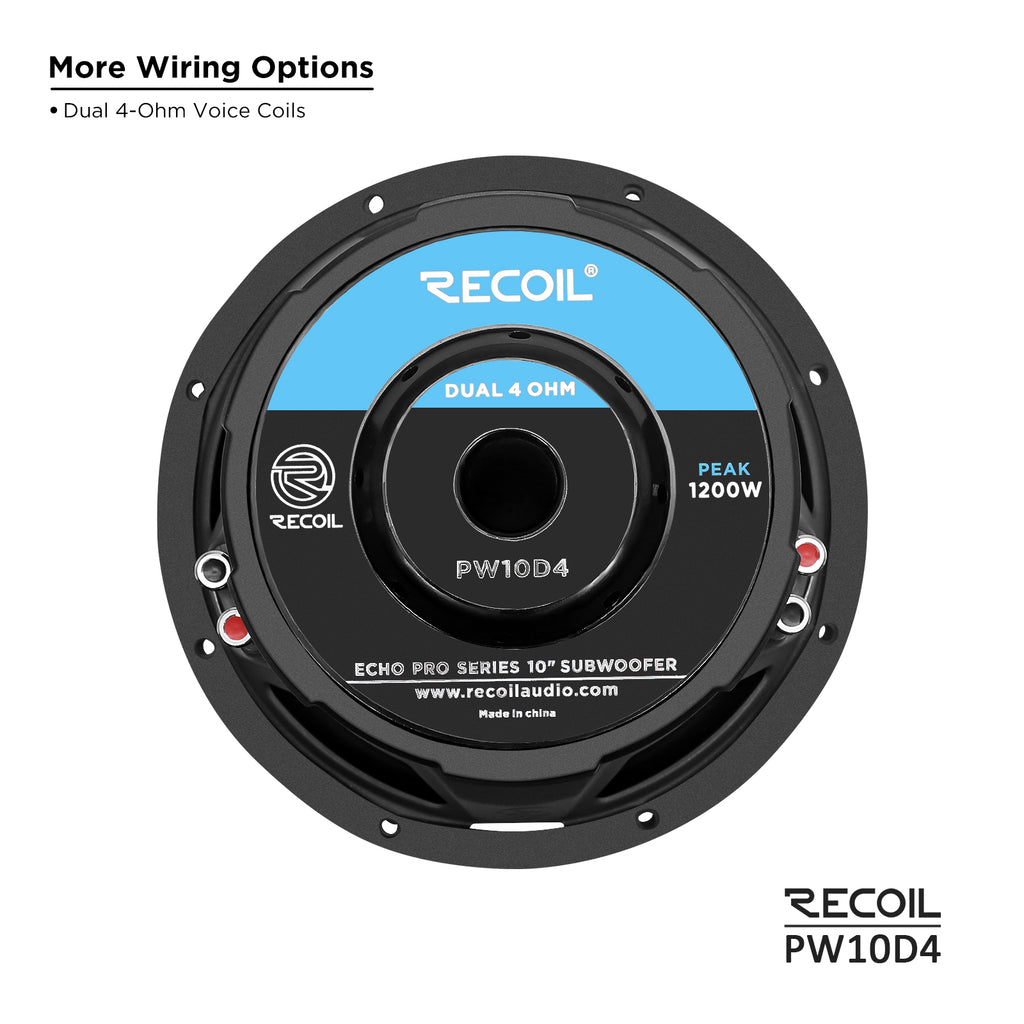

- Dual 4-ohm voice coils provide flexible system wiring.

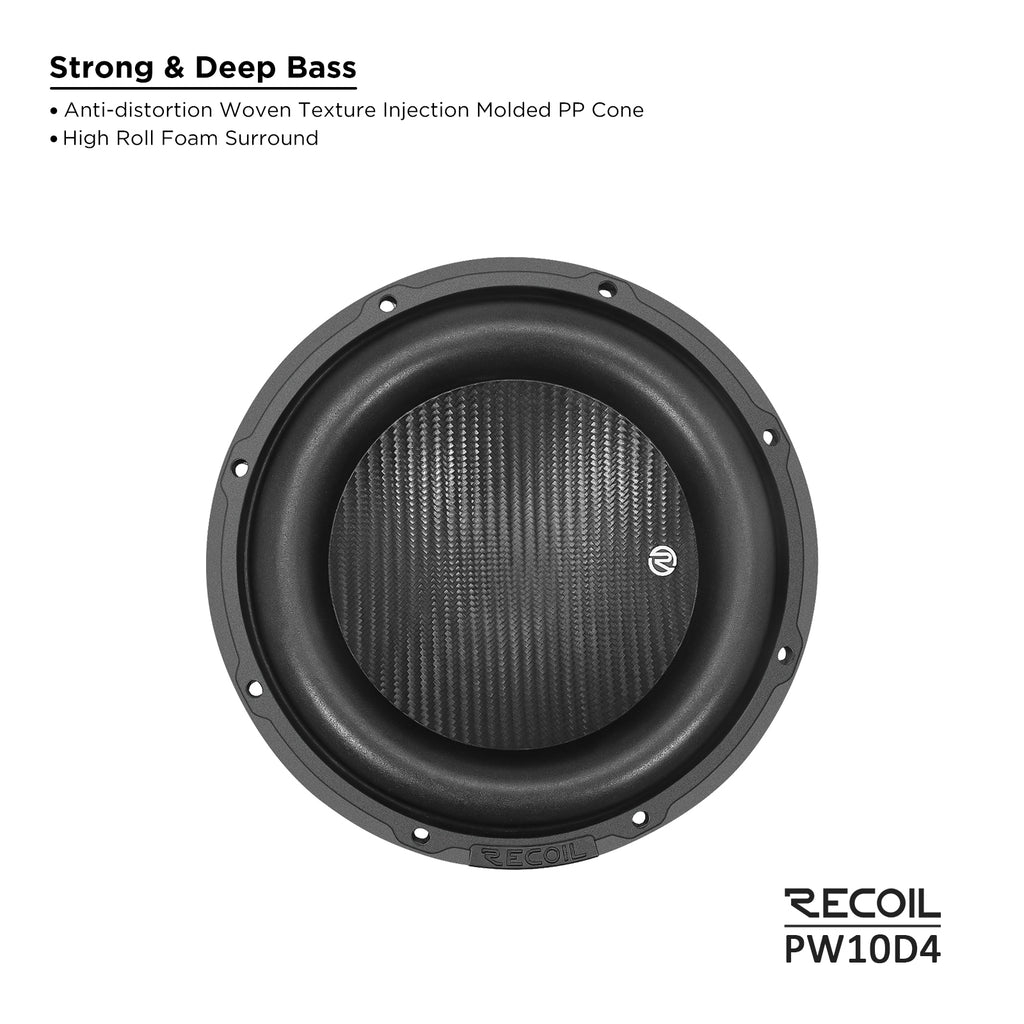

- Competition-grade IMPP cone provides a rigid low-frequency radiating surface.

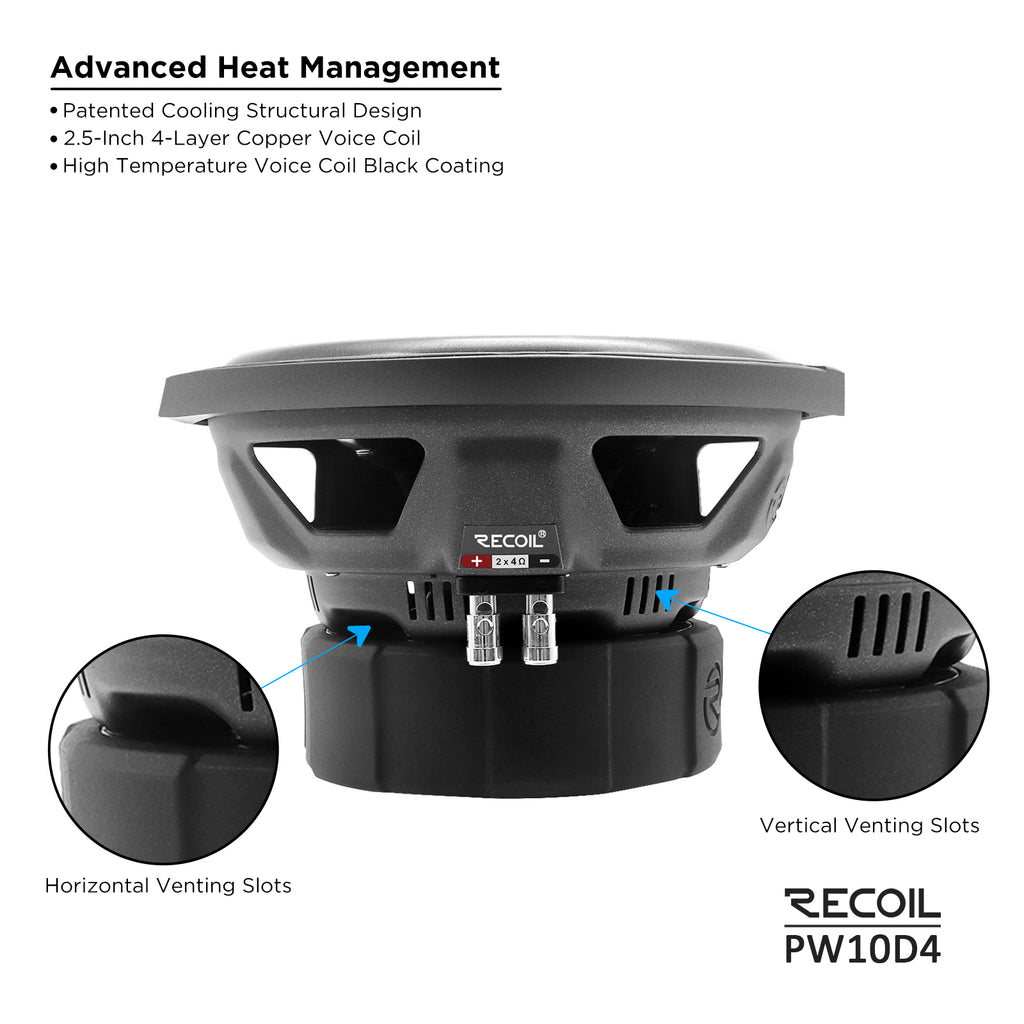

- Four-layer high-temperature voice coil is designed for thermal durability.
- Compact 10-inch format works in many car and truck enclosures.
- Requires correct enclosure design, amplifier matching and subsonic protection.
- No unpublished enclosure or dimensional specifications have been invented.
