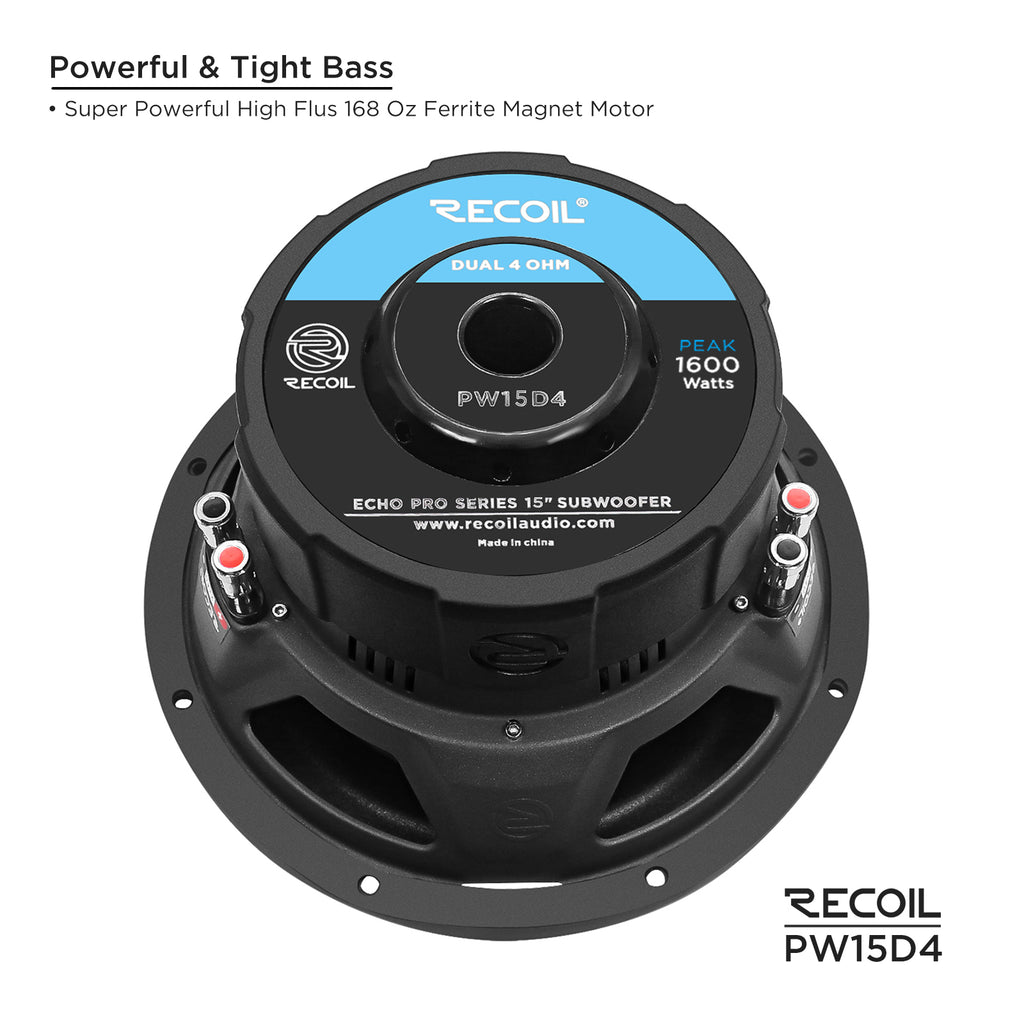

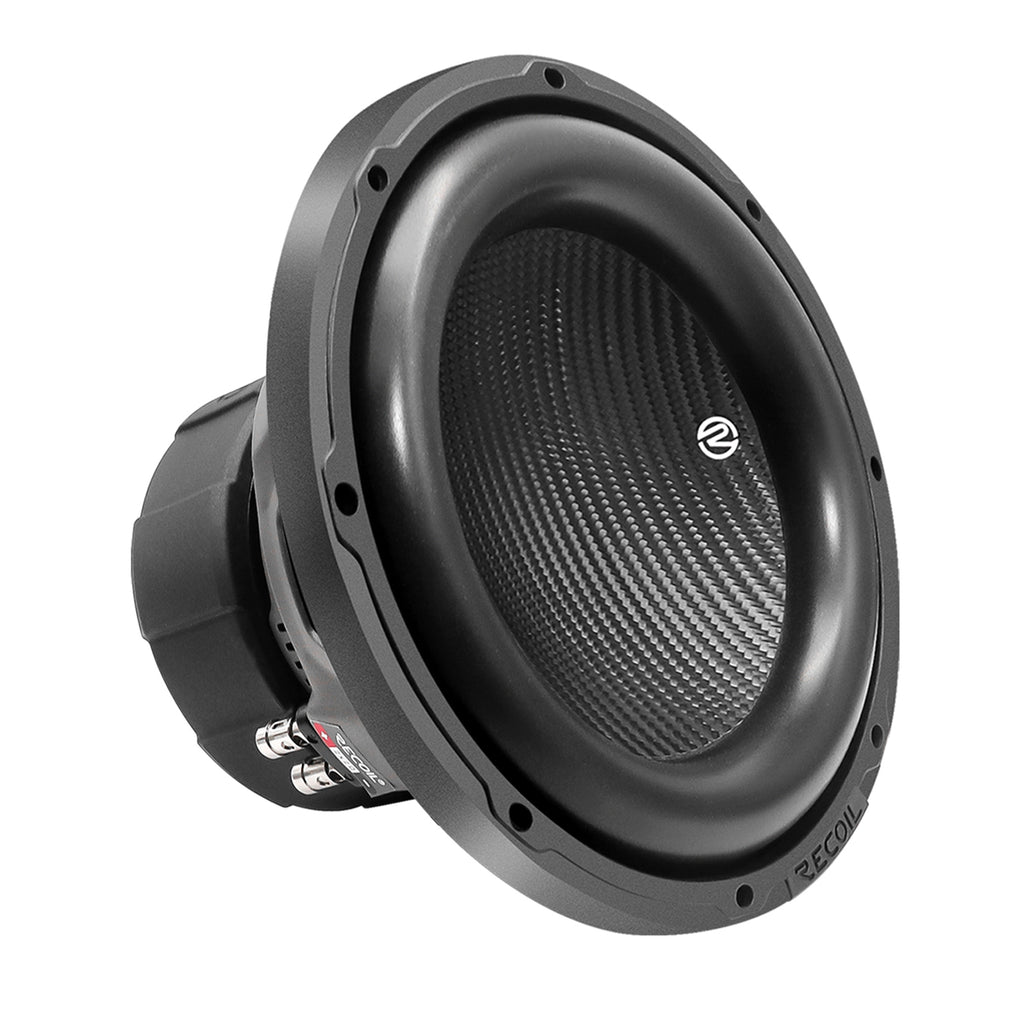

The Recoil Audio PW15D4 is a 15-inch Echo Pro subwoofer with dual 4-ohm voice coils. Its large cone area is intended for systems that prioritize low-frequency output and displacement in a properly designed enclosure.

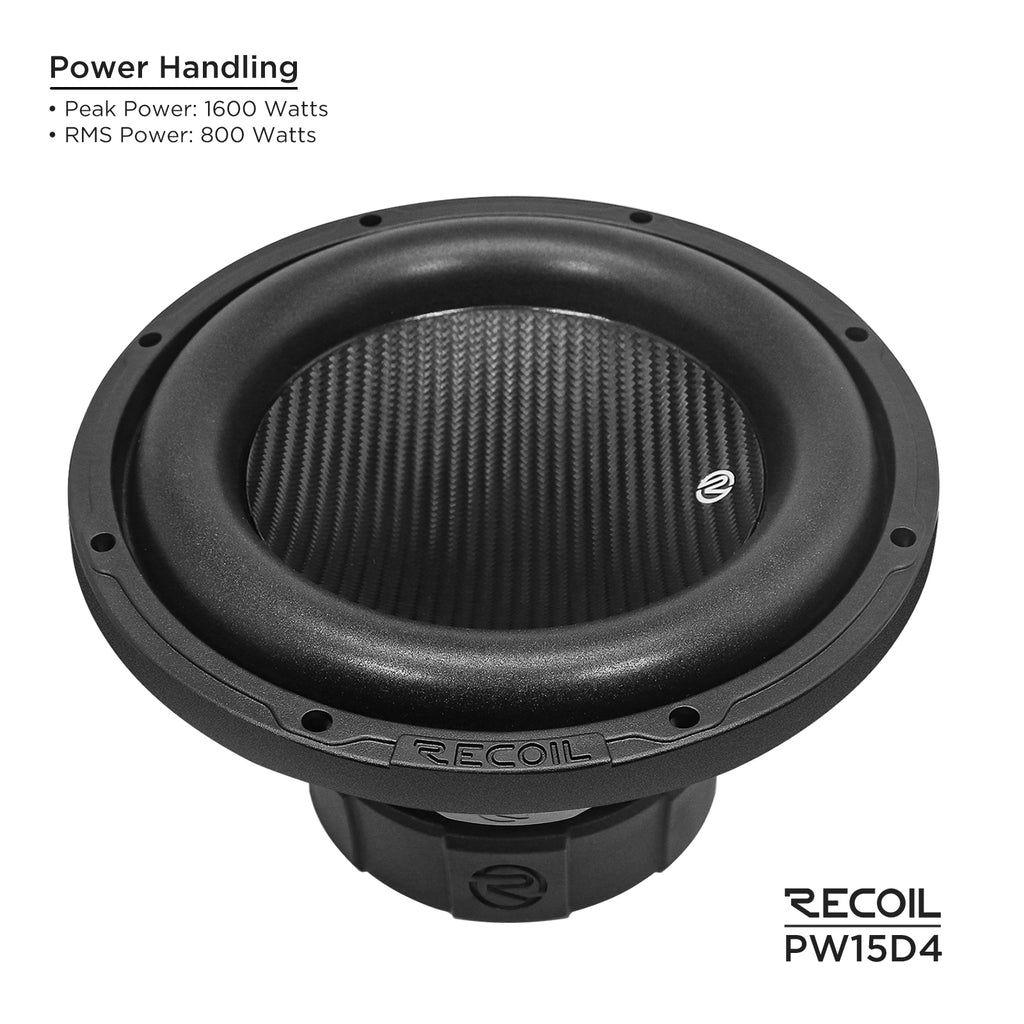

The subwoofer is rated for 800 watts RMS and 1,600 watts maximum power. The current manufacturer record confirms the size, power and dual 4-ohm configuration but does not publish cone material, voice-coil diameter, enclosure volume, mounting depth, cutout diameter, sensitivity, frequency response or complete Thiele/Small parameters.
Specifications
| Model | PW15D4 |
|---|---|
| Series | Echo Pro |
| Nominal diameter | 15 inches |
| RMS power handling | 800 watts |
| Maximum power | 1,600 watts |
| Voice-coil configuration | Dual 4 ohms |
| Published voice-coil diameter | Not listed in the current manufacturer record |
| Published cone material | Not listed in the current manufacturer record |
| Published enclosure recommendations | Not listed in the current manufacturer record |
| Published mounting depth and cutout | Not listed in the current manufacturer record |
| Published Thiele/Small parameters | Not listed in the current manufacturer record |
| System requirement | Correct enclosure, amplifier impedance, wiring and subsonic protection |
Features
- Large 15-inch cone area supports substantial low-frequency displacement.
- 800-watt RMS rating supports high-output bass systems.

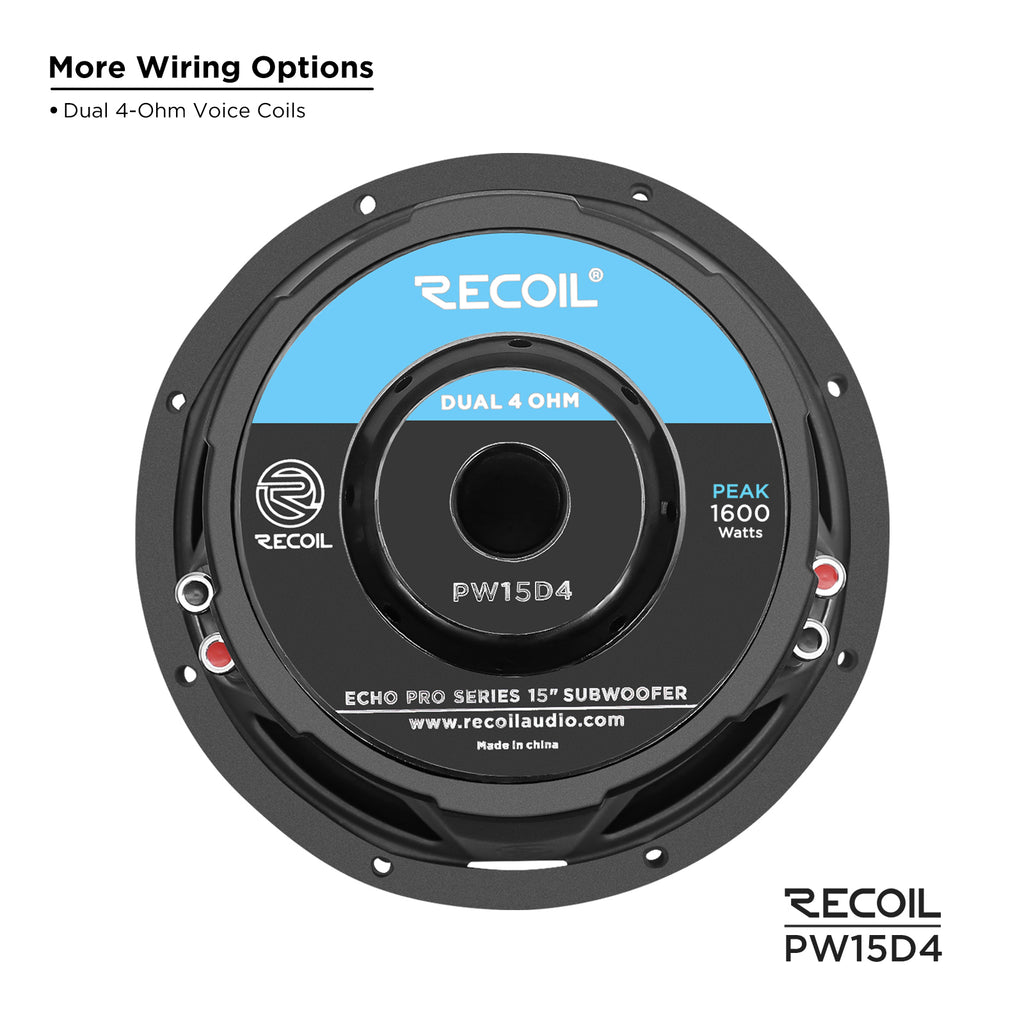

- Dual 4-ohm voice coils provide flexible wiring options.
- Suitable for systems with adequate enclosure volume and electrical support.
- Requires correct enclosure modeling, amplifier matching and subsonic protection.
- Final impedance must remain within the amplifier's safe operating range.
- No unpublished construction, enclosure or dimensional specifications have been invented.
