Description

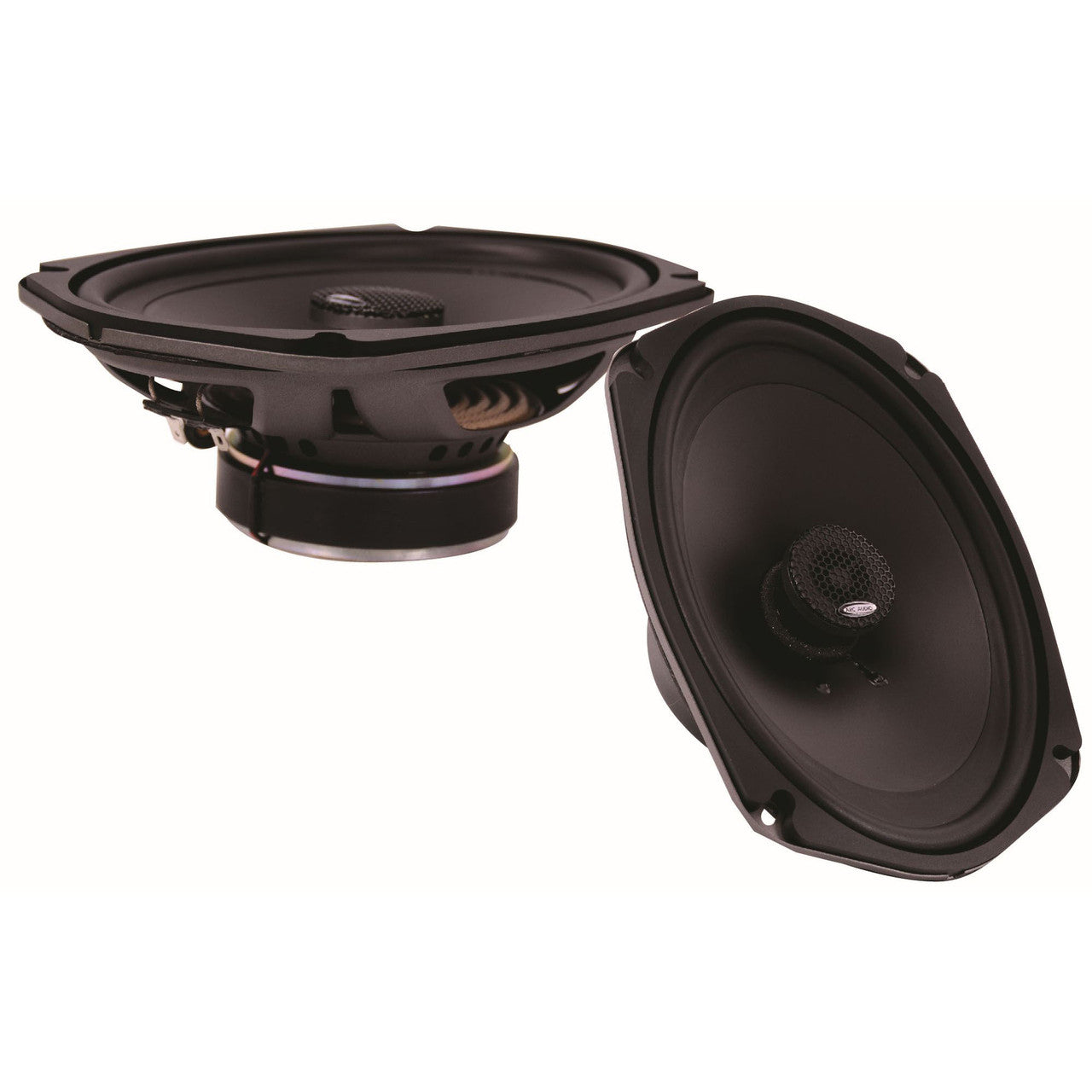

The ARC Audio X2 692 is a pair of 6x9-inch two-way coaxial speakers for factory-location replacement and custom full-range systems. Each speaker combines a mica-loaded polypropylene woofer cone with an NBR rubber surround and a 20 mm wool-damped silk-dome tweeter.
An aluminum voice-coil former, copper winding, neodymium tweeter motor and integrated crossover components support dependable operation. Front and rear sealing surfaces help the speaker couple correctly to the mounting panel.
Specifications
| Model | X2 692 |
|---|---|
| Sold as | Pair |
| Nominal size | 6 x 9 inches |
| Speaker design | Two-way coaxial |
| Woofer cone | Mica-loaded polypropylene |
| Woofer surround | NBR rubber |
| Tweeter | 20 mm wool-damped silk dome |
| Tweeter magnet | Neodymium |
| Voice-coil construction | Copper winding on an aluminum former |
| Crossover protection | Mylar capacitor and PTC device |
Features
- Large 6x9-inch cone area supports stronger midbass output than smaller factory speakers.
- Mica-loaded polypropylene cone provides a rigid, damped radiating surface.
- 20 mm silk-dome tweeter provides smooth high-frequency response.
- Integrated crossover and PTC protection support reliable operation.
- Front and rear seals reduce acoustic leakage at the mounting panel.
How SMS Uses the X2 692
The X2 692 is a Level 1 ARC Audio solution for vehicles that provide a factory 6x9-inch location and benefit from keeping the larger cone area. SMS uses it when a coaxial layout is the right packaging choice for a front or rear factory opening and the customer wants a stronger daily-driver upgrade without unnecessary fabrication.
6x9 or 6.5-Inch?
SMS does not automatically reduce a factory 6x9 opening to a 6.5-inch speaker. When the 6x9 fits the system goal, the larger cone area can provide useful midbass output. A 6.5-inch component or coaxial may still be the better choice when tweeter placement, available products, mounting geometry, or the complete system design favors it.
Common System Uses
- Factory 6x9 front or rear locations where a coaxial is appropriate.
- Rear fill behind an X2 component front stage.
- Four-channel systems powered by an X2 600.4 or another correctly matched amplifier.
- DSP-assisted daily-driver systems where factory-signal correction and system integration are required.
Installation Matters
Factory 6x9 locations vary significantly in basket clearance, mounting pattern, grille clearance, window-track depth, and adapter geometry. SMS confirms the physical fit, seals the speaker correctly to the mounting surface, verifies polarity and source signal, and chooses amplification around the complete system.
