Description

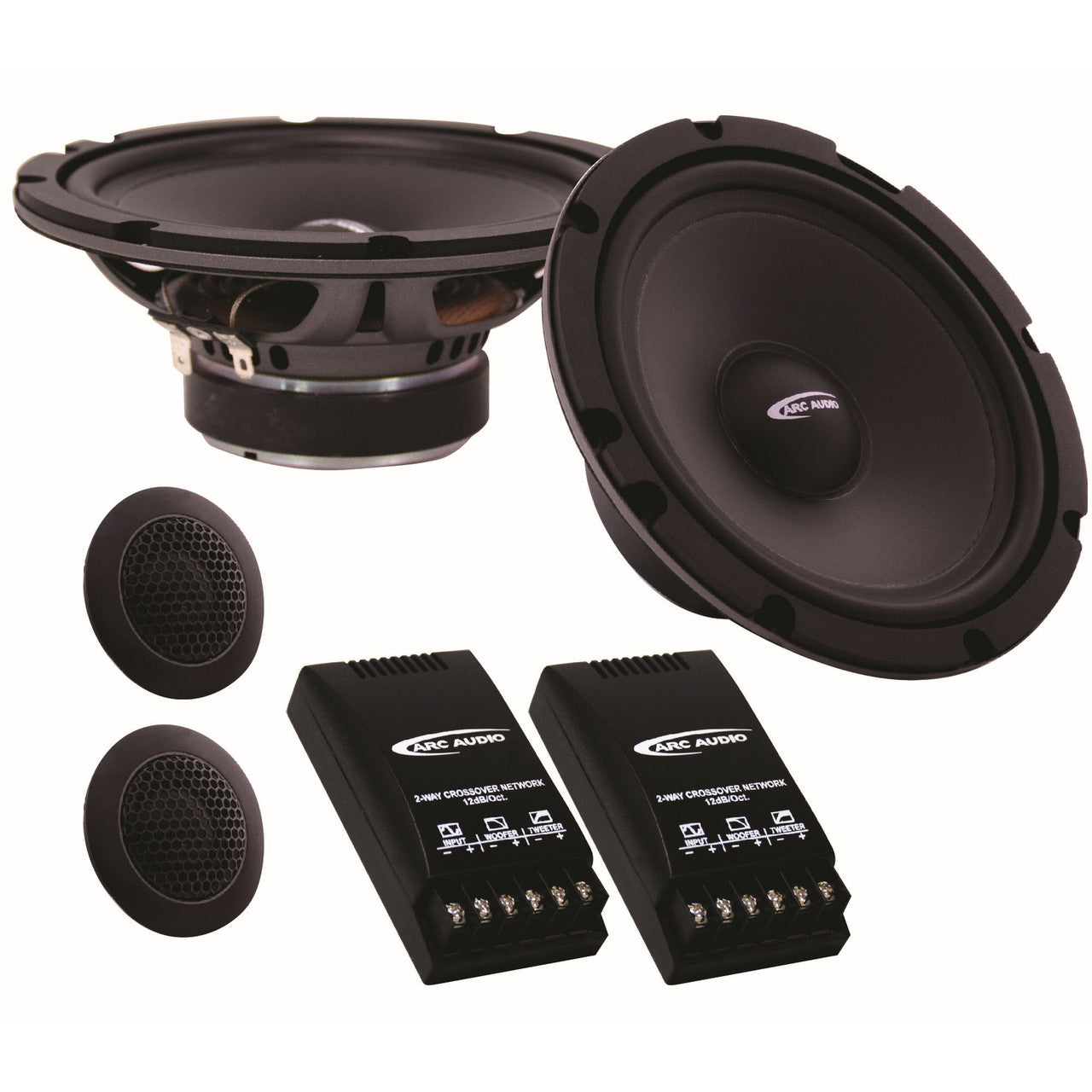

The ARC Audio X2 6.2 is a two-way component speaker system built around a pair of 6.5-inch woofers, separate 27 mm soft-dome tweeters and matched passive crossover networks.
The woofers use mica-loaded polypropylene cones and NBR rubber surrounds. The separate tweeters allow placement and aiming for improved staging, while the 12 dB/octave crossover networks divide frequency duties and include bridge-type tweeter protection with Mylar capacitors.
System components
| Model | X2 6.2 |
|---|---|
| Woofer quantity | Pair |
| Woofer size | 6.5 inches |
| Woofer cone | Mica-loaded polypropylene |
| Woofer surround | NBR rubber |
| Woofer cutout | 141.5 mm |
| Woofer mounting depth | Less than 2.4 inches |
| Tweeter quantity | Pair |
| Tweeter | 27 mm soft dome |
| Crossover quantity | Pair |
| Crossover slope | 12 dB/octave |
| Tweeter protection | Bridge protection with Mylar capacitors |
Features
- Separate woofer and tweeter placement supports improved imaging.
- Mica-loaded polypropylene cones combine rigidity with damping.
- NBR surrounds support controlled cone movement.
- 27 mm soft-dome tweeters provide smooth high-frequency reproduction.
- Matched passive crossovers simplify conventional two-way installation.
How SMS Uses the X2 6.2
The X2 6.2 is a core Level 1 ARC Audio front-stage option for customers who want a meaningful daily-driver upgrade without immediately moving into a fully active AS or RS system. Its separate tweeter and passive crossover allow better front-stage placement than a coaxial while keeping channel count and system complexity reasonable.
Best System Fits
- Factory-location front speaker upgrades where a separate tweeter location is available.
- Passive front stages powered by an ARC X2 amplifier or another correctly matched amplifier.
- Systems that may add DSP for factory-signal correction, EQ, delay, and subwoofer integration while retaining the passive component crossovers.
- Daily-driver systems paired with X2 coaxials in rear locations and a dedicated subwoofer system.
X2 Does Not Mean Basic
A Level 1 X2 system can still include proper OEM integration, sound treatment, rigid adapters, clean amplification, DSP, and a tuned subwoofer system. The X2 level describes the speaker platform and system direction—not a shortcut on installation quality.
Common Pairings
- X2 602 rear or secondary factory-location speakers where 6.5-inch coaxials fit.
- X2 692 where the vehicle uses a 6x9-inch factory location.
- X2 600.4 or another appropriately powered ARC amplifier for a conventional speaker system.
- X2 800.8 DSP, Blackbird, or stand-alone DSP when the factory signal or tuning goal requires processing.
Installation Matters
SMS confirms cutout, depth, adapter geometry, window clearance, tweeter mounting, door sealing, polarity, amplifier power, and the factory signal before finalizing the system. A properly installed X2 6.2 system will outperform a more expensive speaker installed into a weak mounting or poor source signal.
